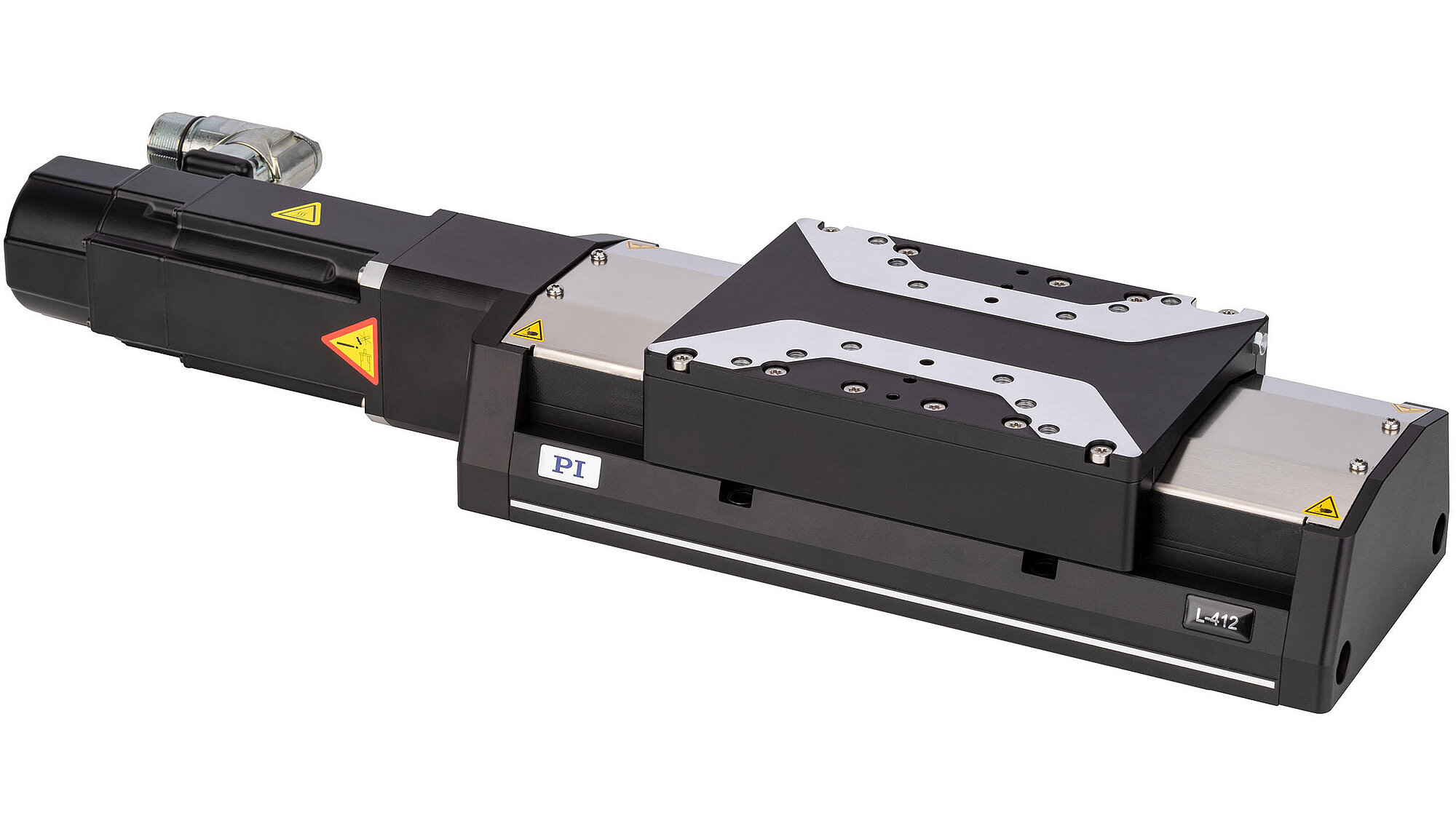

L-412 High-Load Linear Stage

High Performance and Cost Efficiency, Drive Screw

L-412 High-Load Linear Stage
Product Description Specifications Downloads Quote / Order
  • Width 116 mm, travel range to 610 mm
  • Precision ball screw
  • Incremental and absolute rotary encoders
  • Additional linear encoder options
  • Precision recirculating ball bearings, load capacity to 400 N
  • Covering strip on the side for protection against particles

Reference-class linear stage

A new linear stage family with precision balls screws expands PIs product portfolio for industrial solutions. High-performance synchronous servo motors, heavy-duty recirculating ball bearings, and precision rotary and linear encoders are used. The optional holding brake allows use as Z axis. The ball screw can be relubricated from the outside without disassembling to ensure high reliability and long lifetimes. It is also possible to integrate into a customer's central lubrication system. The covering strip on the side and the purge air connection prevent contamination by particles.

Pioneering design

Compared to the competition, the recirculating ball bearings of the L-412 series offer a higher load capacity and allow higher dynamics. The high resolution of the motors allow improved tracking performance, smaller tracking error, and improved settling times.

Options

  • Holding brake (L-412.xxxxxxB)
  • Various rotary and linear encoders, absolute and incremental

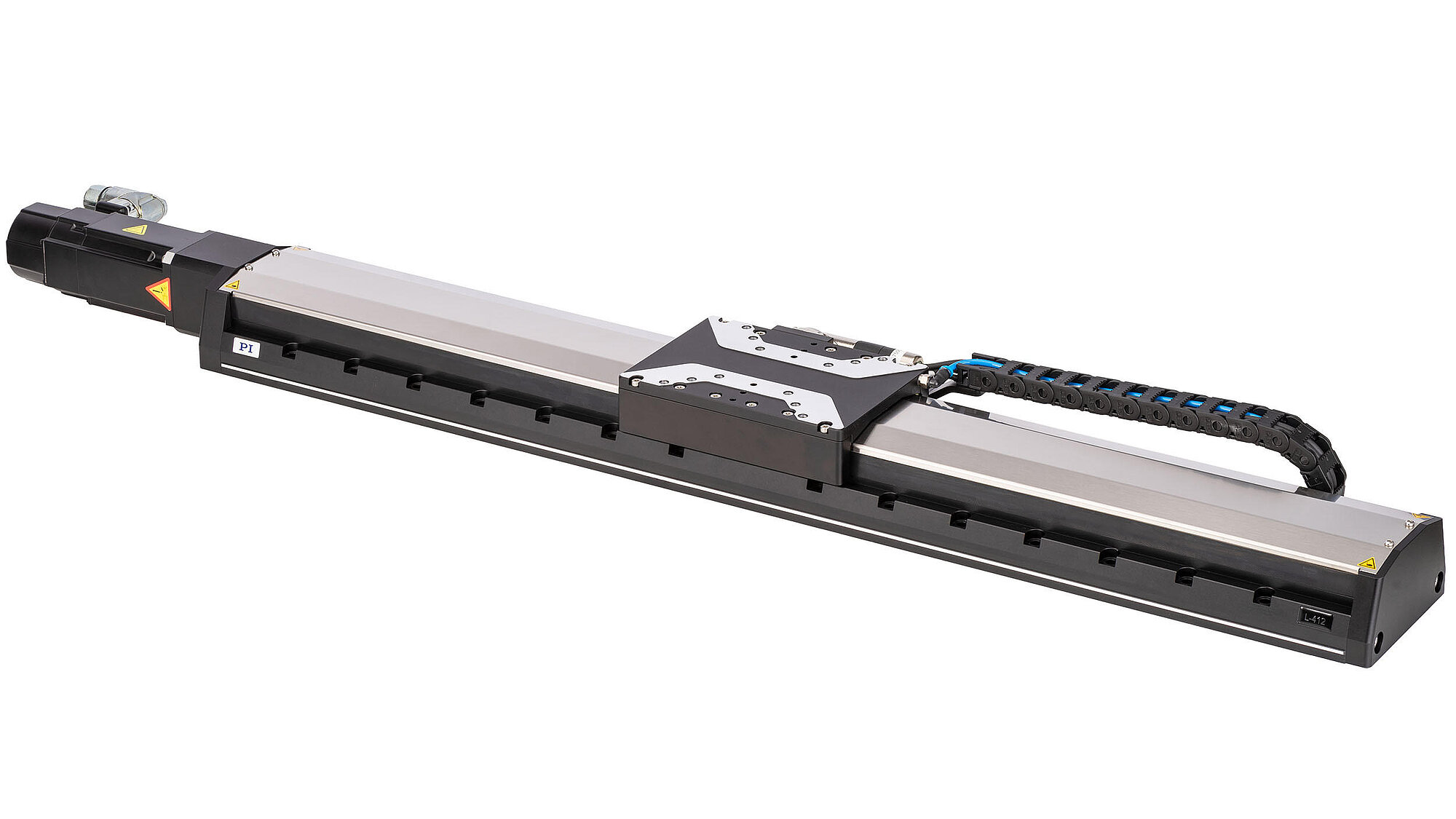

  • Versions with linear encoder with optional drag chain and connection box (L-412.xxxxxxE1) or without drag chain (L-412.xxxxxxE0). L-412.xxx212 is only available in conjunction with drag chain option E1.
  • On request: Folded drivetrain with belt drive. This modification reduces the overall length.
  • On request: Calibration and certification

Synchronous servo motor

These motors have high positioning accuracy and high overload capacity over a large rotation speed range. High torque and low inertia ensure the high dynamics of the drives. The long lifetime, high performance, and robustness of these motors allow excellent results in industrial automation applications.

Application fields

Laser cutting, Electronics production, AOI (Automatic Optical Inspection), Automation. Applications with high demands on dynamics, precision, smooth motion, short settling times, and low tracking error.

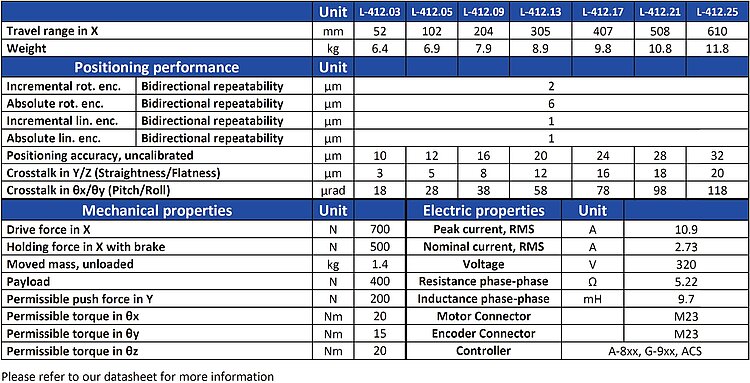

Specifications

Datasheet L-412

Version / Date
2018-03-27
Version / Date
2018-03-27
Version / Date
2018-07-25
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 992 KB

Downloads

Datasheet

Datasheet L-412

Version / Date
2018-03-27
Version / Date
2018-03-27
Version / Date
2018-07-25
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 992 KB

Documentation

User Manual L412M0001

L-412.179232B High-Load Linear Stage
Version / Date
2018-07-17
Version / Date
2018-07-17
Document language
pdf - 7 MB
pdf - 7 MB

User Manual L412M0002

L-412.059232B High-Load Linear Stage
Version / Date
2018-07-19
Version / Date
2018-09-17
Document language
pdf - 7 MB
pdf - 7 MB

User Manual L412M0003

L-412.099211E1 High-Load Linear Stage
Version / Date
2018-11-22
Version / Date
2018-11-22
Document language
pdf - 4 MB
pdf - 4 MB

User Manual L412M0005

L-412.039232B High-Load Linear Stage
Version / Date
2018-11-21
Version / Date
2018-11-21
Document language
pdf - 4 MB
pdf - 4 MB

User Manual L412M0007

L-412.059211E1 High-Load Linear Stage
Version / Date
2018-11-22
Version / Date
2018-11-22
Document language
pdf - 4 MB
pdf - 4 MB

3-D Models

L-412 3-D model

Version / Date
2018-06-04

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

L-412.039025E0 NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, synchronous servo motor, to 320 V
L-412.039025E0B NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, holding brake, synchronous servo motor, to 320 V
L-412.039025E1 NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.039025E1B NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.039054 NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.039054B NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.039211E0 NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, synchronous servo motor, to 320 V
L-412.039211E0B NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, holding brake, synchronous servo motor, to 320 V
L-412.039211E1 NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, synchronous servo motor, to 320 V
L-412.039211E1B NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.039212E1 NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.039212E1B NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.039232 NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., synchronous servo motor, to 320 V
L-412.039232B NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.039244 NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.039244B NEW!
High-load linear stage, 52 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.059025E0 NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, synchronous servo motor, to 320 V
L-412.059025E0B NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, holding brake, synchronous servo motor, to 320 V
L-412.059025E1 NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.059025E1B NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.059054 NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.059054B NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.059211E0 NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, synchronous servo motor, to 320 V
L-412.059211E0B NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, holding brake, synchronous servo motor, to 320 V
L-412.059211E1 NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, synchronous servo motor, to 320 V
L-412.059211E1B NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.059212E1 NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.059212E1B NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.059232 NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., synchronous servo motor, to 320 V
L-412.059232B NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.059244 NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.059244B NEW!
High-load linear stage, 102 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.099025E0 NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, synchronous servo motor, to 320 V
L-412.099025E0B NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, holding brake, synchronous servo motor, to 320 V
L-412.099025E1 NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.099025E1B NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.099054 NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.099054B NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.099211E0 NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, synchronous servo motor, to 320 V
L-412.099211E0B NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, holding brake, synchronous servo motor, to 320 V
L-412.099211E1 NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, synchronous servo motor, to 320 V
L-412.099211E1B NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.099212E1 NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.099212E1B NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.099232 NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., synchronous servo motor, to 320 V
L-412.099232B NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.099244 NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.099244B NEW!
High-load linear stage, 204 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.139025E0 NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, synchronous servo motor, to 320 V
L-412.139025E0B NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, holding brake, synchronous servo motor, to 320 V
L-412.139025E1 NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.139025E1B NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.139054 NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.139054B NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.139211E0 NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, synchronous servo motor, to 320 V
L-412.139211E0B NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, holding brake, synchronous servo motor, to 320 V
L-412.139211E1 NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, synchronous servo motor, to 320 V
L-412.139211E1B NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.139212E1 NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.139212E1B NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.139232 NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., synchronous servo motor, to 320 V
L-412.139232B NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.139244 NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.139244B NEW!
High-load linear stage, 305 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.179025E0 NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, synchronous servo motor, to 320 V
L-412.179025E0B NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, holding brake, synchronous servo motor, to 320 V
L-412.179025E1 NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.179025E1B NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.179054 NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.179054B NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.179211E0 NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, synchronous servo motor, to 320 V
L-412.179211E0B NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, holding brake, synchronous servo motor, to 320 V
L-412.179211E1 NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, synchronous servo motor, to 320 V
L-412.179211E1B NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.179212E1 NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.179212E1B NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.179232 NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., synchronous servo motor, to 320 V
L-412.179232B NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.179244 NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.179244B NEW!
High-load linear stage, 407 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.219025E0 NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, synchronous servo motor, to 320 V
L-412.219025E0B NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, holding brake, synchronous servo motor, to 320 V
L-412.219025E1 NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.219025E1B NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.219054 NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.219054B NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.219211E0 NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, synchronous servo motor, to 320 V
L-412.219211E0B NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, holding brake, synchronous servo motor, to 320 V
L-412.219211E1 NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, synchronous servo motor, to 320 V
L-412.219211E1B NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.219212E1 NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.219212E1B NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.219232 NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., synchronous servo motor, to 320 V
L-412.219232B NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.219244 NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.219244B NEW!
High-load linear stage, 508 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.259025E0 NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, synchronous servo motor, to 320 V
L-412.259025E0B NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, holding brake, synchronous servo motor, to 320 V
L-412.259025E1 NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.259025E1B NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.259054 NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.259054B NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (multi-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.259211E0 NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, synchronous servo motor, to 320 V
L-412.259211E0B NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, holding brake, synchronous servo motor, to 320 V
L-412.259211E1 NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, synchronous servo motor, to 320 V
L-412.259211E1B NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.259212E1 NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, synchronous servo motor, to 320 V
L-412.259212E1B NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution, drag chain, holding brake, synchronous servo motor, to 320 V
L-412.259232 NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., synchronous servo motor, to 320 V
L-412.259232B NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, incremental rotary encoder with A/B quadrature signal transmission, 20000 counts/rev., holding brake, synchronous servo motor, to 320 V
L-412.259244 NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., synchronous servo motor, to 320 V
L-412.259244B NEW!
High-load linear stage, 610 mm travel range, 116 mm width, 400 N load capacity, absolute rotary encoder (single-turn) with EnDat 2.1 signal transmission, 8192 counts/rev., holding brake, synchronous servo motor, to 320 V
