Redesigned Range of Compact, Piezo-Based Objective Positioning Systems. Focus on: High Dynamics, Large Travel Ranges, and Improved Usability.

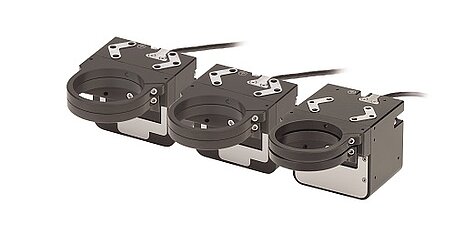

At the heart of the new PIFOC® portfolio are three systems that differ in their travel ranges: 100 µm, 400 µm, or 800 µm. Thanks to a few constructional changes, such as optimized levers and steel mounts, major improvements of the dynamic properties could be achieved. Additionally, for the first time a vertical positioner with an 800 µm travel range is also available.
Simplified Handling
The handling of the PIFOCs was also optimized. The new clamp ring only puts slight restrictions on the original focus displacement in the Z direction of the focus knob. For a lower number of variants, the largest possible diameter was chosen for the aperture. A set of adapter rings makes it easy to screw in different objectives of a size of up to M34.
Small Bending Radii of the Cables and Improved Strain Relief
The rotation, which is repeatedly carried out at the revolving nosepiece when changing the magnification, puts mechanical strain on the signal and current carrying cable. A new sheathing of the cable now makes much tighter bending radii possible; the new strain relief reliably prevents damage of the cable entry at the PIFOC® housing.
All new PIFOCs have been equipped with D-sub connectors as a standard and are so compatible with PI digital controllers. ID chips are integrated into the connectors. These store the servo and linearization parameters determined during calibration. The autocalibration function uses this data each time the controller is switched on. In this way, the overall system does not have to be recalibrated when one single PIFOC or controller is exchanged.
Overview: Essential Features
| Model | Characteristic | |||
| Travel Range (closed loop) | Step&Settle (10% step. 1% error band, @ 150 g load) | Resonant Frequency (@ 150 g load) | Minimum Incremental Motion | |
| P-725.1CDE2 | 100 µm | 14 ms | 290 Hz | 1 nm |
| P-725.4CDE2 | 400 µm | 22 ms | 175 Hz | 4 nm |
| P-725.8CDE2 | 800 µm | 39 ms | 110 Hz | 5 nm |
