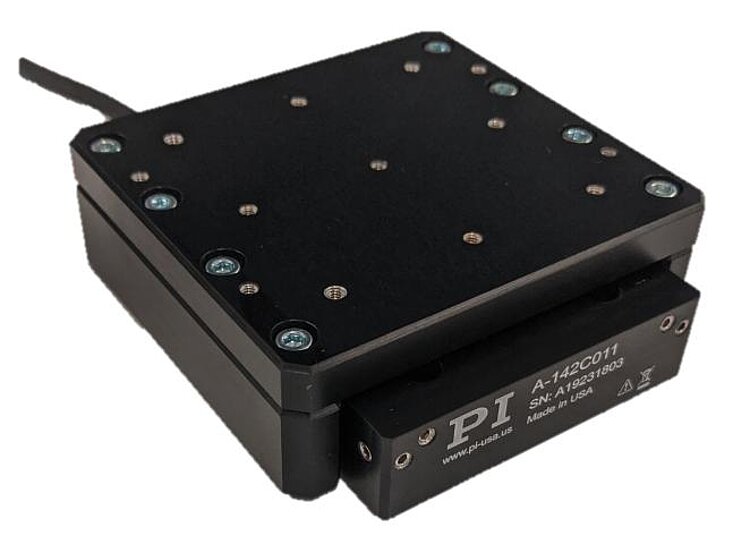

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting

A-142 PIglide Voice Coil Linear Stage with Air Bearings
Product Description Specifications Downloads Quote / Order
  • Size of the motion platform 75 mm × 80 mm
  • Low overall height of 27 mm
  • Travel range to 10 mm
  • Load capacity to 3 kg
  • Velocity to 450 mm/s
  • Acceleration to 20 m/s

Product overview

Thanks to a compact high-performance linear motor with voice coil drive and air-bearing guides, the A-142 offers maximum precision for high dynamic applications. The combination of the noncontact components results in a frictionless motion platform that offers top performance, quality, and lifetime.

Accessories and options

  • PIglide filter and air preparation kits
  • Pneumatic counterbalance for vertical mounting

Application fields

The linear stage is ideally suited for high-precision applications, such as metrology, photonics alignment systems, optics positioning, and scanning. The noncontact design is ideal for cleanroom applications. Electrical cables are not moved.

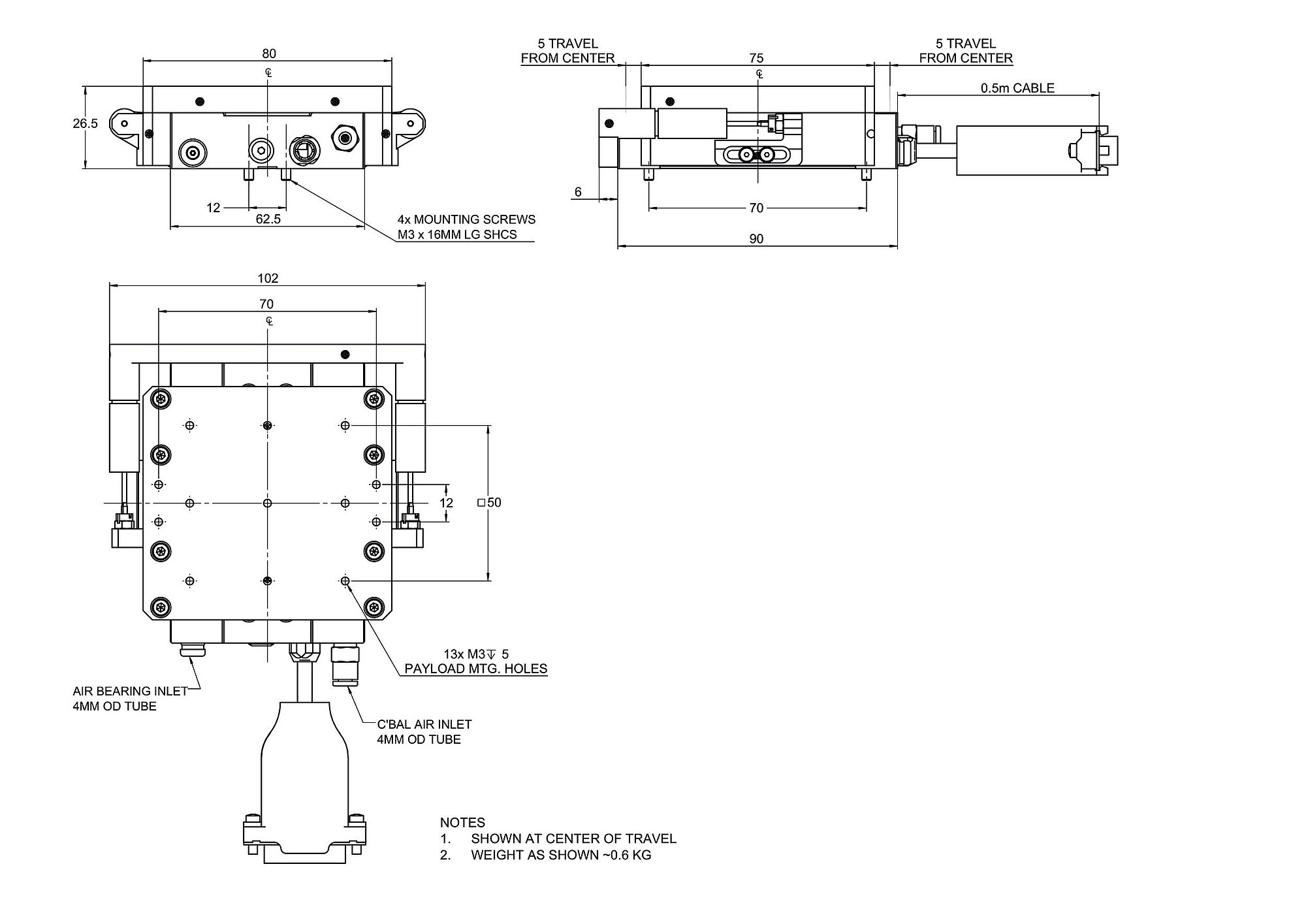

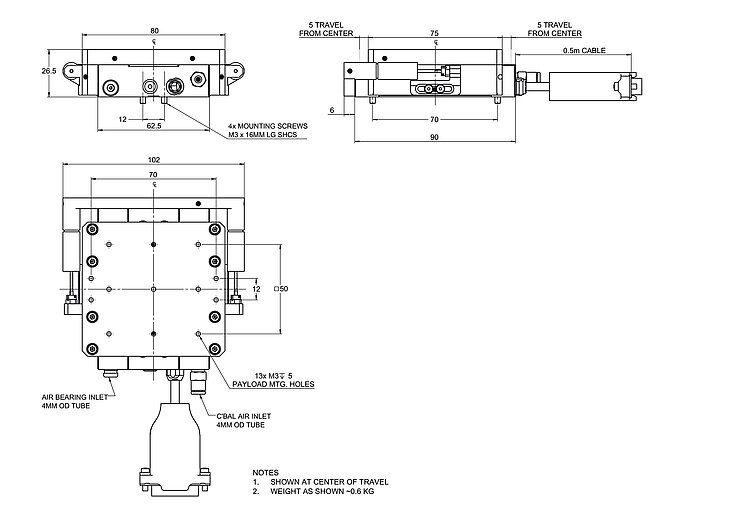

Specifications

Datasheet

Datasheet A-142

Version / Date
2021-03-22
Version / Date
2021-03-22
Document language
pdf - 576 KB
pdf - 582 KB

Downloads

Datasheet

Datasheet

Datasheet A-142

Version / Date
2021-03-22
Version / Date
2021-03-22
Document language
pdf - 576 KB
pdf - 582 KB

Documentation

Documentation

User Manual A142D001

A-142 Series Miniature Linear Air Bearing Stage with Voice Coil Drive
Version / Date
2021-03-22
Document language English
Request download link

3-D Models

3-D Models

3-D model A-142

Version / Date
2021-03-22
Request download link

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

A-142.010A1 NEW!
PIglide voice coil miniature linear stage with air bearings; Voice coil; 10 mm travel range; 30 N load capacity; 450 mm/s maximum velocity; Incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; ; 0.5 m cable length
A-142.010A2 NEW!
PIglide voice coil miniature linear stage with air bearings; voice coil; 10 mm travel range; 30 N load capacity; 450 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; 0.5 m cable length; pneumatic counterweight for vertical mounting
