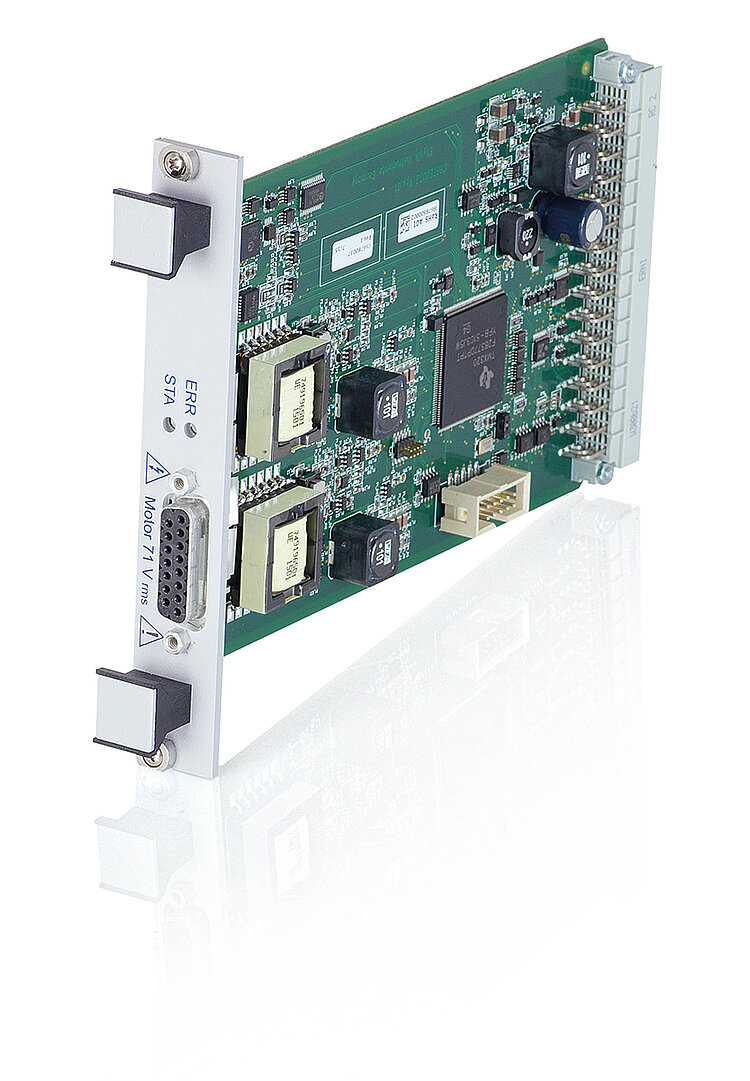

C-867.10C885 PILine® Controller Module

For C-885 PIMotionMaster Modular Controller System

  • For PILine® ultrasonic piezomotors
  • 50 MHz encoder inputs for simultaneous high velocity and resolution
  • PID control with dynamic parameter switchover
  • ID chip for fast start-up
  • BiSS interface
C-867.10C885 PILine® Controller Module
Product Description Specifications Downloads Quote / Order

Servo controller and power amplifier

Special PID controller for ultrasonic piezomotors. Power amplifier for PILine® ultrasonic piezomotors and stages with piezo motors with performance class 2. Dynamic frequency control for optimum operation

Encoder inputs

Differential signal transmission for digital (A/B) encoder signals. BiSS interface support for absolute encoders. TTL signal inputs for limit and reference point switches

Plug-and-Play installation in the C-885 PIMotionMaster

Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Expandable by optional digital input and outputs. Power via the power supply of the C-885
