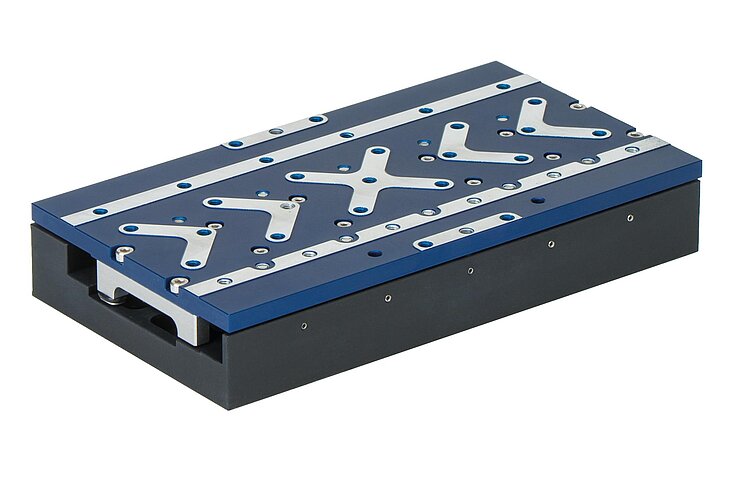

V-508 PIMag® Precision Linear Stage

Versatile options for adapting to requirements

V-508 PIMag® Precision Linear Stage
Product Description Specifications Downloads Quote / Order
  • Travel ranges 80, 170, and 250 mm
  • Ironless or iron core linear motor
  • Incremental or absolute linear encoder, various resolutions

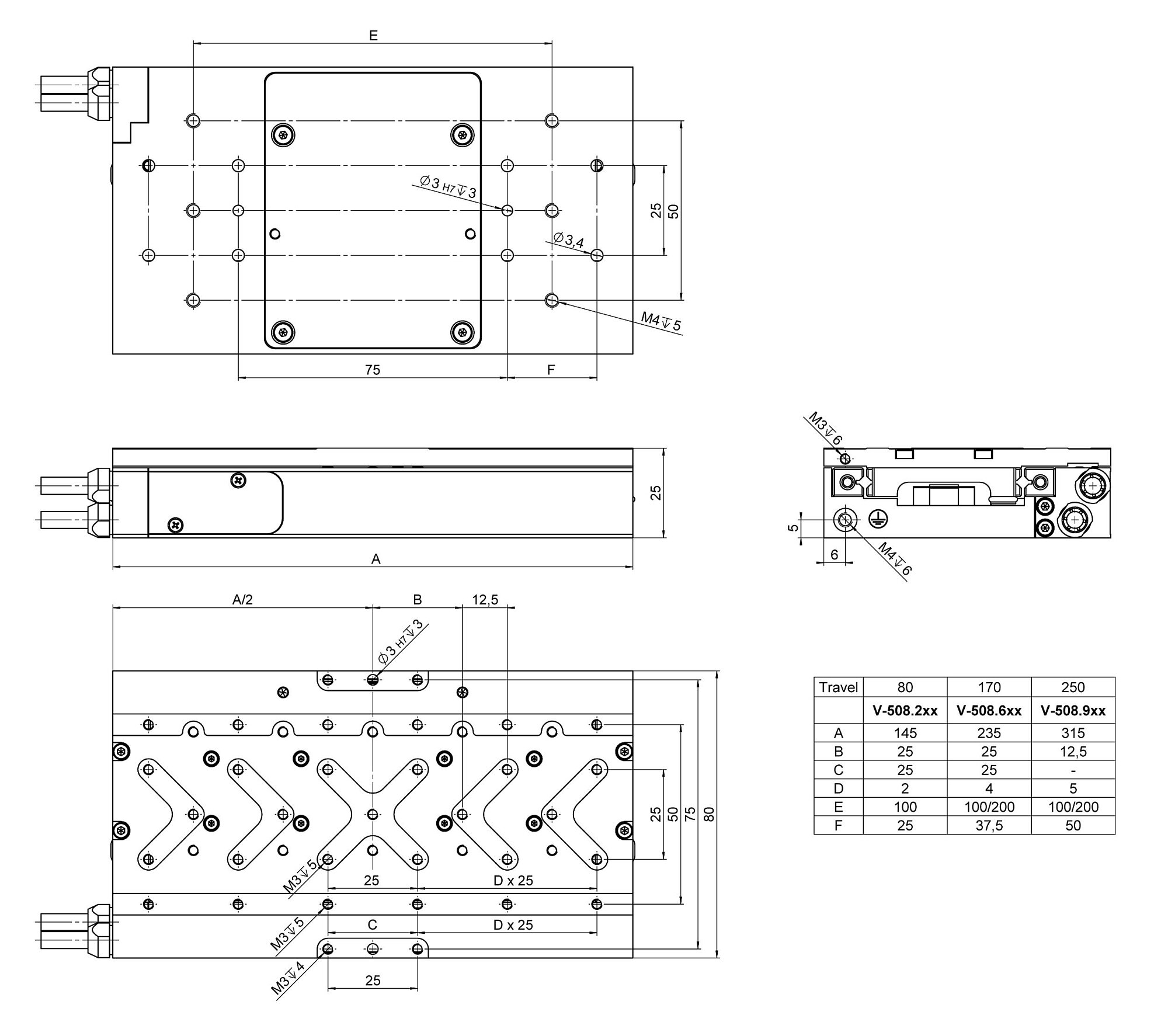

  • Compact cross section: 80 mm × 25 mm
  • Crossed roller bearings for high load capacity

Flexible adaption

The construction allows flexible adaption to the requirements. Technically sophisticated and cost-critical applications can be equally served with different travel ranges, drives, and measuring systems. XY assemblies are also possible

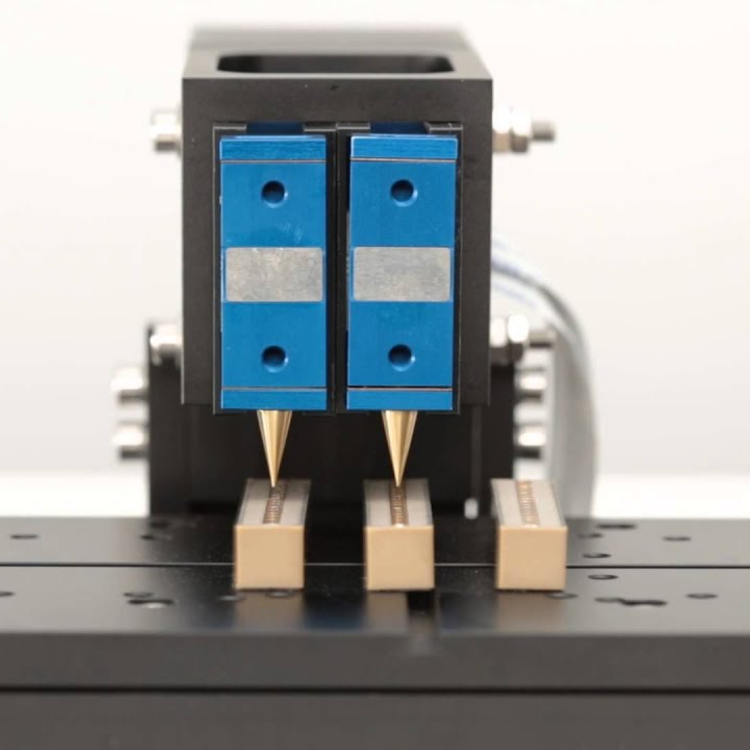

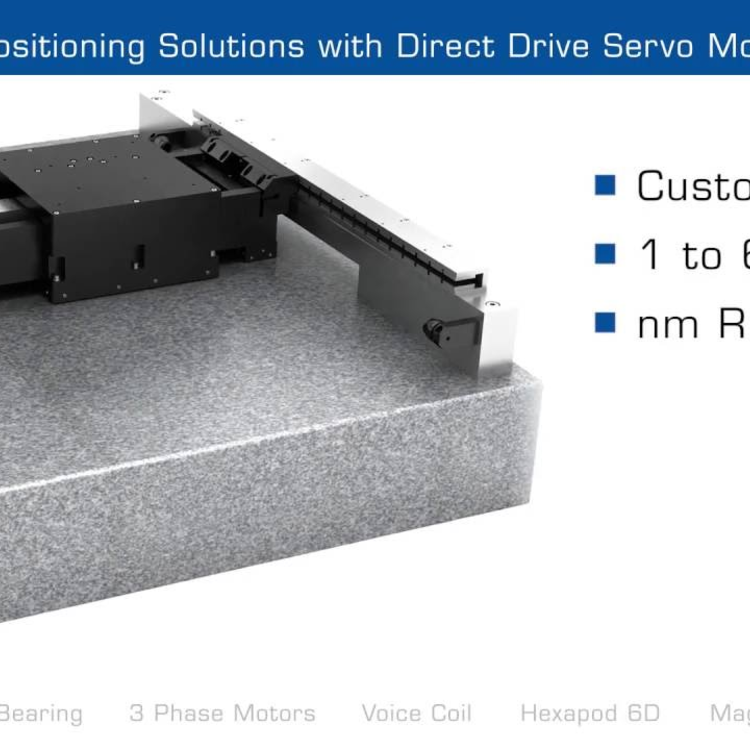

PIMag® magnetic direct drive

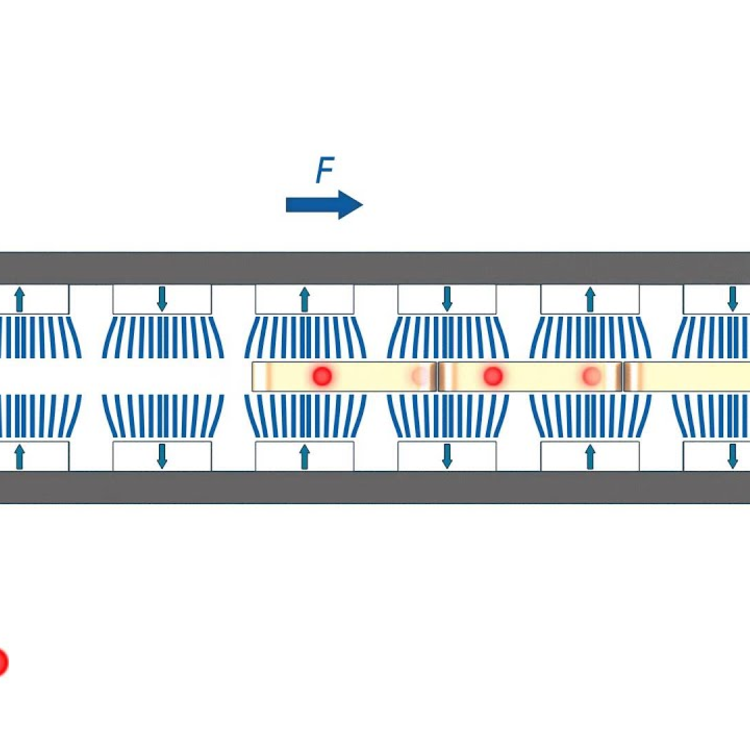

3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations.

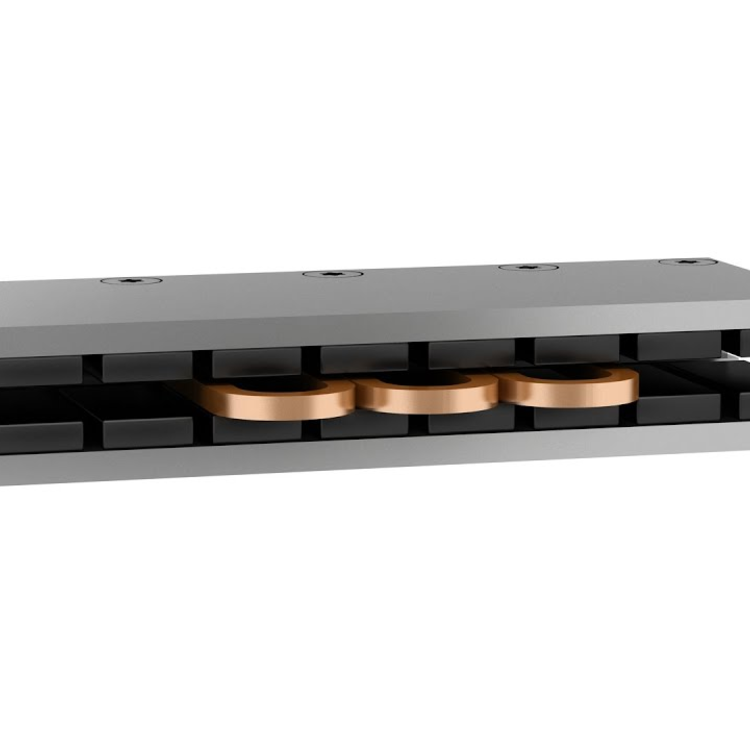

Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Iron core motors are used when forces and accelerations need to be achieved in a limited installation space. The design with iron cores maximizes the magnetic forces and ensures high thermal stability of the drive.

Crossed roller guide

With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent linear guide creeping.

Direct position measurement

Position measuring takes place directly at the motion platform with the highest accuracy so that nonlinearity, mechanical play or elastic deformation have no influence on position measuring.

Application fields

Industry and research. Measuring technology, photonics and precision scanning in semiconductor or medicine technology

Specifications

Datasheet V-508

Version / Date
2017-12-20
Version / Date
2017-12-20
Version / Date
2017-09-22
Document language
pdf - 224 KB
pdf - 222 KB
pdf - 572 KB

Downloads

Datasheet

Datasheet V-508

Version / Date
2017-12-20
Version / Date
2017-12-20
Version / Date
2017-09-22
Document language
pdf - 224 KB
pdf - 222 KB
pdf - 572 KB

Documentation

User Manual MP169E

PIMag® precision linear stage
Version / Date
2018-06-22
Document language English
pdf - 1 MB

Short Instructions MP163EK

V-408 / V-508 / V-52x / V-551 Stages with PIMag® Drives
Version / Date
2.0.0 December 2017
Document language English
pdf - 619 KB

3-D Models

V-508 3-D Model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Travel range 80 mm

V-508.231020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 80 mm travel range, 100 N load capacity, linear encoder with sin/cos signal transmission, 80 µm sensor signal period, Ironless 3-phase linear motor, 48 V
V-508.232020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 80 mm travel range, 100 N load capacity, linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.251020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 80 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, Ironless 3-phase linear motor, 48 V
V-508.252020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 80 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.2B1020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 80 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, Ironless 3-phase linear motor, 48 V
V-508.2B2020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 80 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, iron core 3-phase linear motor, 48 V

Travel range 170 mm

V-508.631020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 170 mm travel range, 100 N load capacity, linear encoder with sin/cos signal transmission, 80 µm sensor signal period, Ironless 3-phase linear motor, 48 V
V-508.632020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 170 mm travel range, 100 N load capacity, linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.651020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 170 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, Ironless 3-phase linear motor, 48 V
V-508.652020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 170 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.6B1020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 170 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, Ironless 3-phase linear motor, 48 V
V-508.6B2020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 170 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, iron core 3-phase linear motor, 48 V

Travel range 250 mm

V-508.931020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 250 mm travel range, 100 N load capacity, linear encoder with sin/cos signal transmission, 80 µm sensor signal period, Ironless 3-phase linear motor, 48 V
V-508.932020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 250 mm travel range, 100 N load capacity, linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.951020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 250 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, Ironless 3-phase linear motor, 48 V
V-508.952020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 250 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.9B1020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 250 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, Ironless 3-phase linear motor, 48 V
V-508.9B2020 NEW!
PIMag® Precision linear stage, 80 mm × 25 mm Cross section, 250 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, iron core 3-phase linear motor, 48 V
