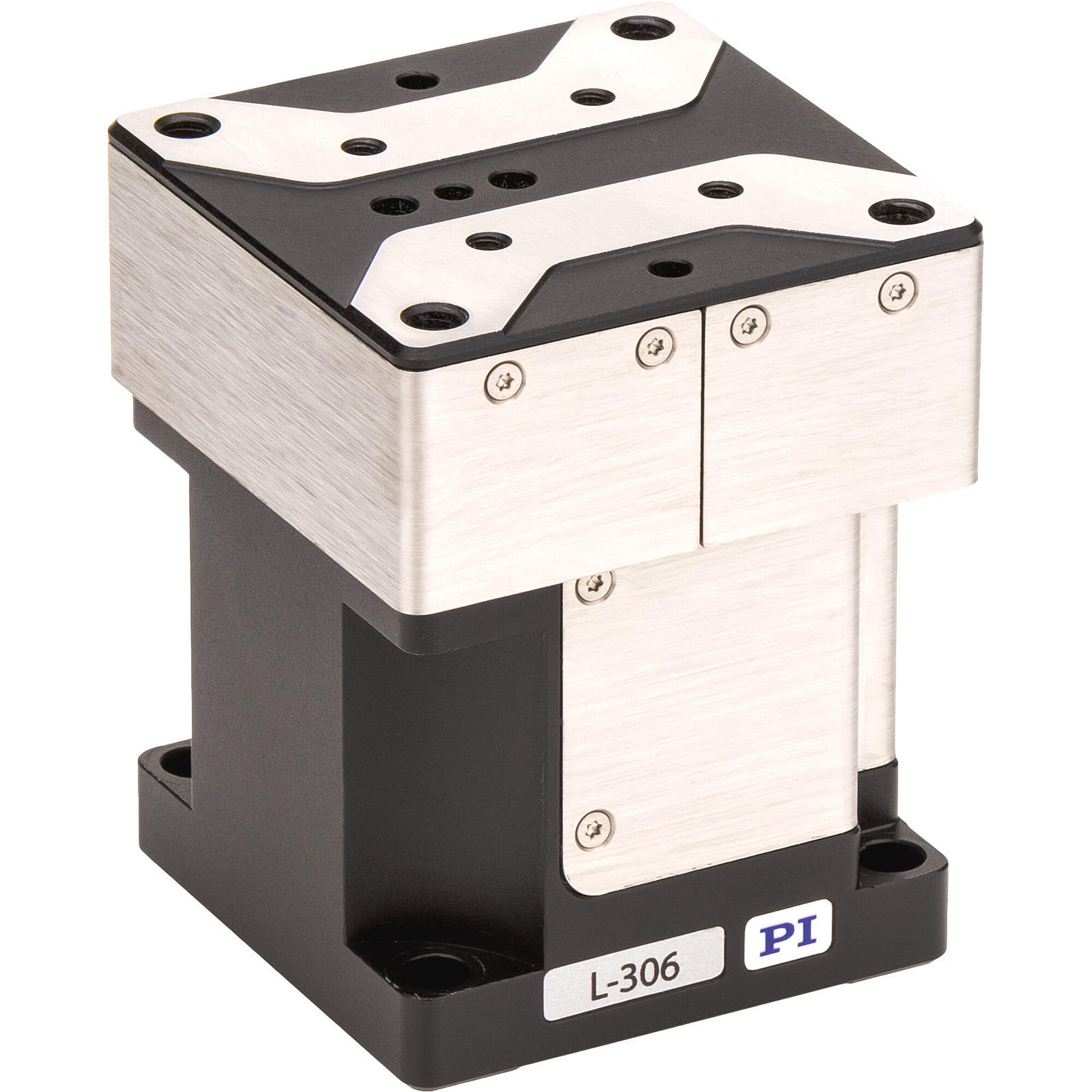

L-306 Compact Precision Z Stage

Compact Design, Multi-Axis Combinations

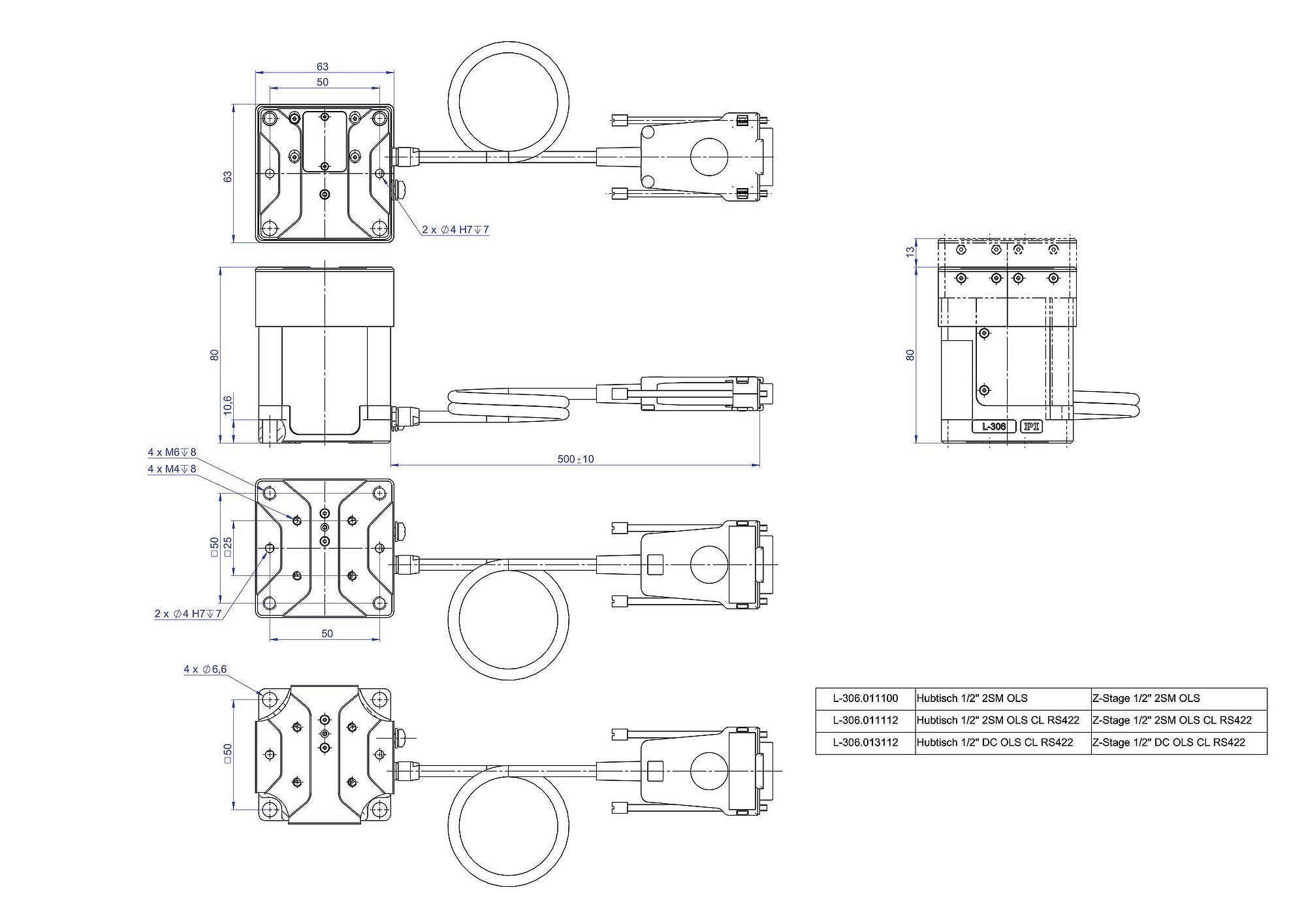

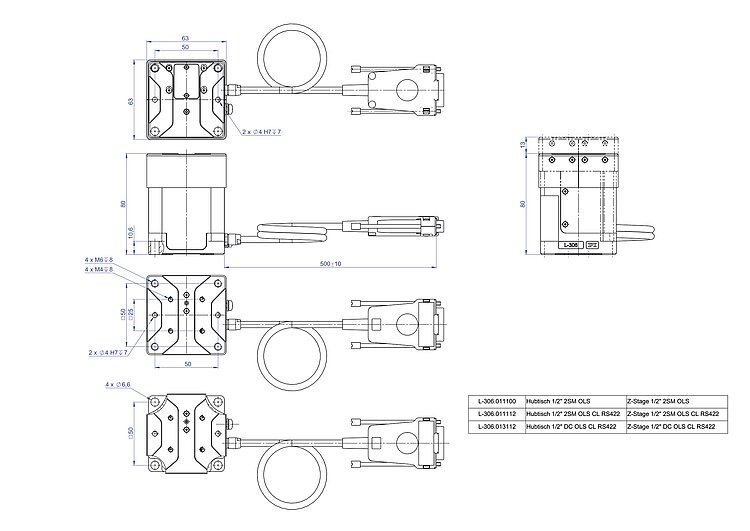

  • Compact design: Surface 63 × 63 mm
  • Stepper motors and closed-loop DC motors
  • Optional: Linear encoder for direct position measuring
  • Crossed roller guides
  • Noncontact reference and limit switches
L-306 Compact Precision Z Stage
Product Description Specifications Downloads Quote / Order

Compact Z stage, versatile in use

Z stage with compact size due to folded drive with belt gears. Fits onto linear stages with M6 50 mm × 50 mm connection grid (e.g., L-406).

Drive

  • 2-phase stepper motor or closed-loop DC motor
  • Backlash-compensated ball screws

Position measuring

  • Incremental linear encoder (optional with stepper motor variants)
  • Noncontact optical reference and limit switches

Highly-accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position with highest accuracy directly on the platform Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Crossed roller guide

For crossed roller guides, the point contact of balls in ball guides is replaced by the line contact of hardened rollers. Consequently, they are considerably stiffer and need less preloading, which reduces friction and enables smoother running. Crossed roller guides are also characterized by high guide accuracy and load capacity. Force-guided rolling element cages prevent cage creep.

Application fields

Research. Semiconductor technology. Photonics. Automation.

Specifications

Datasheet

L-306 Datasheet

Version / Date
2023-01-30
pdf - 544 KB
Version / Date
2023-01-30
pdf - 548 KB
Version / Date
2021-01-19
pdf - 434 KB
Version / Date
2019-10-17
pdf - 782 KB

Downloads

Datasheet

Datasheet

L-306 Datasheet

Version / Date
2023-01-30
pdf - 544 KB
Version / Date
2023-01-30
pdf - 548 KB
Version / Date
2021-01-19
pdf - 434 KB
Version / Date
2019-10-17
pdf - 782 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
3.0.0 2024-01-15
pdf - 261 KB
Version / Date
3.0.0 2024-01-15
pdf - 295 KB
Documentation

User Manual L306T0002

Compact Z positioner L-306.011100 / 011112 / 013112

Version / Date
2020-11-11
pdf - 819 KB
Version / Date
2020-11-11
pdf - 865 KB

3-D Models

3-D Models

L-306 3-D model

zip - 2 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-306.011112

Compact precision Z stage; 2-phase stepper motor; 13 mm travel range; 20 N load capacity; 5 mm/s maximum velocity; ball screw; incremental linear encoder, 5 nm sensor resolution, A/B quadrature, RS-422; 0.5 m cable length

L-306.013112

Compact precision Z stage; DC motor; 13 mm travel range; 20 N load capacity; 5 mm/s maximum velocity; ball screw; incremental linear encoder, 50 nm sensor resolution, A/B quadrature, RS-422; 0.5 cable length
