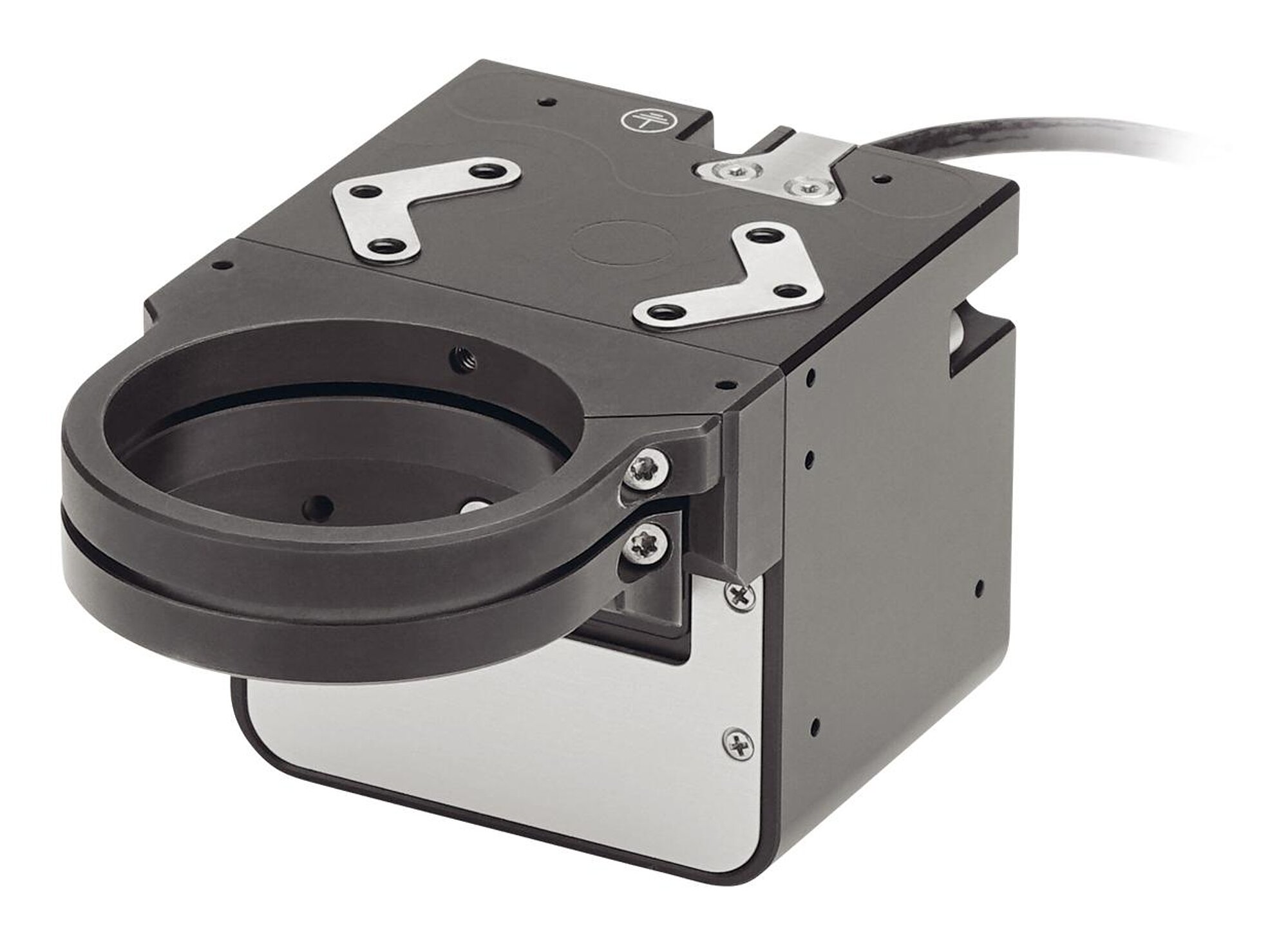

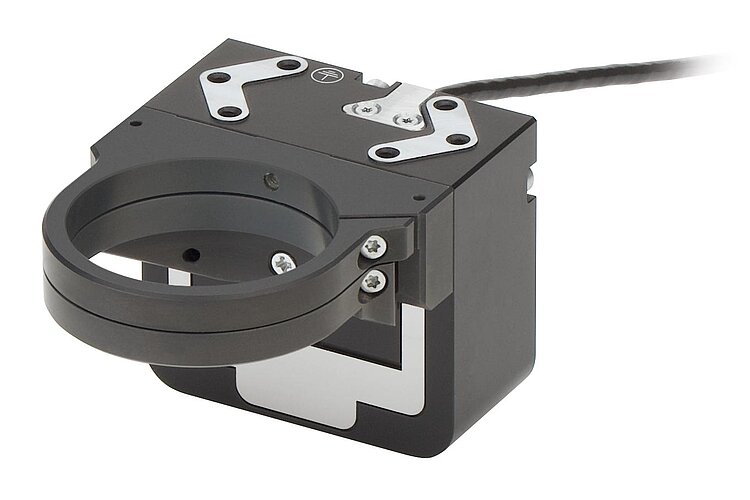

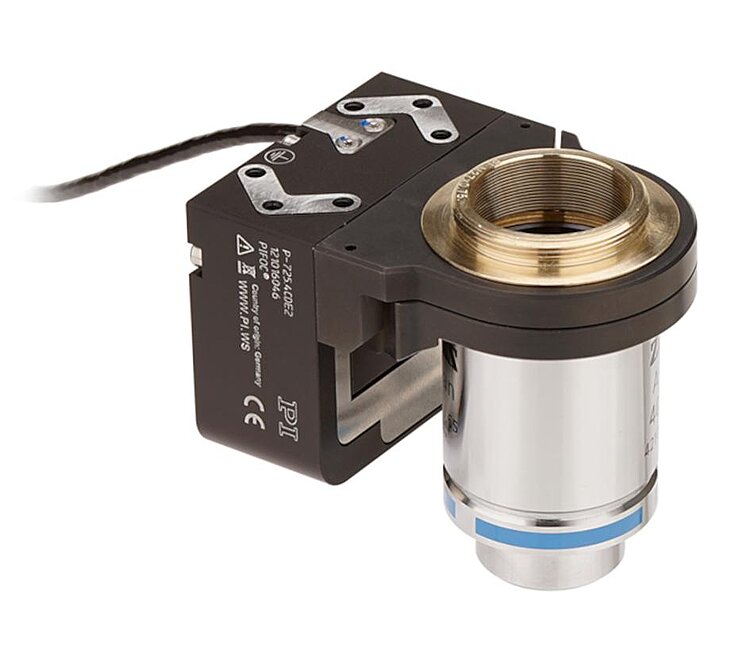

P-725.xCDE2 PIFOC Objective Scanner with Long Travel Range

High-Precision Positioner and Scanner for Microscope Objectives

P-725.xCDE2 PIFOC Objective Scanner with Long Travel Range
Product Description Specifications Downloads Quote / Order
  • Travel ranges to 800 µm
  • Significantly faster response and longer lifetime than motorized drives
  • Fine positioning of objectives with sub-nm resolution
  • Direct position measuring with capacitive sensors: Highest linearity
  • Compatible with Metamorph® imaging software
  • Large clear aperture with Ø 29 mm

Application fields

  • Super-resolution microscopy
  • Light disk microscopy
  • Confocal Microscopy
  • 2-photon microscopy
  • 3-D imaging
  • Screening
  • Interferometry
  • Measuring technology
  • Autofocus systems
  • Biotechnology
  • Semiconductor inspection

Outstanding lifetime due to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.


This content is only available on tablets or desktop devices.


3-D Models

3-D Models

3-D model P-725.xCDE2

Version / Date
Request download link



P-725 PIFOC® Portfolio

Piezobased Objective Focus Drive Series
Version / Date
Document language English
pdf - 1 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
