XY Piezo Flexure Stages

High-precision 2-axis nanopositioning systems integrate PICMA® piezo actuators for maximum reliability. Repeatable, drift-free positioning with optimal stability is possible by the use of high-quality nanometrology sensors.

2-Axis piezo scanners for small loads are frequently used for scanning and tracking processes. Their rapid step-and-settle motions improve the resolution of optical systems. These include imaging processes in camera technology and image recognition, for example for biometrics or document archiving.

Buy PI Products Online

Buy PI Products Online

Order PI’s stages, controllers, and matching accessories for your project in our online shop.

Compact XY Piezo Stages

P-611.XZ • P-611.2 XZ and XYZ Nanopositioner

Compact Two-Axis Piezo System for Nanopositioning

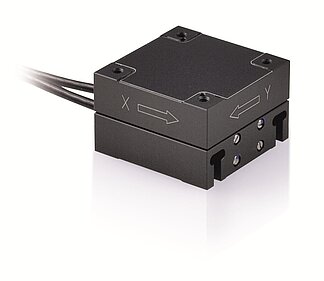

P-620.2 – P-629.2 PIHera XY Piezo Stage

High-precision XY Nanopositioners with Variable Travel Ranges

XY Piezo Flexure Stages with Aperture

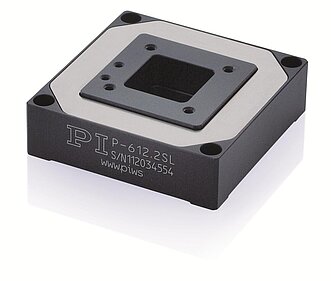

P-612.2 XY Piezo Nanopositioning System

Compact, with Aperture

P-541.2 • P-542.2 XY Piezo Stage

Low-Profile XY Nanopositioning System with Large Aperture

P-733.2 XY Piezo Nanopositioner

High-Precision XY Scanner with Aperture

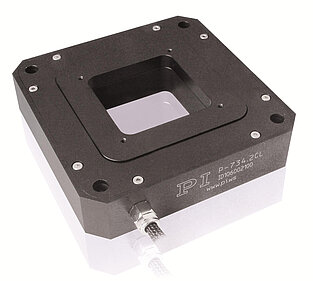

PI P-734.2CL

P-734 XY Piezo Scanner

High-Dynamics System with Minimum Runout and Clear Aperture

P-763 Compact XY Nanopositioner

With Clear Aperture

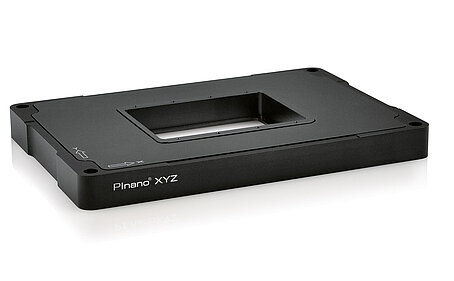

P-545.xR8S PInano® XY(Z) Piezo System

Inexpensive Nanopositioning System for High-Resolution Microscopy

P-545.xC8S PInano® Cap XY(Z) Piezo System

Capacitive Position Measuring for Super-Resolution Microscopy

P-545.3D8S PInano® Trak Piezo Tracking System

Fast XY(Z) Stage for High Dynamics Microscopy
