- CIPA certified
- Travel ranges to ±17 mm / ±21°
- Velocity to 10 mm/s

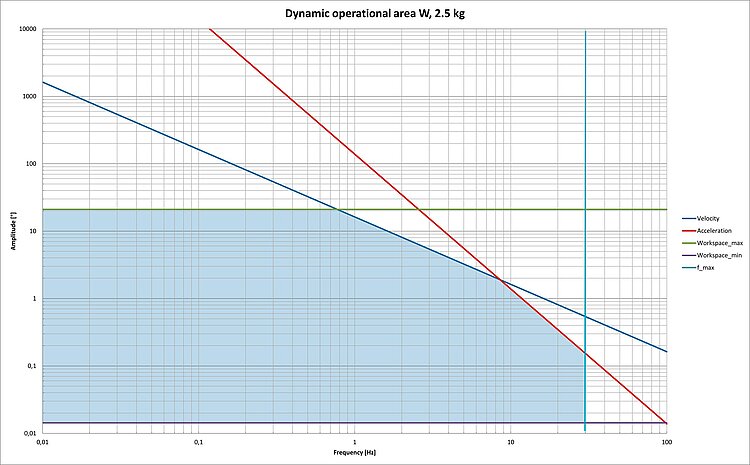

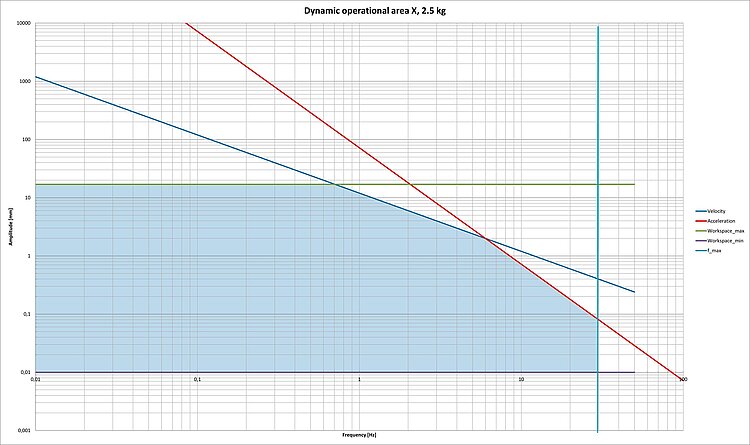

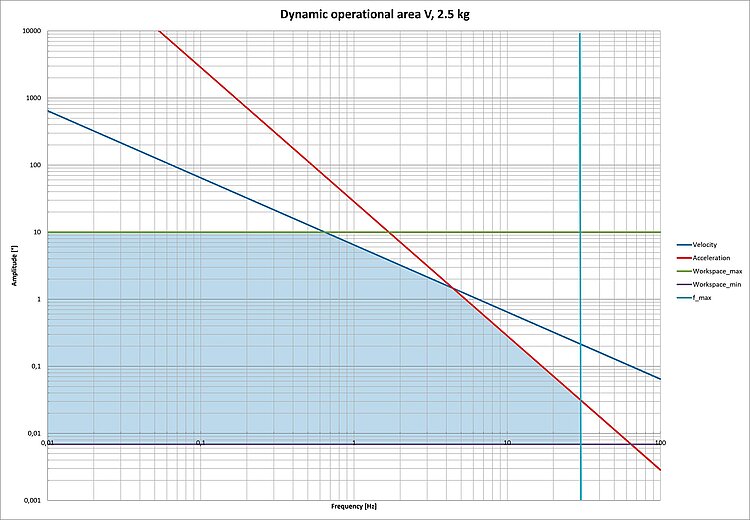

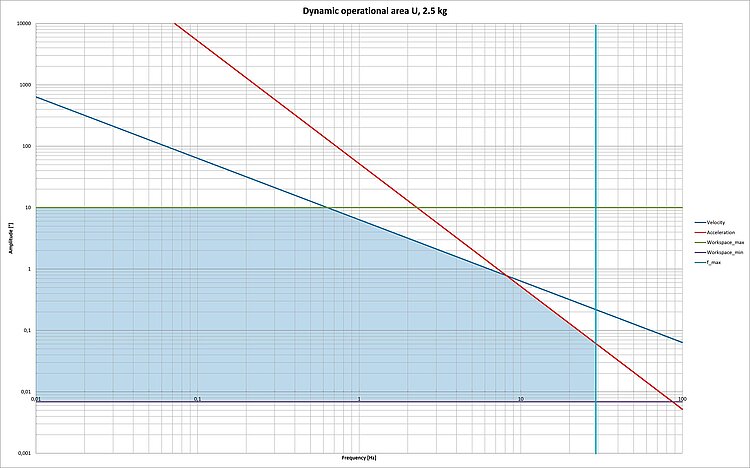

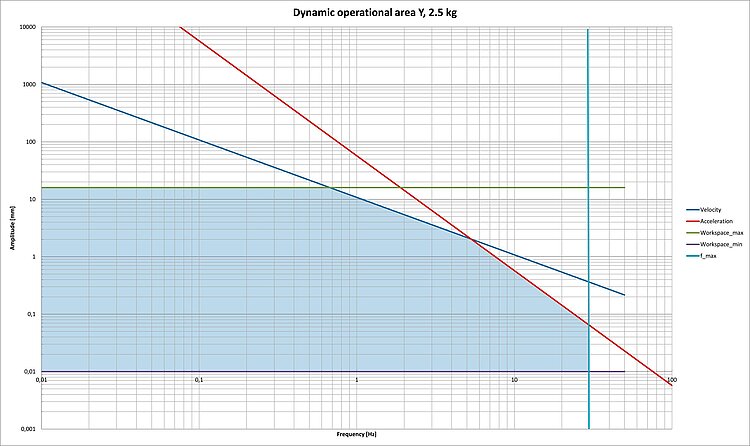

- Dynamics to 25 Hz over 0.1° travel range
- Developed for image stabilization inspection systems

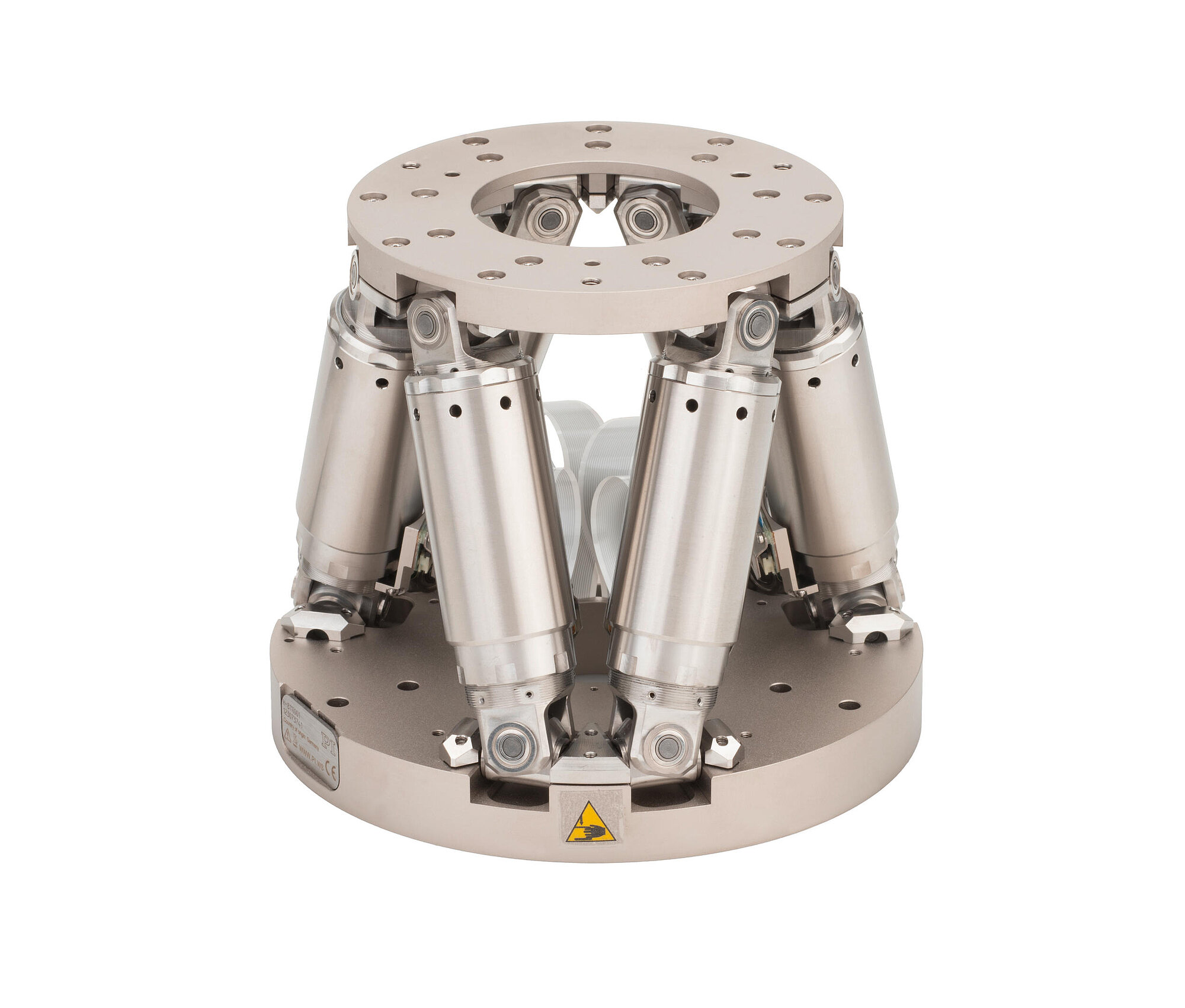

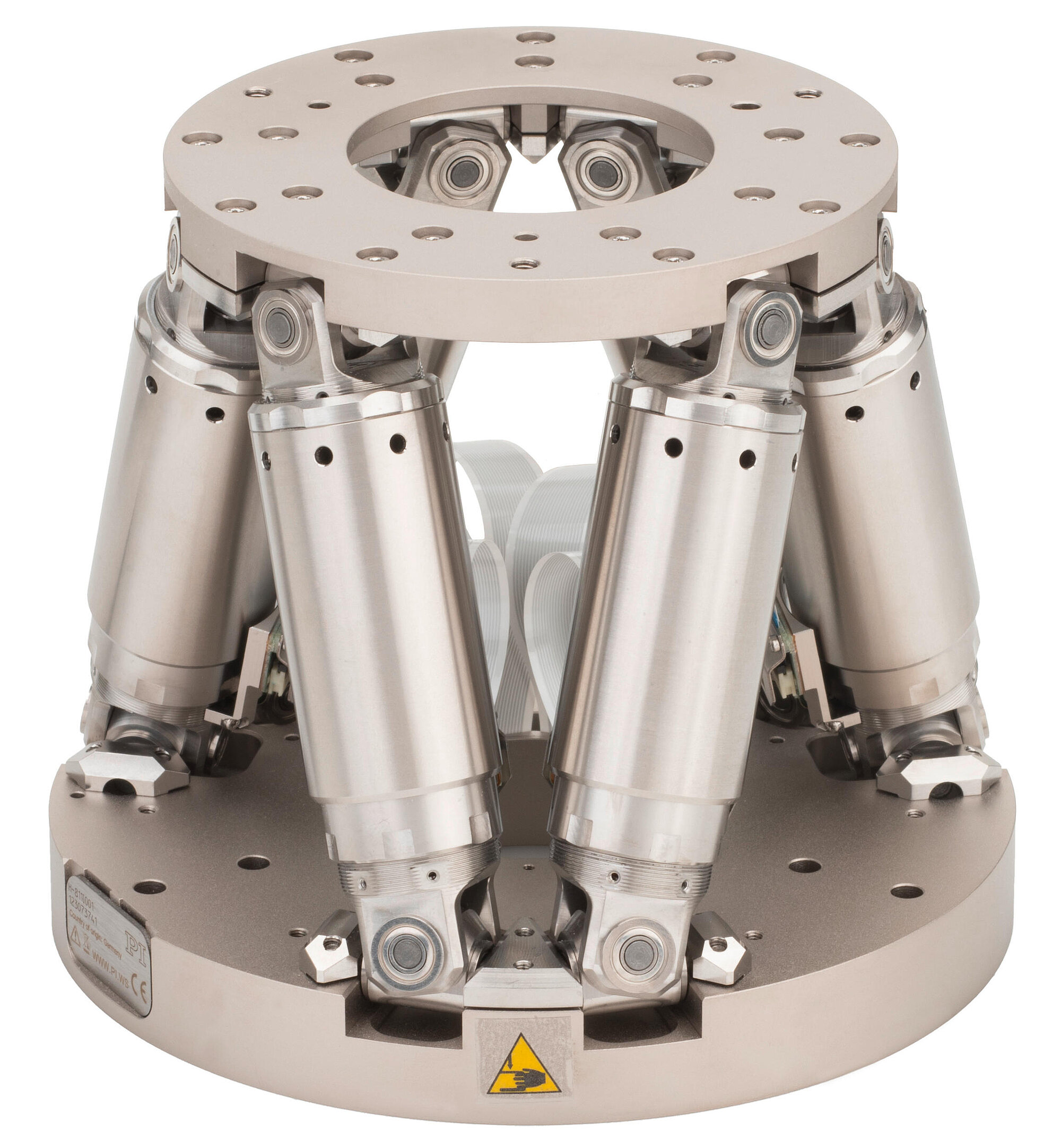

Reference-class 6-axis positioning system
Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.
Brushless DC motor (BLDC)
Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.
The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.
Fields of application
Research and industry, test systems, e.g., for image stabilization in cameras and mobile devices
