P-810 • P-830 Piezo Actuators

For Light and Medium Loads

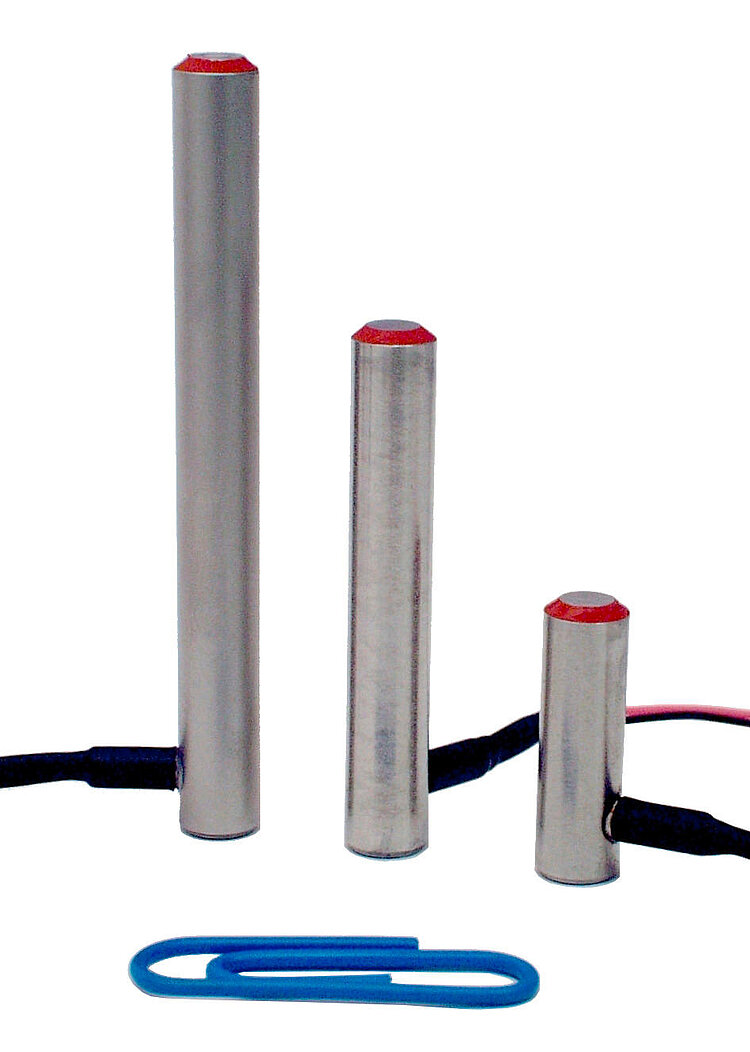

P-810 • P-830 Piezo Actuators
Product Description Specifications Downloads Quote / Order
  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 60 µm
  • Push force capacity to 1000 N
  • Pull force capacity to 5 N
  • µs response time
  • Subnanometer resolution

Fields of application

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Patch clamp
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Specifications

Datasheet

Datasheet P-810 • P-830

Version / Date
2019-10-21
Version / Date
2019-10-21
Version / Date
2018-06-14
Document language
pdf - 206 KB
pdf - 208 KB
pdf - 641 KB

Downloads

Datasheet

Datasheet

Datasheet P-810 • P-830

Version / Date
2019-10-21
Version / Date
2019-10-21
Version / Date
2018-06-14
Document language
pdf - 206 KB
pdf - 208 KB
pdf - 641 KB

Documentation

Documentation

Short Instructions PZ298EK

Housed PICMA® Actuators to 100 V
Version / Date
1.0.1 09/2019
Version / Date
1.0.1 09/2019
Document language
pdf - 1 MB
pdf - 1 MB
Documentation

User Manual P810T0004

P-810, P-830 Piezo Actuators
Version / Date
2019-10-16
Document language English

3-D Models

3-D Models

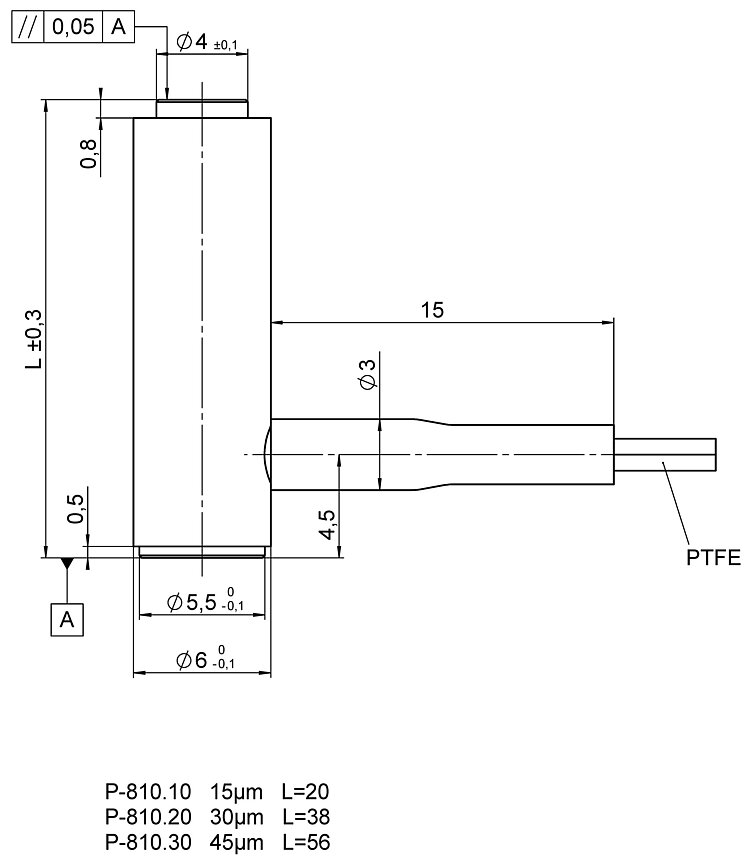

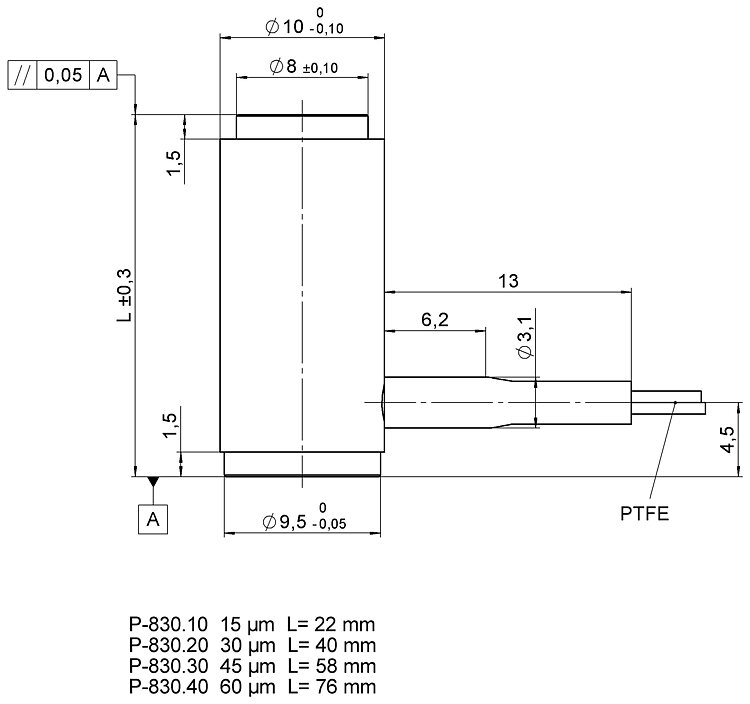

P-830 3-D model

3-D Models

P-810 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
