P-1x1.0xT PICA Shear Actuators

Compact Actuators for Cryogenic and UHV Environments

P-1x1.0xT PICA Shear Actuators
Product Description Specifications Downloads Quote / Order

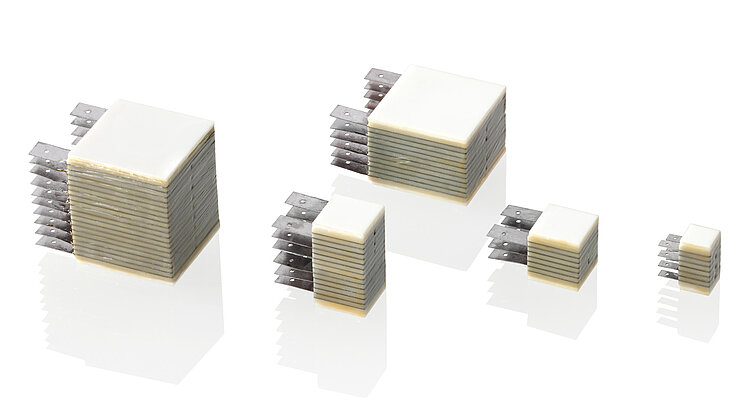

Piezo shear actuators

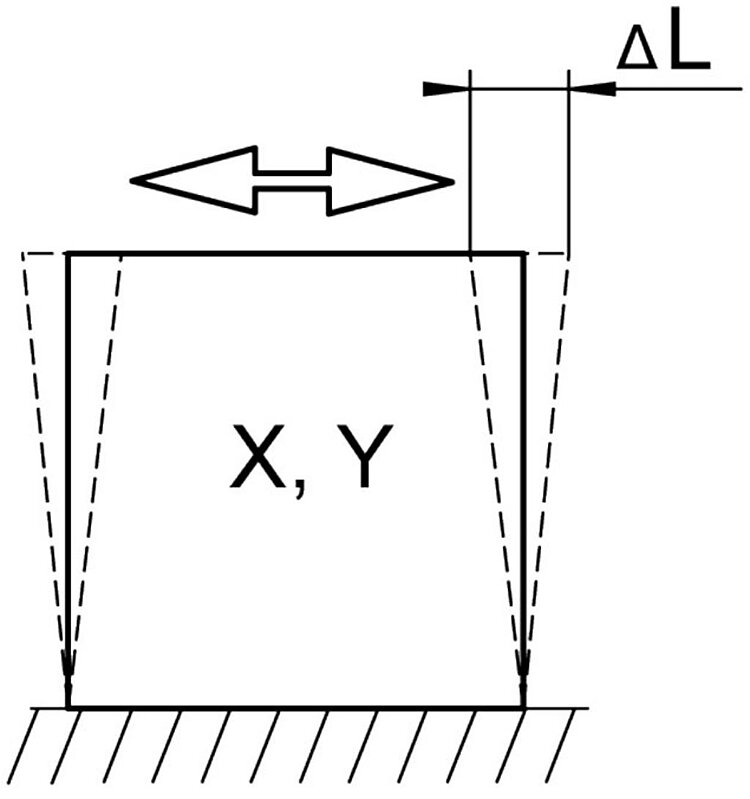

Operating voltage -250 to 250 V. Suitable for use in cryogenic and UHV environments to 10-9 hPa. Lateral displacement is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement.

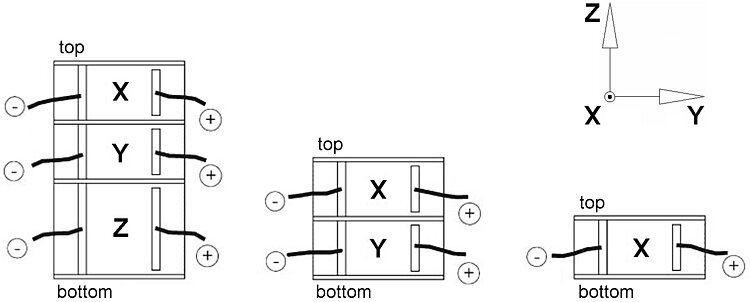

Variants for multi-axis motion, also with inner hole.

Possible modifications

  • Piezo ceramic material
  • Nonmagnetic versions
  • Operating voltage range, displacement, layer thickness, cross-sectional dimension
  • Load capacity, force generation
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Extra-tight length tolerances

Fields of application

  • Industry and research
  • Low temperature / vacuum environment to 10-9 hPa
  • Scanning applications
  • Microscopy
  • Precision mechanics
  • Switching applications



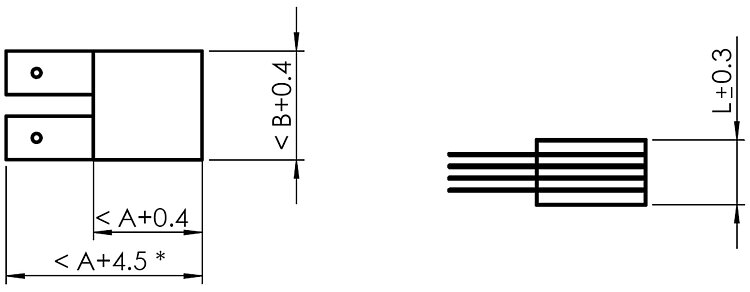

Specifications

Datasheet

Datasheet P-1x1.0xT

Version / Date
2018-11-29
Version / Date
2018-11-29
Version / Date
2018-05-14
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 745 KB

Downloads

Datasheet

Datasheet

Datasheet P-1x1.0xT

Version / Date
2018-11-29
Version / Date
2018-11-29
Version / Date
2018-05-14
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 745 KB

Documentation

Documentation

Short Instructions PZ257EK

PICA Piezo Actuators up to 1000 V: P-0xx, P-1xx, P-405, PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®
Version / Date
2.1.0 01/2019
Document language English
pdf - 437 KB
Documentation

User Manual PZ252

PICA Shear Piezo Actuators: P-111, P-112, P-121, P-122, P-123, P-141, P-142, P-143, P-151, P-152, P-153, PICA Shear Customized Products
Version / Date
1.3.0 2018-12-19
Version / Date
1.3.0 2018-12-19
Document language

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
