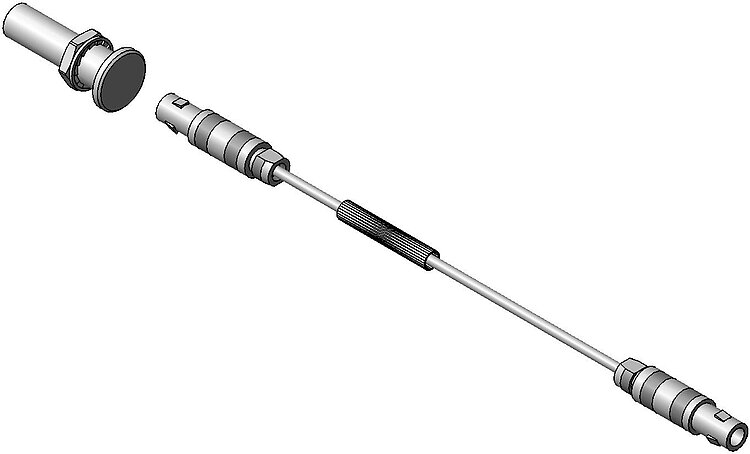

P-891.VA • P-892.VA Vacuum Feedthrough

Accessories for Vacuum-Compatible Piezo Positioners

  • Closure and port for vacuum chambers
  • Vacuum compatible to 10-6 hPa
P-891.VA • P-892.VA Vacuum Feedthrough
Product Description Specifications Downloads Quote / Order

Connection of standard controllers to vacuum applications

Vacuum feedthroughs are the interface between the positioner within the vacuum enclosure and the controller on the air side. With their help, vacuum applications can be connected to standard controllers. The P-891.VA and P-892.VA vacuum feedthroughs are available for low-voltage piezo systems.

Specifications

Datasheet

Datasheet P-891.VA • P-892.VA

Version / Date
2022-05-25
pdf - 479 KB
Version / Date
2022-05-25
pdf - 477 KB

Downloads

Datasheet

Datasheet

Datasheet P-891.VA • P-892.VA

Version / Date
2022-05-25
pdf - 479 KB
Version / Date
2022-05-25
pdf - 477 KB

3-D Models

3-D Models

3-D model P-89X.VA

zip - 262 KB
English

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-891.VA NEW!

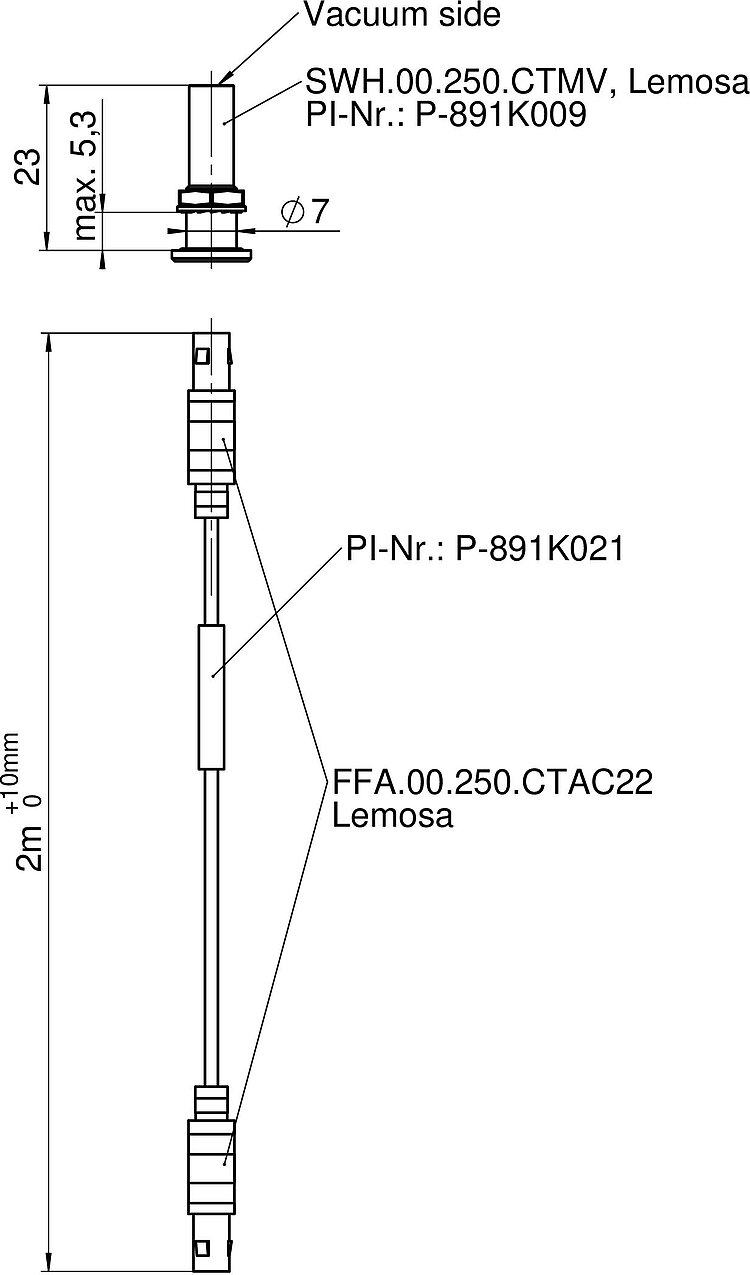

Vacuum feedthrough for piezo voltage, LEMO connector, 100 °C bakeout temperature, suitable for high vacuum (up to 10-6 hPa), including air-side cable, 2 m

P-892.VA NEW!

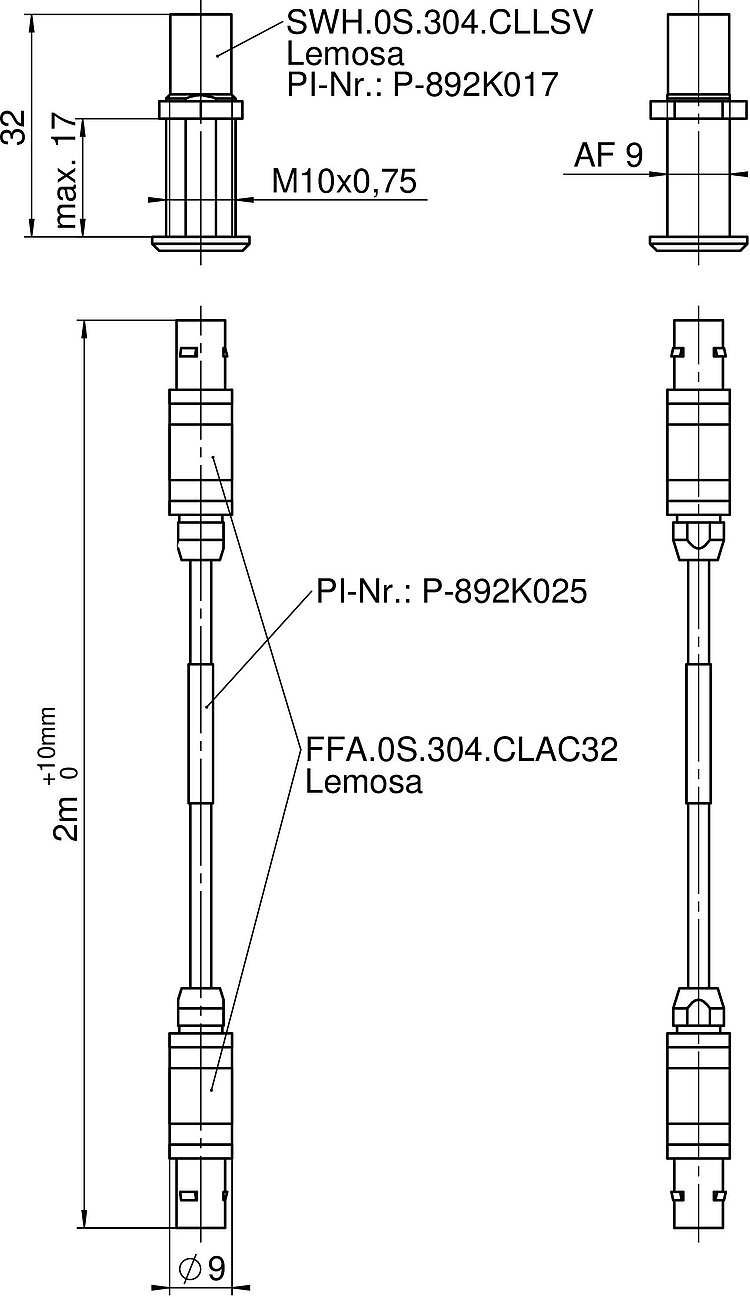

Vacuum feedthrough for DMS sensor signals, LEMO connector, 100 °C bakeout temperature, suitable for high vacuum (up to 10-6 hPa), including air-side cable, 2 m
