M-110 • M-111 • M-112 Compact Linear Stage

XY(Z) Combinations with a Variety of Drives and Travel Ranges

M-110 • M-111 • M-112 Compact Linear Stage
Product Description Specifications Downloads Quote / Order
  • Very compact due to folded drive
  • Stepper motors and closed-loop DC motors
  • Leadscrews and ball screws
  • Noncontact reference and limit switches

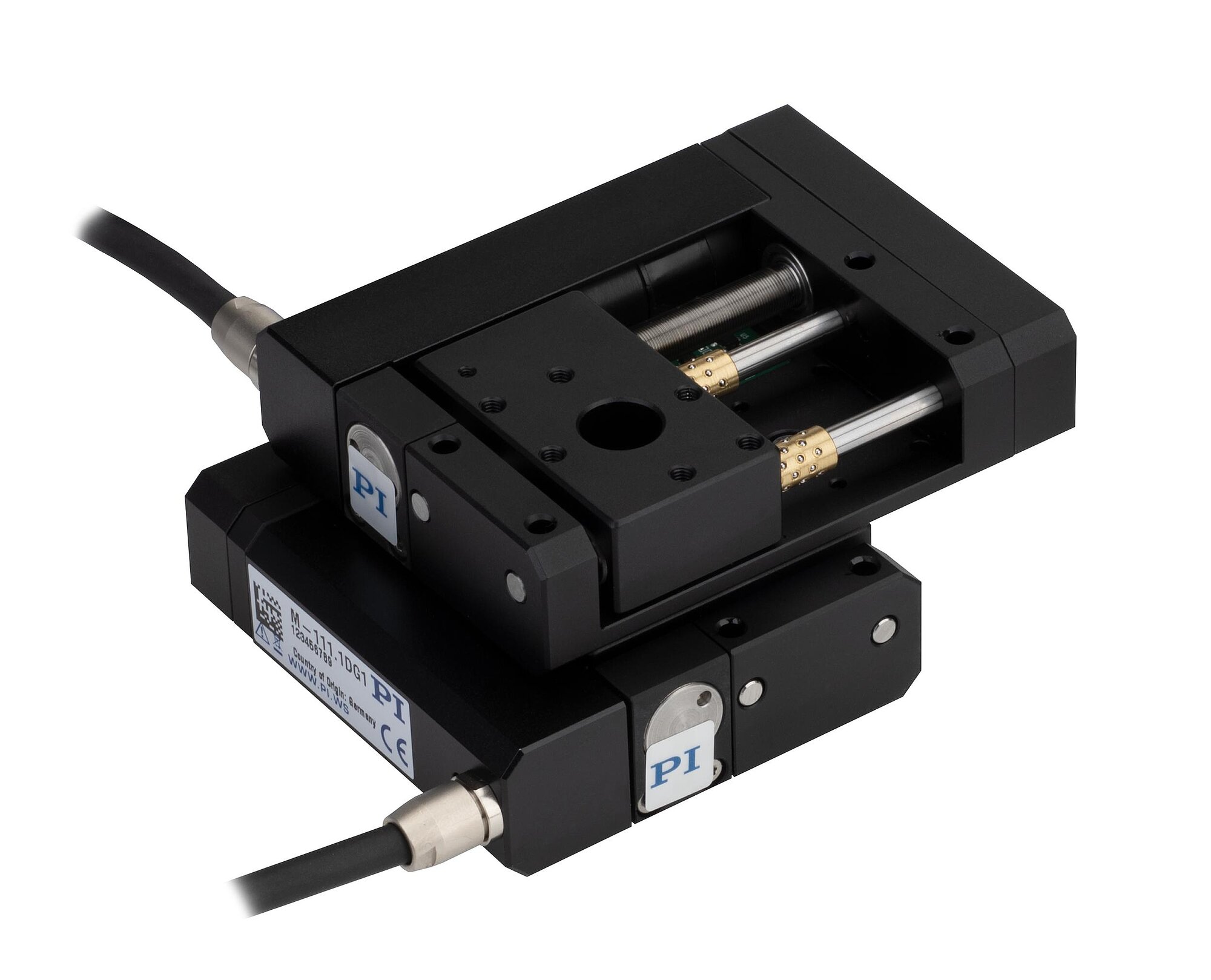

  • XY setups can be mounted directly
  • Larger quantities available quickly

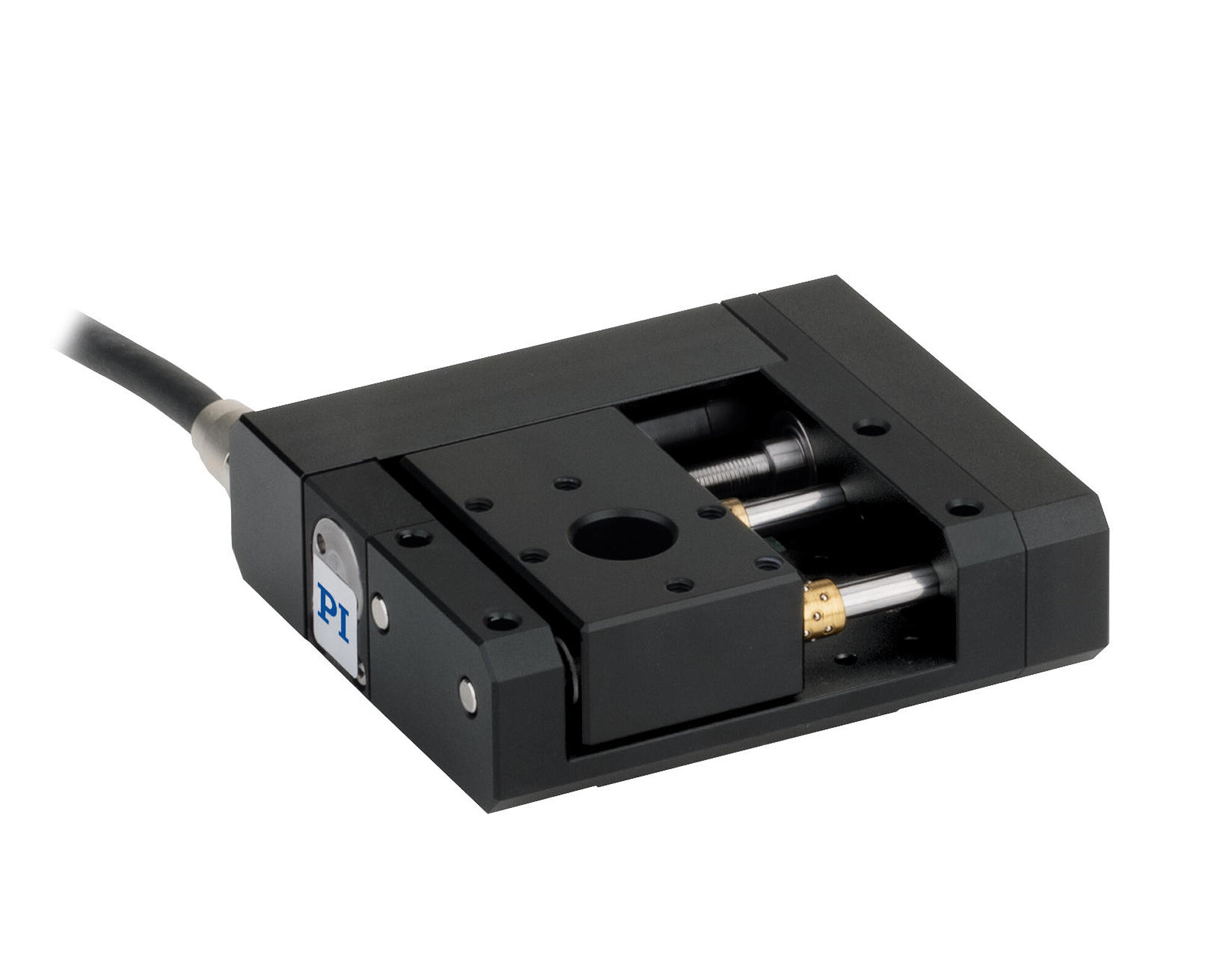

Compact linear stage, versatile in use

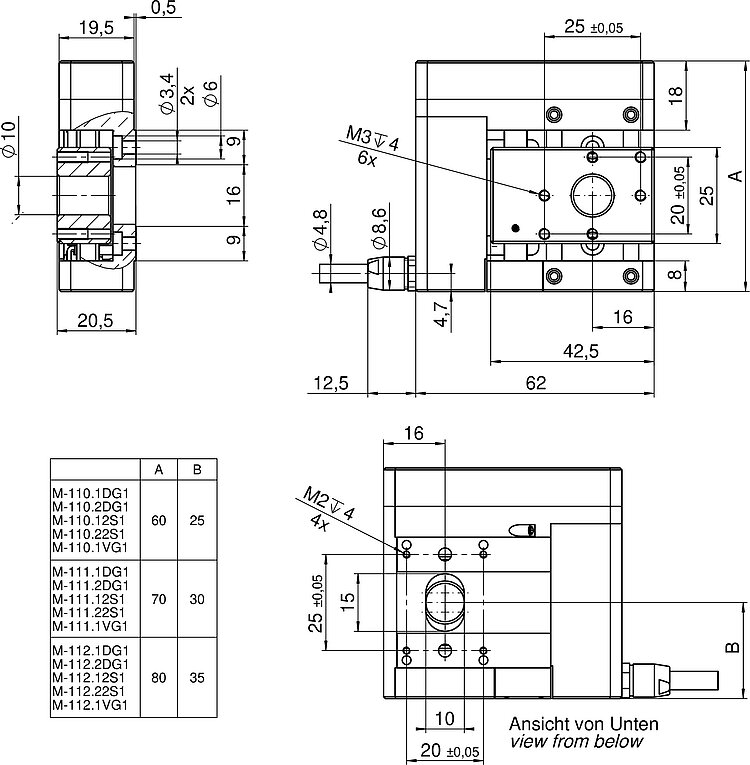

Linear stage with compact size due to folded drive with belt drive. Clear aperture with 10 mm Ø. XY setups can be mounted directly without adapter plate.

Drive

  • 2-phase stepper motor or closed-loop DC gear motor
  • Backlash-compensated leadscrew or ball screw

Position measurement

  • Variants with DC gear motor: Rotary encoder on the motor shaft.
  • Noncontact Hall effect reference and limit switches.

Application fields

Precision microassembly, Research, Laser marking, Automation, Optical alignment
