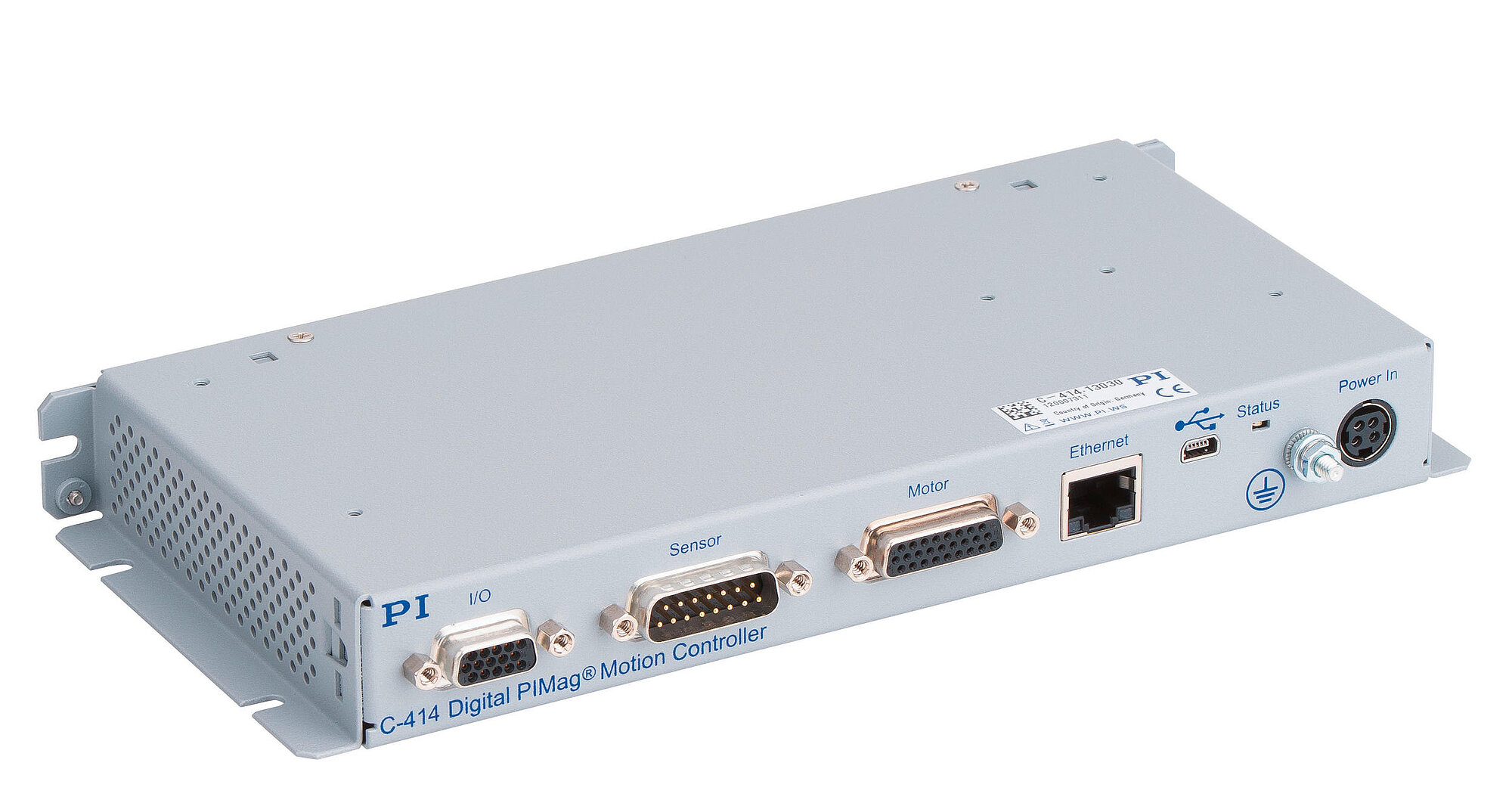

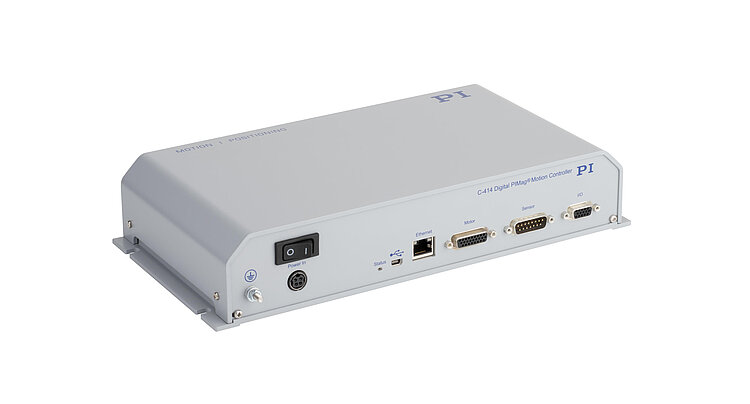

C-414 PIMag® Motion Controller

Control of Position and Velocity for Voice Coil Drives

  • Output current up to 5 A, closed loop
  • TCP/IP and USB interfaces for commanding and configuration
  • Digital inputs and outputs, analog input and output
  • Autozero function for holding current
  • Data recorder
  • Wave generator
C-414 PIMag® Motion Controller
Product Description Specifications Downloads Quote / Order

Digital motion controller for PIMag® voice coil drives

PID controller for position and velocity. Servo update rate 20 kHz.

Protection of the mechanics

The autozero function defines the holding current at which the drive generates a force of 0 N in open-loop operation, e. g., for compensating the weight force. An I2t monitoring prevents the drive from overheating due to overcurrent.

Extensive functions, software support

Data recorder for recording operating data such as motor current, velocity, position, or position error. Wave generator for the output of periodic motion profiles. Extensive set of drivers, e.g., for use with NI LabVIEW, MATLAB, and Python.

Interfaces

Commanding via TCP/IP, USB. Digital inputs and outputs for automation. Analog input and output, e.g., for sensors, commanding, or position feedback.

Specifications

Datasheet

Datasheet C-414

Version / Date
2024-01-19
pdf - 676 KB
Version / Date
2024-01-19
pdf - 679 KB
Version / Date
2021-01-15
pdf - 345 KB

Downloads

Datasheet

Datasheet

Datasheet C-414

Version / Date
2024-01-19
pdf - 676 KB
Version / Date
2024-01-19
pdf - 679 KB
Version / Date
2021-01-15
pdf - 345 KB

Documentation

Documentation

User Manual MS254

C-414.13030 PIMag® motion controller, 1 axis, 48 V, 5 A, benchtop device, TCP/IP and USB interface

Version / Date
1.1.0 2022-04-07
pdf - 4 MB
Version / Date
1.1.0 2022-04-07
pdf - 4 MB
Documentation

Short Instructions MS242EK

Digital Motor Controllers and Drivers: C-663 / C-863 / C-867 / C-877 / C-884 / E-861 / E-871 / E-872.401 / E-873

Version / Date
3.1.0 02/2021
pdf - 2 MB
Version / Date
3.1.0 02/2021
pdf - 2 MB

General Software Documentation

General Software Documentation

Technical Note A000T0089

PI Software on ARM-Based Platforms

Version / Date
2023-05-08
pdf - 276 KB
General Software Documentation

User Manual SM164E

Updating controller firmware with PIFirmwareManager

Version / Date
12.12.2023 1.0.0
pdf - 819 KB
English
General Software Documentation

Software Manual SM151E

PI GCS2 DLL

Version / Date
2.10.0 2019-08-26
pdf - 1 MB
English
General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0

Version / Date
1.2.0 2019-03-22
pdf - 1 MB
Version / Date
1.2.0 2019-03-22
pdf - 1 MB
General Software Documentation

Software Manual SM146

GCS Array Data Format

Version / Date
1.2.1
pdf - 153 KB
English
General Software Documentation

Software Manual SM148

PIMikroMove

Version / Date
2.14.1 2022-02-28
pdf - 4 MB
English
General Software Documentation

User Manual A000T0028

Updating PI Software with PIUpdateFinder

Version / Date
2020-05-20
pdf - 482 KB
Version / Date
2020-05-20
pdf - 488 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
