M-105 Microtranslation Stage

M-105 Microtranslation Stage

Precision Crossed Roller Guides, PiezoMike Option, XY(Z) Combinations

Travel range to 18 mm
Stainless steel construction
XY and XYZ combinations
Optional PiezoMike with 10 nm resolution
Optional motor drives

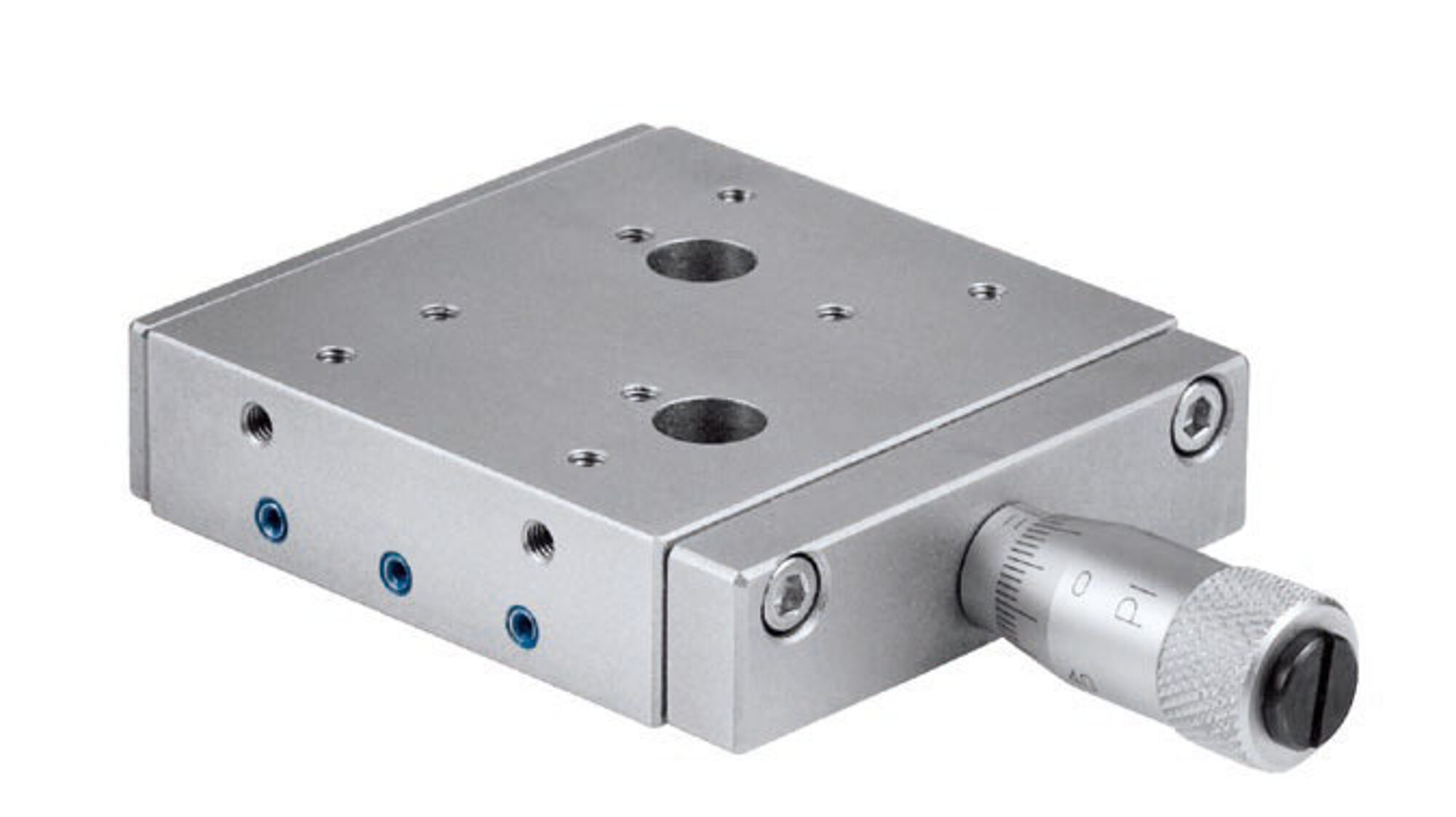

M-105.10

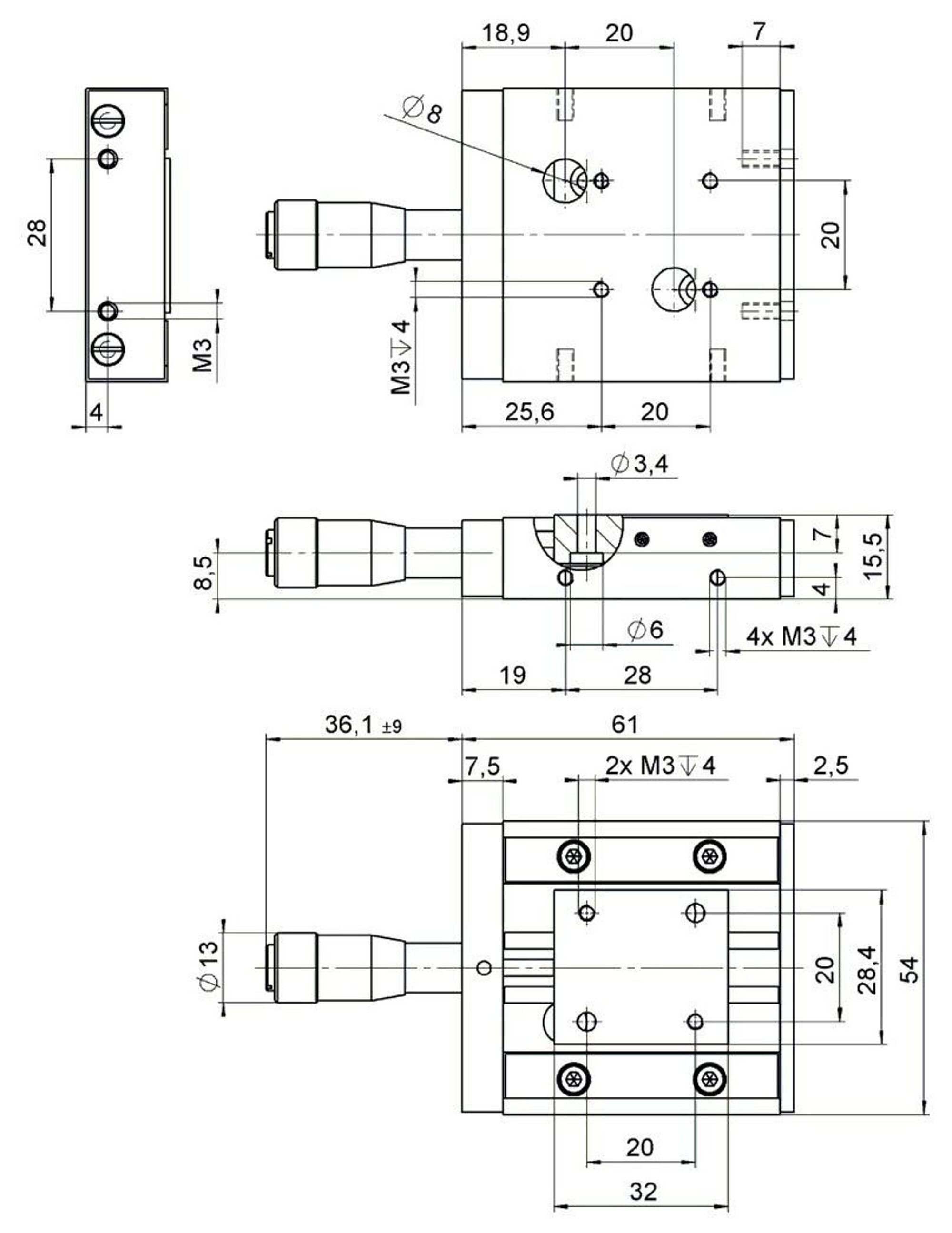

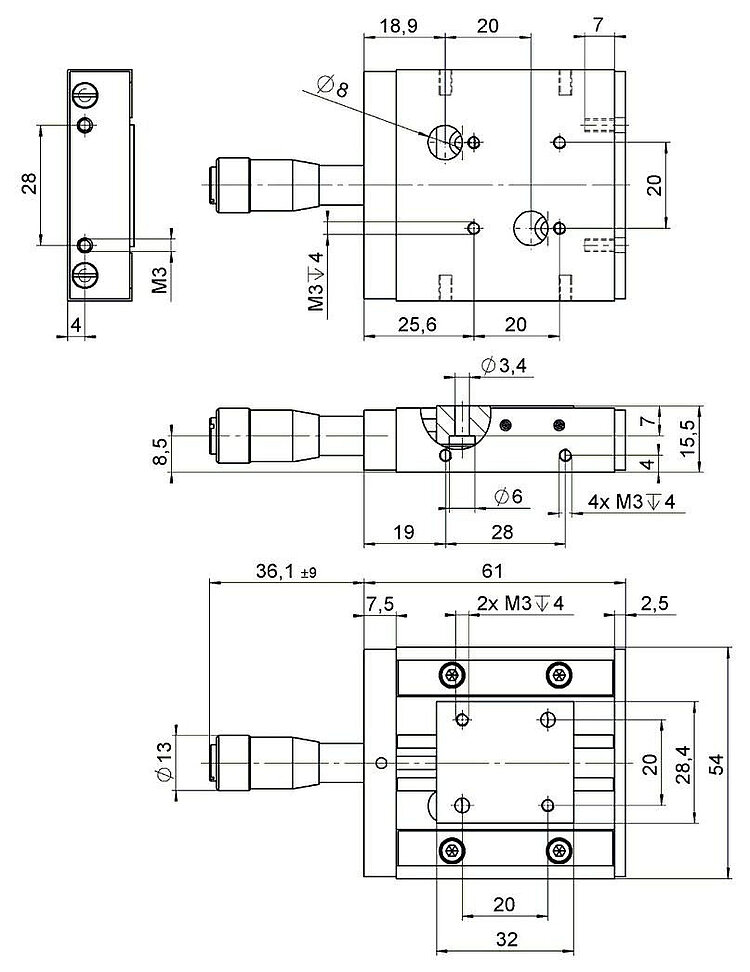

M-105.10, dimensions in mm

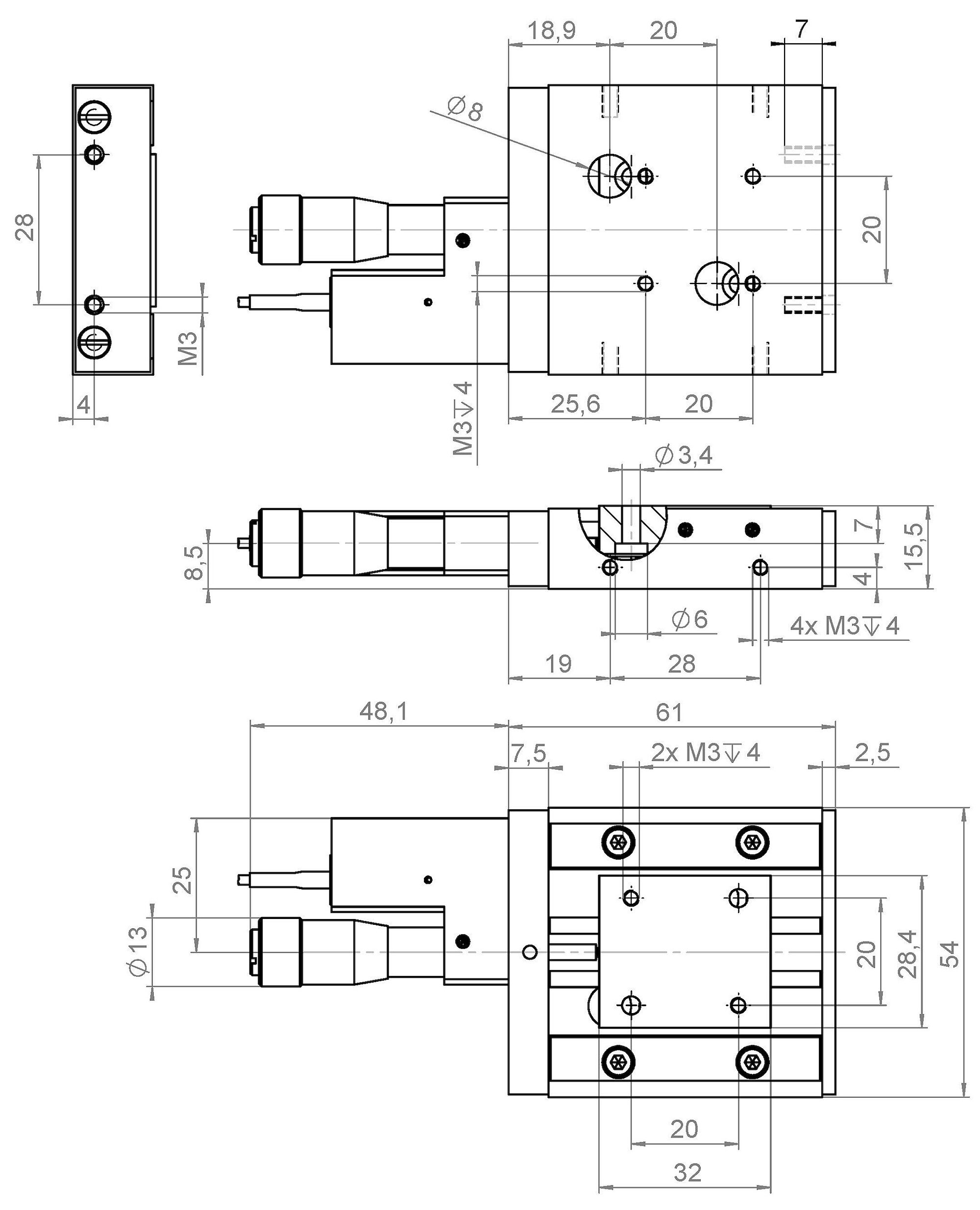

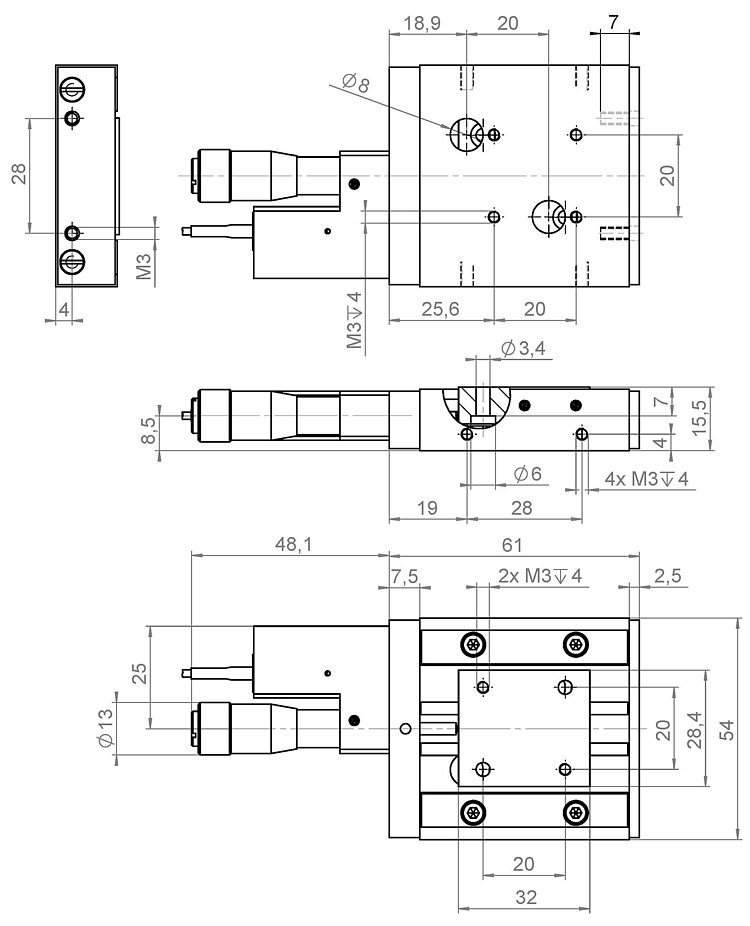

M-105.1P, dimensions in mm

The M-105-linear stages are available in various configurations and allow travel ranges up to 18 mm. They have crossed roller bearings that allow a guiding accuracy of better than 2 µm. The motion platform is preloaded with springs against the precision micrometer screw to suppress backlash.

With the XYZ version, the Z axis is mounted with an adapter bracket so that the load acts in the direction of the spring preload.

Manual sample manipulation.

Download datasheet specifications quote / order

Datasheet

Version / Date

2018-12-13

pdf - 700 KB

Version / Date

2018-12-13

pdf - 705 KB

Version / Date

2019-02-06

pdf - 764 KB

Version / Date

2019-07-16

pdf - 796 KB

	M-105.10	M-105.1P**	Unit	Tolerance
Travel range	18	18	mm
Piezo fine travel range	–	30	µm
Minimum incremental motion (piezo drive)	–	0.01	µm
Minimum incremental motion (micrometer screw)*	1	1	µm
Backlash	2	2	µm
Straightness	2	2	µm
Flatness	2	2	µm
Load capacity	100	100	N	max.
Push/pull force	20 / 4	20 / 4	N	max.
Lateral force	25	25	N	max.
Drive	Micrometer screw	P-854.00
Drive screw pitch (coarse / fine)	0.5 / –	0.5 / –	mm
Mass	0.32	0.38	kg
Housing material	St	St
Recommended piezo driver	–	E-610, E-500 system

* Motorized versions achieve up to 50 nm.

** The M-105.2P and M-105.3P versions are XY respective XYZ combinations of the M-105.1P.

Download datasheet downloads quote / order

Product Note

M-105.20, M-105.2B, M-105.30, M-105.3BA, M-105.3BB, M-105.81 and M-106.10, M-106.20, M-106.30

Version / Date

2018-12-11

pdf - 73 KB

English

Datasheet

Version / Date

2018-12-13

pdf - 700 KB

Version / Date

2018-12-13

pdf - 705 KB

Version / Date

2019-02-06

pdf - 764 KB

Version / Date

2019-07-16

pdf - 796 KB

Documentation

Overview of all possible combinations of PI linear, rotary and tilt stages

Version / Date

---

pdf - 760 KB

Version / Date

---

pdf - 763 KB

3D Models

zip - 267 KB

English

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-105.10

Microtranslation stage, 18 mm, non-lockable micrometer screw

Add to quote list Remove from quote list

M-105.11

Microtranslation stage, 18 mm, with lockable Micrometer screw

Add to quote list Remove from quote list

M-105.1B

Microtranslation stage, 18 mm, without drive

Add to quote list Remove from quote list

M-105.1P

Microtranslation stage, 18 mm, PiezoMike drive

Add to quote list Remove from quote list

M-105.2P

XY Microtranslation stage, 18 mm, PiezoMike drive

Add to quote list Remove from quote list

M-105.3P

XYZ Microtranslation stage, 18 mm, PiezoMike drive (with M-009.10 bracket for side mounting)

Add to quote list Remove from quote list
