P-841 Preloaded Piezo Actuators

Compact Actuators for High Loads and Forces, with Position Sensor

  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 90 µm
  • Compact housing
  • Push force capacity to 1000 N
  • Pull force capacity to 50 N
  • µs response time

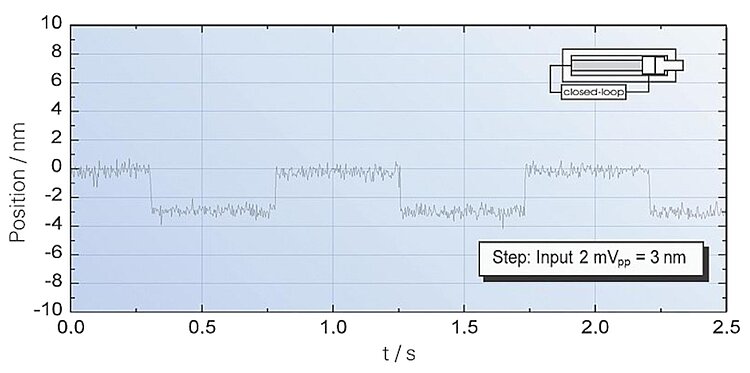

  • Subnanometer resolution
  • Versions with spherical tip
P-841 Preloaded Piezo Actuators
Product Description Specifications Downloads Quote / Order

Application fields

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Specifications

Datasheet

Datasheet P-841

Version / Date
2024-01-09
pdf - 707 KB
Version / Date
2024-01-09
pdf - 709 KB
Version / Date
2018-05-22
pdf - 708 KB

Downloads

Product Note

Product Note

Product Change Notification P-8XX.XX

Version / Date
2023-02-22
pdf - 92 KB
Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date
2021-04-19
pdf - 377 KB
English

Datasheet

Datasheet

Datasheet P-841

Version / Date
2024-01-09
pdf - 707 KB
Version / Date
2024-01-09
pdf - 709 KB
Version / Date
2018-05-22
pdf - 708 KB

Documentation

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V

Version / Date
1.2.0 11/2020
pdf - 958 KB
Version / Date
1.2.0 11/2020
pdf - 961 KB
Documentation

User Manual P841M0001

P-841 Preloaded piezo actuators

Version / Date
2021-01-29
pdf - 2 MB
Version / Date
2021-01-29
pdf - 2 MB

3D Models

3D Models

P-841 3D Model

zip - 83 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-841.10

Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range; 32 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-841.1B

Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range; 32 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; spherical tip; LEMO connectors; 1 m cable length

P-841.20

Preloaded piezo actuator; PICMA® piezo actuator drive; 30 µm travel range; 50 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-841.2B

Preloaded piezo actuator; PICMA® piezo actuator drive; 30 µm travel range; 50 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; spherical tip; LEMO connectors; 1 m cable length

P-841.30

Preloaded piezo actuator; PICMA® piezo actuator drive; 45 µm travel range; 68 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-841.3B

Preloaded piezo actuator; PICMA® piezo actuator drive; 45 µm travel range; 68 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; spherical tip; LEMO connectors; 1 m cable length

P-841.40

Preloaded piezo actuator; PICMA® piezo actuator drive; 60 µm travel range; 86 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-841.4B

Preloaded piezo actuator; PICMA® piezo actuator drive; 60 µm travel range; 86 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; spherical tip; LEMO connectors; 1 m cable length

P-841.60

Preloaded piezo actuator; PICMA® piezo actuator drive; 90 µm travel range; 122 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-841.6B

Preloaded piezo actuator; PICMA® piezo actuator drive; 90 µm travel range; 122 mm length; push force capacity 1000 N; pull force capacity 50 N; SGS, direct position measuring; spherical tip; LEMO connectors; 1 m cable length
