L-836.APxD Adapter Bracket

NEW

For Mounting L-8x6 Stages Vertically

Simple Z mounting of L-8x6 stages
Delivery includes mounting kit

quote / order

L-836.AP1

Download datasheet specifications quote / order

Datasheet

Datasheet L-836.APxD

Version / Date

2025-05-08

pdf - 1 MB

Version / Date

2025-05-08

pdf - 1 MB

Download

	L-836.AP1D	L-836.AP2D	L-836.AP3D
Material	Anodized aluminum alloy	Anodized aluminum alloy	Anodized aluminum alloy
Overall mass	340 g	500 g	715 g

Download datasheet downloads quote / order

Datasheet

Datasheet L-836.APxD

Version / Date

2025-05-08

pdf - 1 MB

Version / Date

2025-05-08

pdf - 1 MB

Download

3D Models

L-836.APxD 3D Model

Version / Date

2025-05-08

zip - 2 MB

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

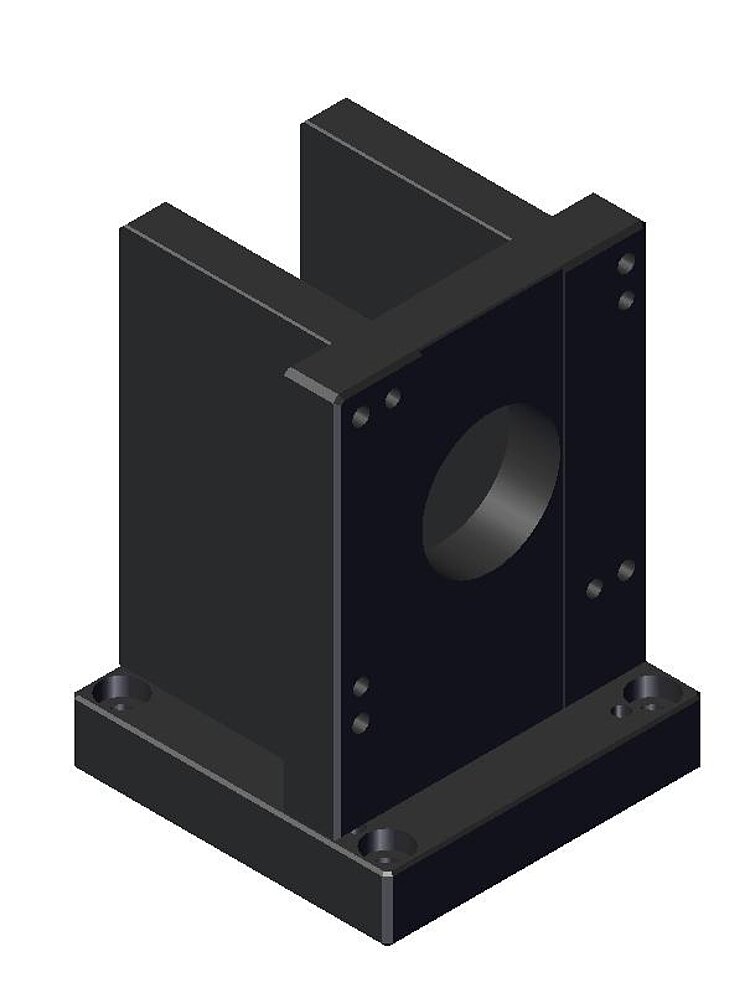

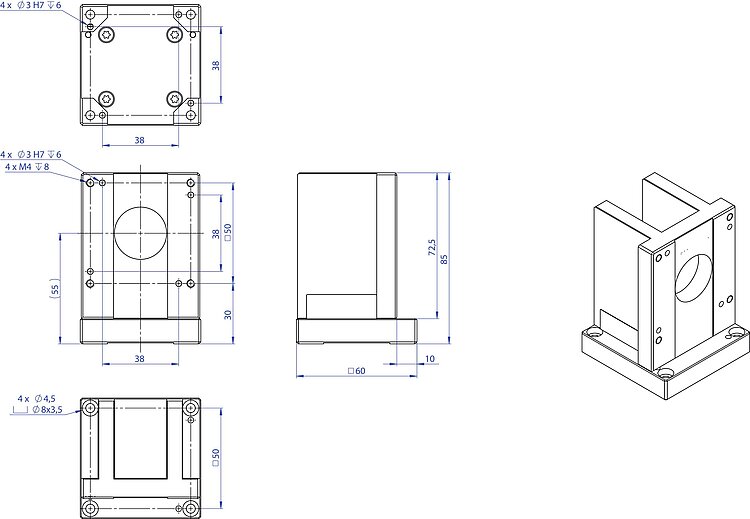

L-836.AP1D NEW!

Adapter bracket for vertical mounting of L-8x6 stages; length 85 mm; incl. mounting kit

Add to quote list Remove from quote list

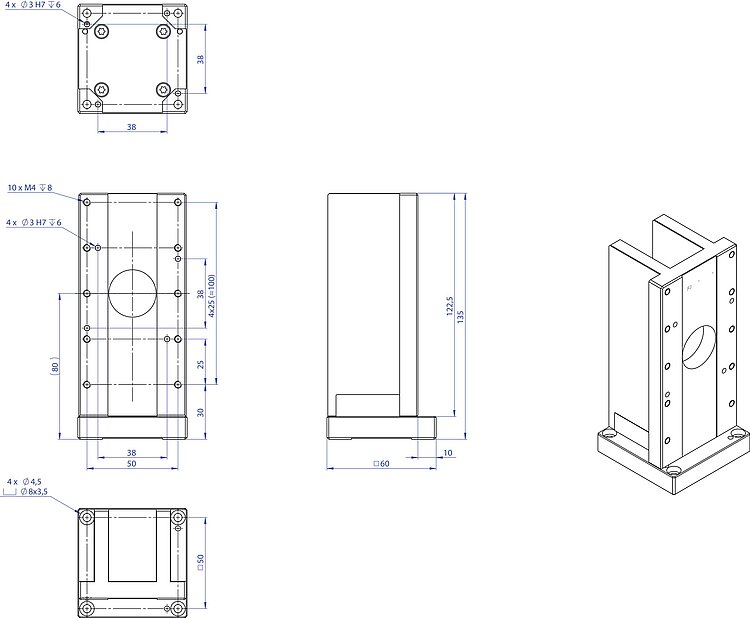

L-836.AP2D NEW!

Adapter bracket for vertical mounting of L-8x6 stages; length 135 mm; incl. mounting kit

Add to quote list Remove from quote list

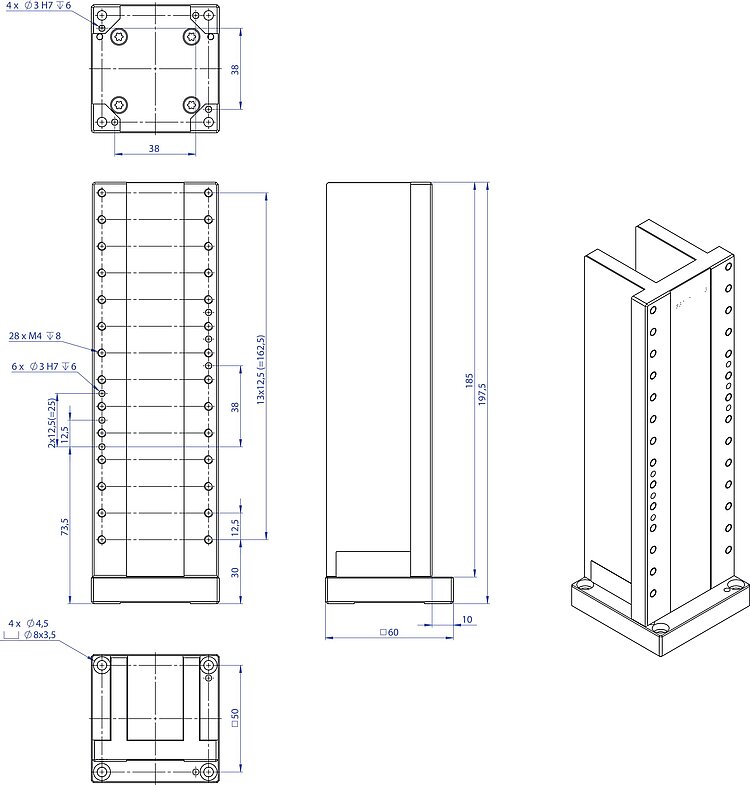

L-836.AP3D NEW!

Adapter bracket for vertical mounting of L-8x6 stages; length 197.5 mm; incl. mounting kit

Add to quote list Remove from quote list

Ask for custom design quote list

Click on QUOTE / ORDER

Add variant to quote list

Fill out quote form

Send price request to PI

We will contact you shortly

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
