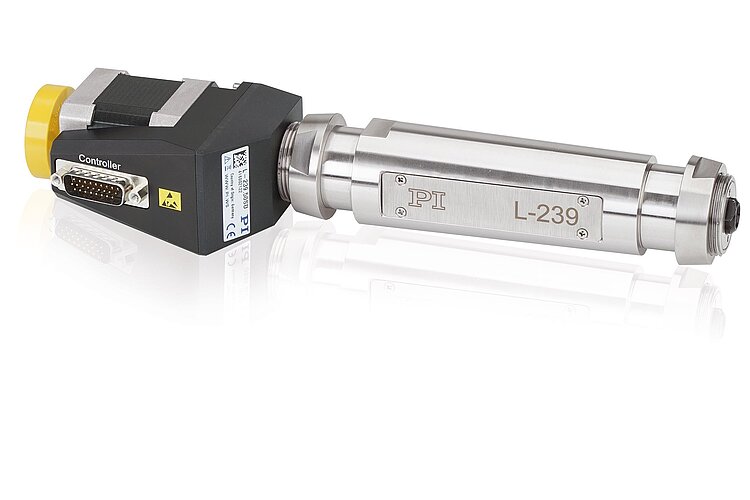

L-239 High-Load Linear Actuator

Dynamic, High-Resolution Precision Drive with DC or Stepper Motor

  • High push/pull force to 300 N
  • Travel range 52 mm (2")
  • Minimum incremental motion 0.1 µm
  • Velocity to 50 mm/s
  • Preloaded, low-friction ball screw
L-239 High-Load Linear Actuator
Product Description Specifications Downloads Quote / Order

Product overview

High-resolution high-load linear actuator. Stepper motor for high torque. Highly dynamic, closed-loop DC and BLDC motors for high velocities. Robust design for industrial environments.

High-quality components

  • Ground ball screws for high velocities.
  • Stable bearing at shaft output reduces lateral forces on the pusher.
  • Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact.
  • Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications.
  • Optional on request and at additional charge: Increase of push/pull force to 1000 N.

Application fields

Research. Automation. Optical alignment.

Specifications

Datasheet

Datasheet L-239

Version / Date
2020-06-25
pdf - 667 KB
Version / Date
2020-06-25
pdf - 670 KB
Version / Date
2021-01-14
pdf - 564 KB

Downloads

Datasheet

Datasheet

Datasheet L-239

Version / Date
2020-06-25
pdf - 667 KB
Version / Date
2020-06-25
pdf - 670 KB
Version / Date
2021-01-14
pdf - 564 KB

Documentation

Documentation

User Manual MP156

L-239 High-Load Linear Actuator

Version / Date
1.1.2 2020-06-26
pdf - 952 KB
Version / Date
1.1.2 2020-06-26
pdf - 959 KB
Documentation

Short Instructions MP159EK

Linear Actuators: L-2xx

Version / Date
2.0.0 01/2021
pdf - 1 MB
Version / Date
2.0.0 01/2021
pdf - 818 KB

3-D Models

3-D Models

L-239 3-D model

zip - 5 MB
Separate connection cable required for motor and sensor connection respectively.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
