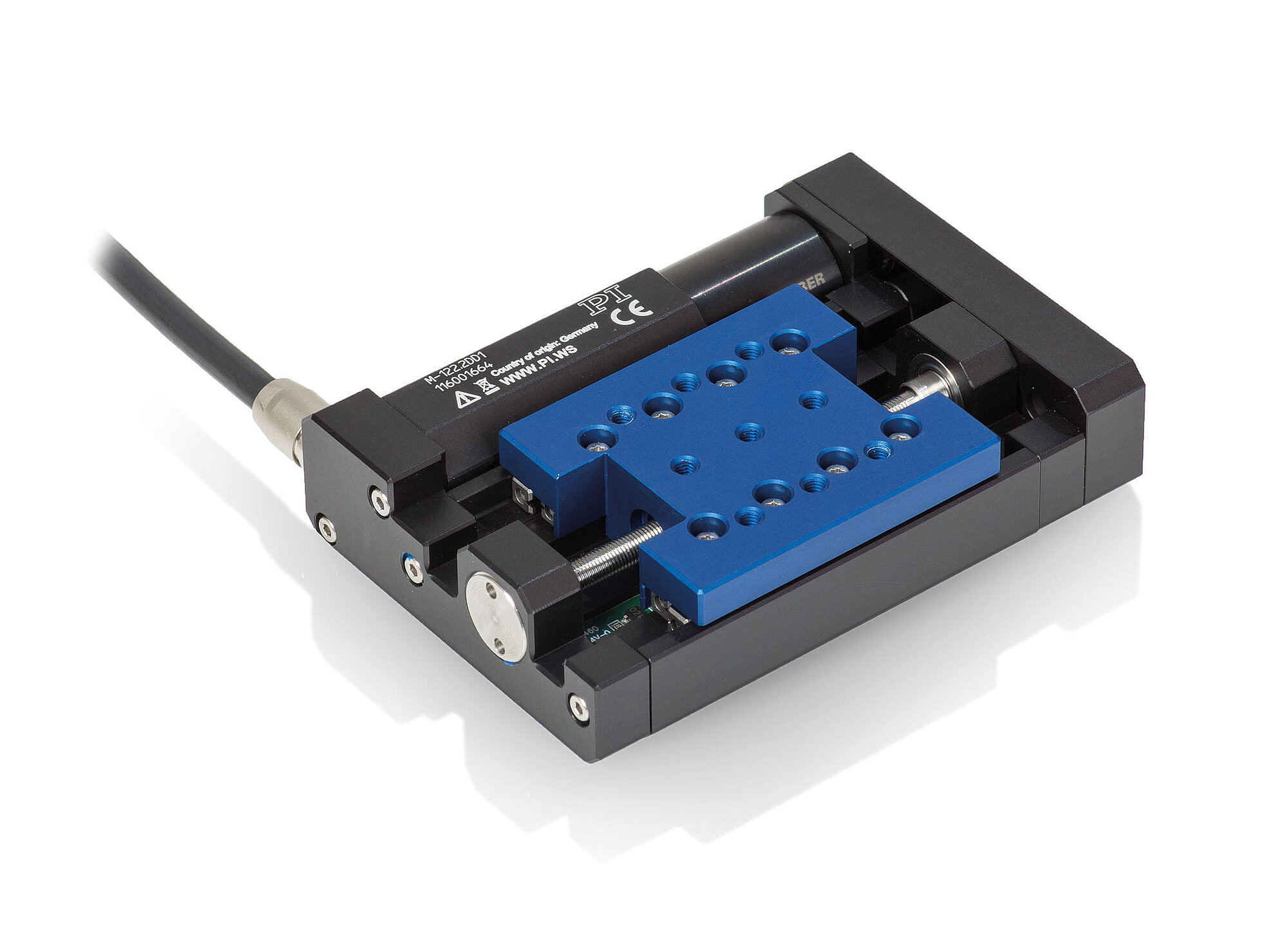

M-122.2DD1 microtranslation stage

Compact Linear Stage with Direct Position Measuring

M-122.2DD1 microtranslation stage
Product Description Specifications Downloads Quote / Order
  • Travel range 25 mm
  • Integrated linear encoder option for highest accuracy with 0.1 µm Resolution
  • Min. incremental motion 0.2 µm
  • Max. velocity 20 mm/s
  • Ball screw for high velocities and number of cycles

Direct position measurement with incremental encoder

Noncontact optical encoders measure the actual position directly at the motion platform with the greatest accuracy so that nonlinearity, mechanical play or elastic deformation have no influence on position measuring.

Application fields

Optical alignment, precision automation.

Specifications

Datasheet

Datasheet M-122.2DD1

Version / Date
2018-01-15
Version / Date
2018-01-15
Version / Date
2018-01-15
Document language
pdf - 684 KB
pdf - 693 KB
pdf - 752 KB

Downloads

Datasheet

Datasheet

Datasheet M-122.2DD1

Version / Date
2018-01-15
Version / Date
2018-01-15
Version / Date
2018-01-15
Document language
pdf - 684 KB
pdf - 693 KB
pdf - 752 KB

Documentation

Documentation

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx
Version / Date
3.0.0 11/2018
Document language English
pdf - 2 MB
Documentation

PI Mounting Adapters for Micropositioning

Overview of all possible combinations of PI linear, rotary and tilt stages
Version / Date
---
Version / Date
---
Document language
pdf - 760 KB
pdf - 763 KB
Documentation

User Manual MP61

M-122 Micropositioning Stage
Version / Date
2.0.0 2019-06-19
Version / Date
2.0.0 2019-06-19
Document language
pdf - 1 MB
pdf - 1 MB

3-D Models

3-D Models

M-122.2DD1 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

M-122.2DD1
Compact linear stage, 25 mm travel range, DC motor, incremental linear encoder with A/B quadrature signal transmission, 0.1 µm sensor resolution, 0.5 m Cable length
