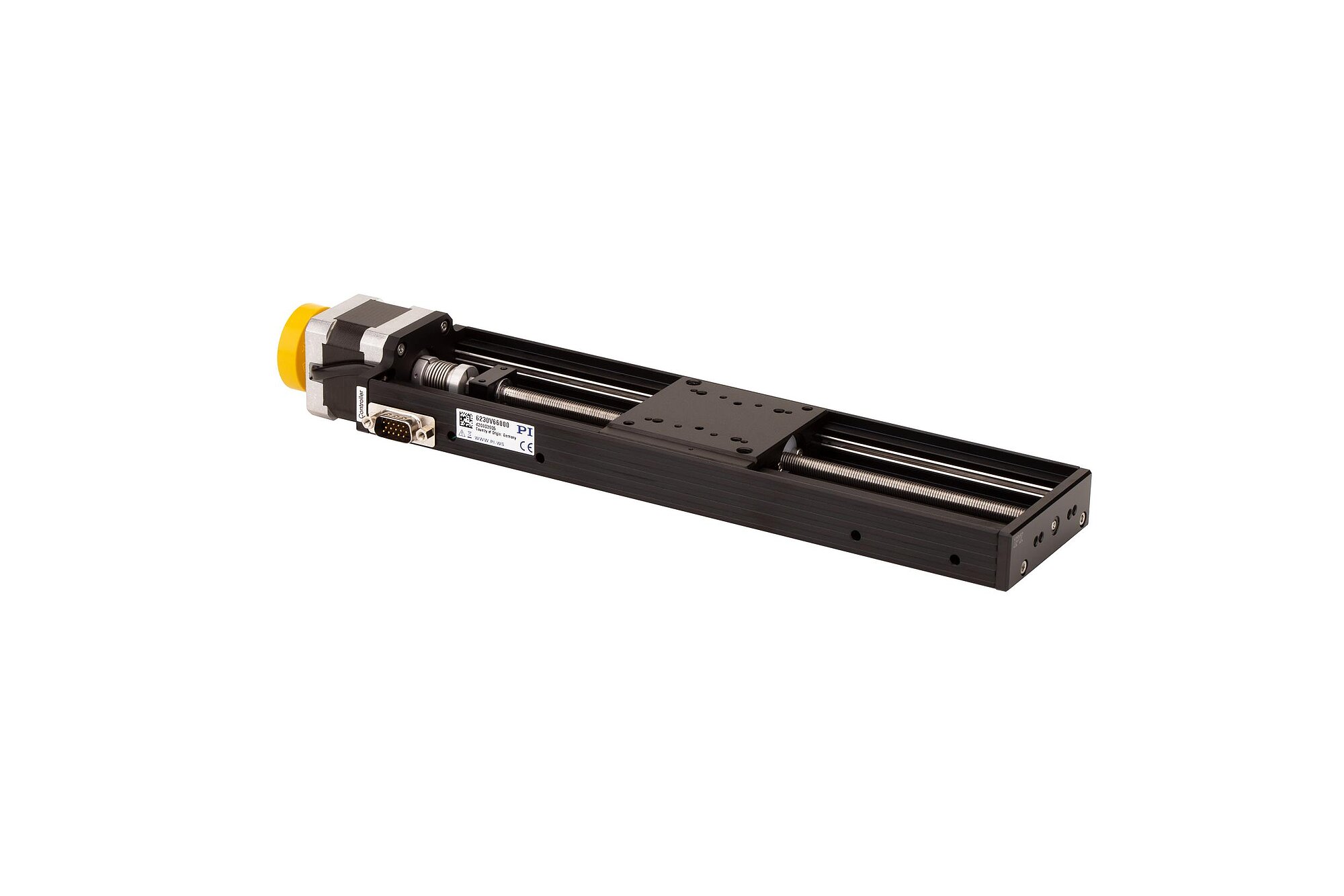

VT-80 V6 Linear Stage Suitable for Vacuum

Basic Version for Universal Fields of Use

VT-80 V6 Linear Stage Suitable for Vacuum
Product Description Specifications Downloads Quote / Order

Standard-class linear stage

Recirculating ball bearings and precision leadscrew for smooth and even feed. Stress-relieved aluminum base for highest stability. Compact XY combinations. Two mechanical limit switches.

Recirculating ball bearings

When carefully assembled, recirculating ball bearings are distinguished by a beneficial combination of high load capacity, lifetime, maintenance-free operation, and guiding accuracy. The moving part of the stages is supported by four preloaded linear ball bearing units which run on two guide rails. Each bearing unit is made up of two independent rows of circulating ball bearings.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the drive screw a material with particularly low outgassing is used. Therefore, a bakeout temperature of up to 80 °C can be reached. With this and other modifications of the PI V6 vacuum class, this positioner can be used up to 10-6 hPa.

Drive

2-phase stepper motor for high torque even at low velocities and high resolution

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.

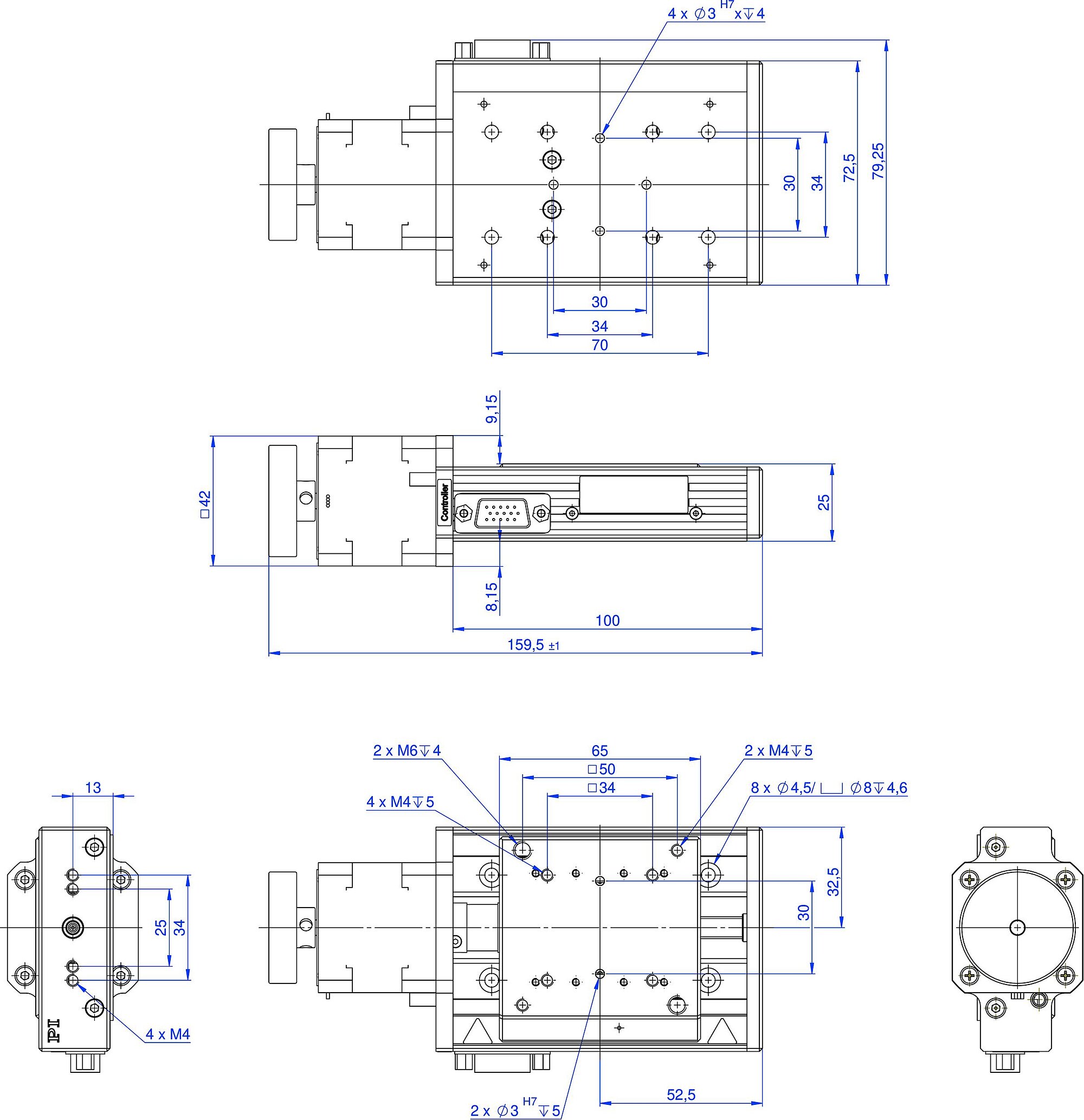

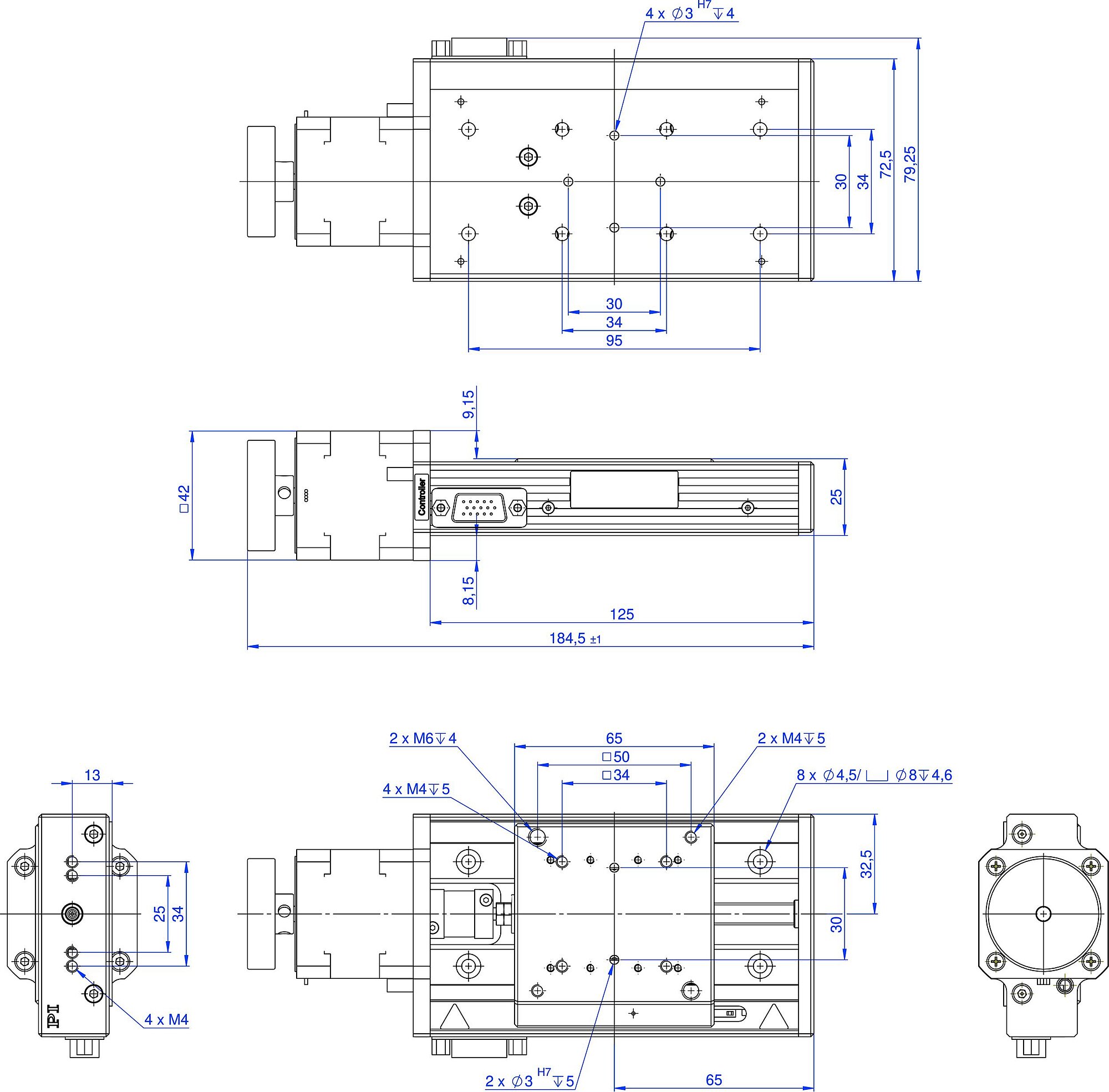

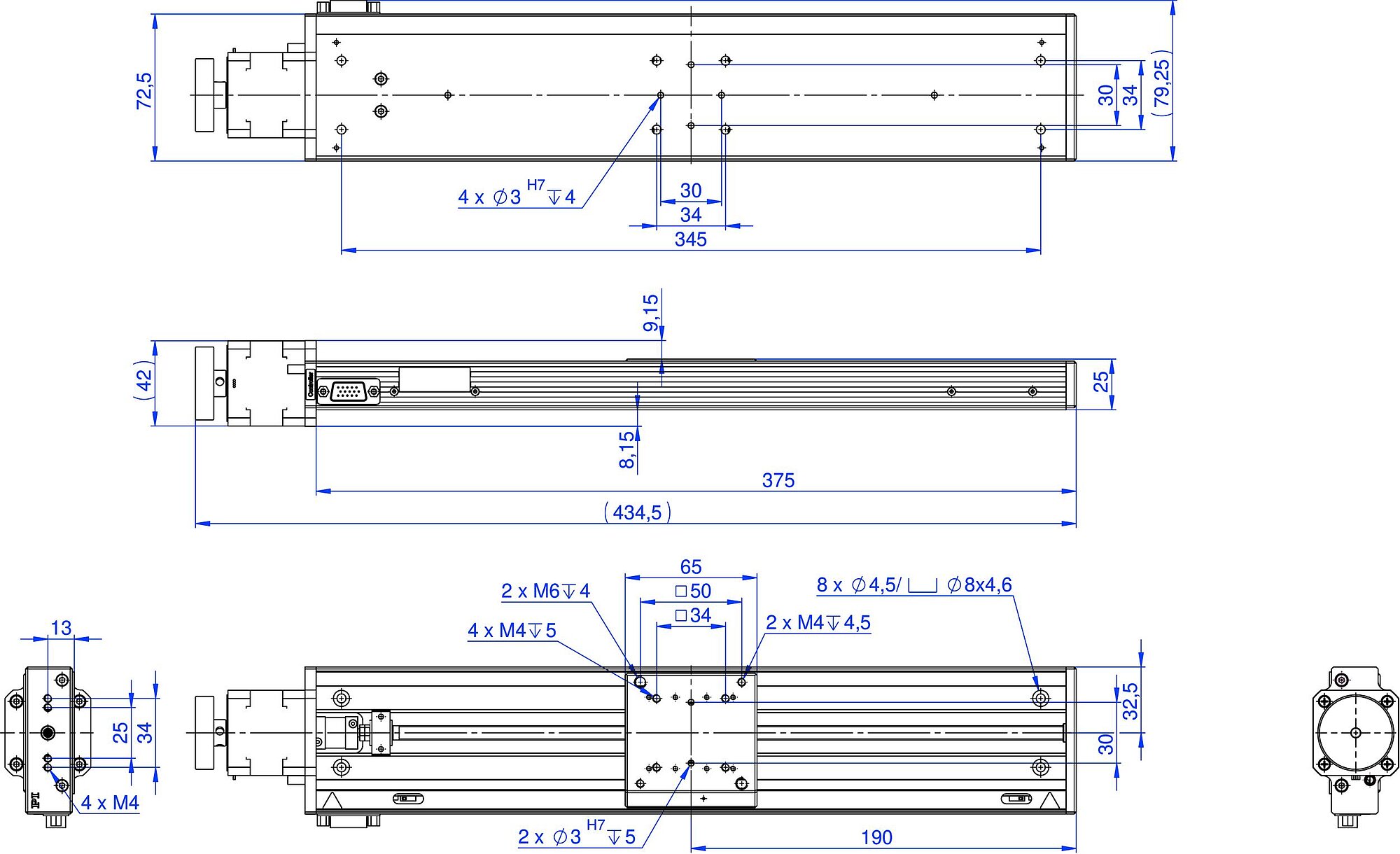

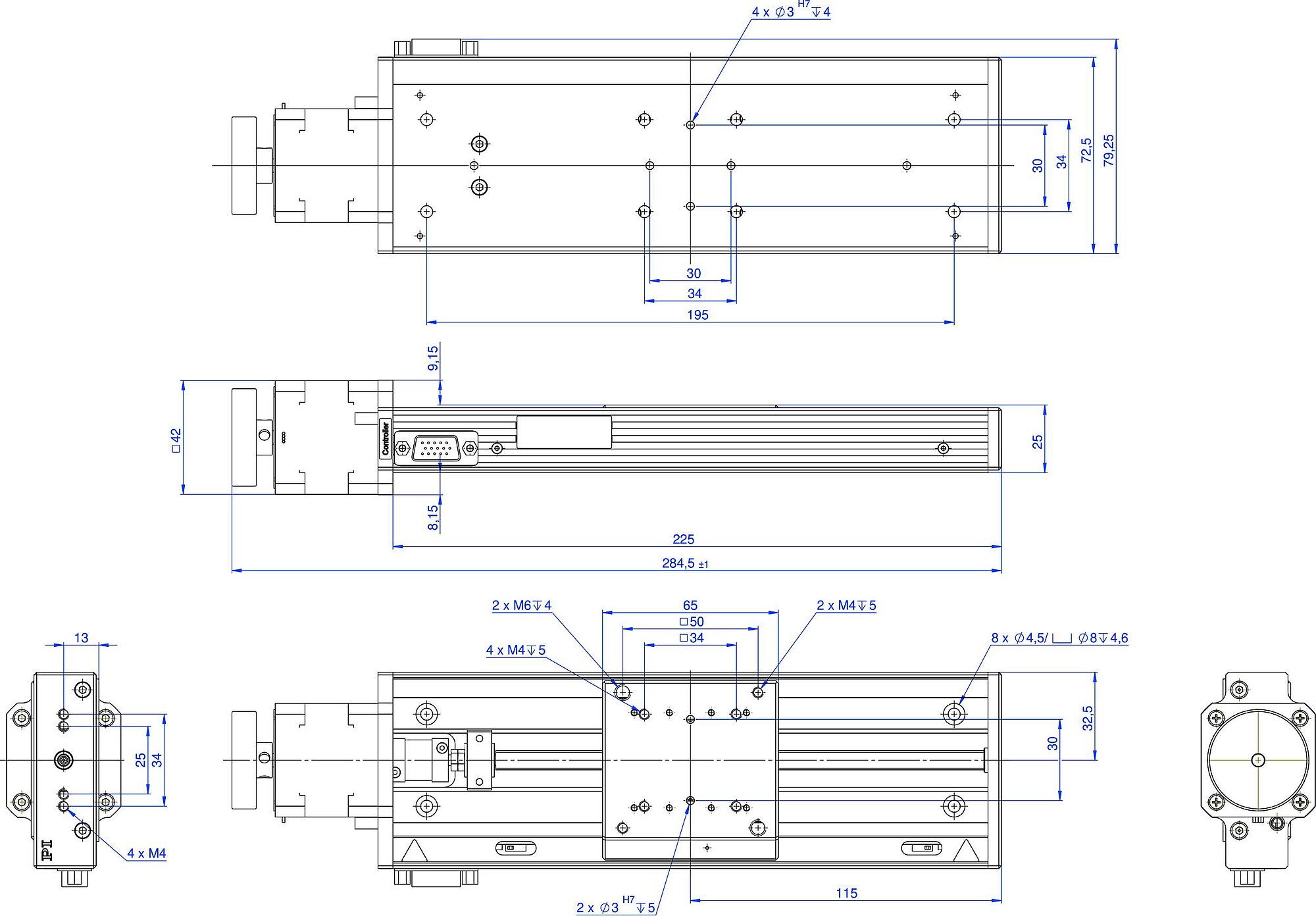

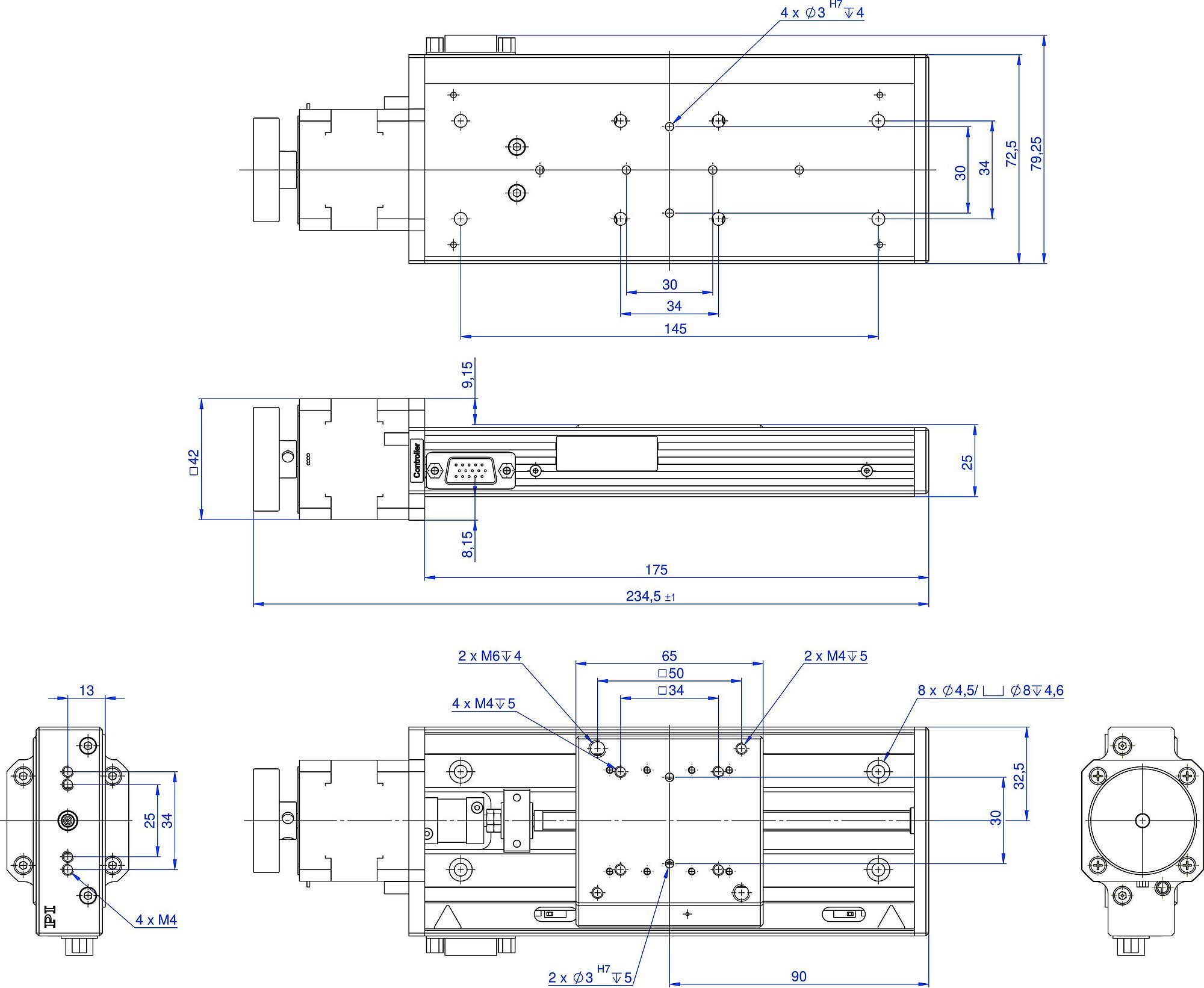

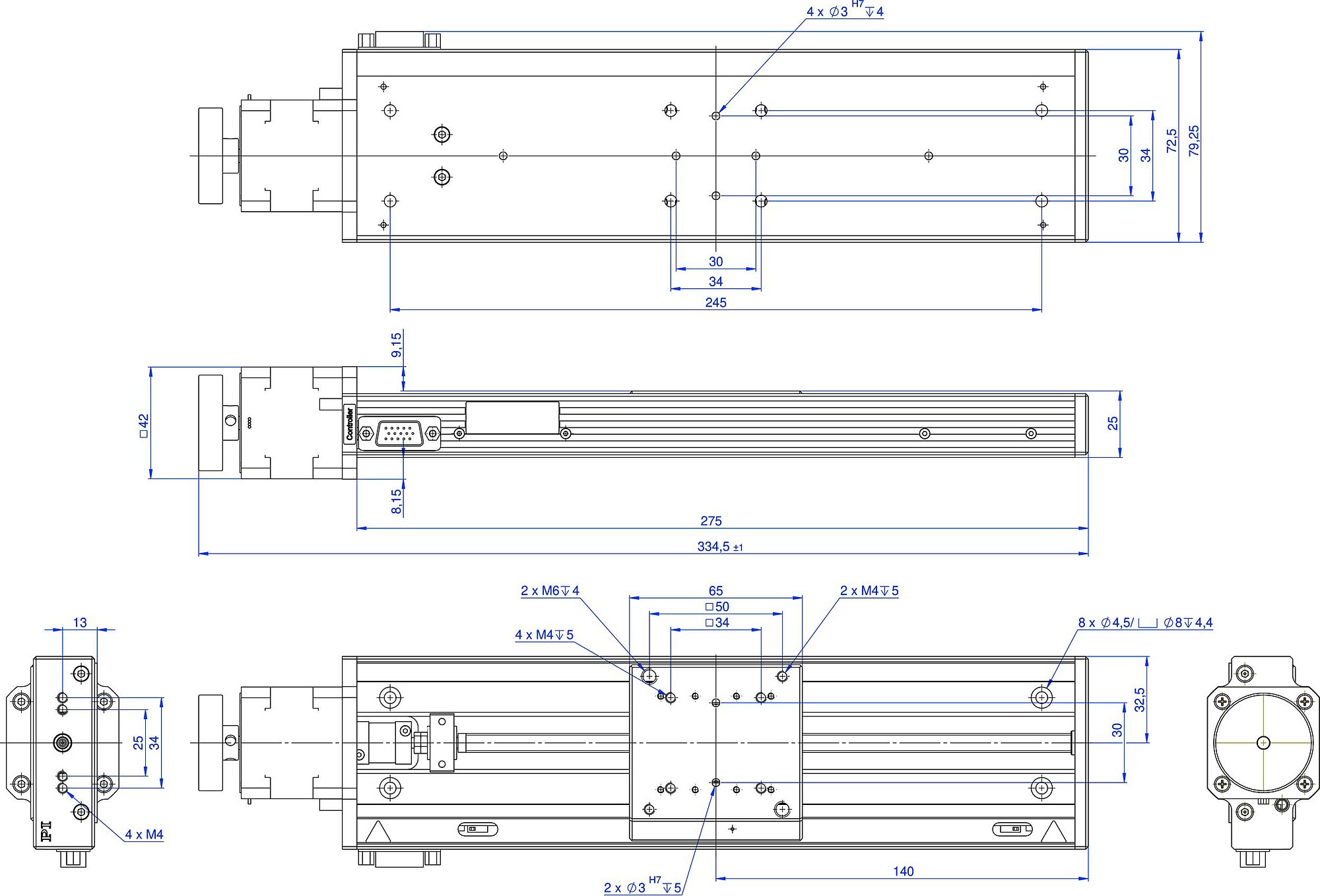

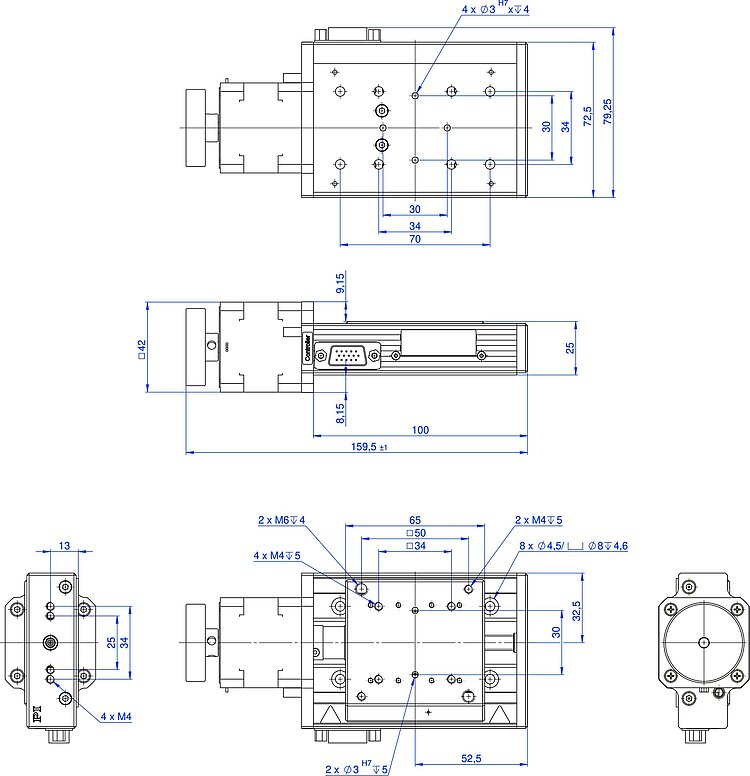

Specifications

Datasheet

Datasheet VT-80 V

Version / Date
2020-09-16
Version / Date
2020-09-16
Document language
pdf - 1 MB
pdf - 1 MB

Downloads

Datasheet

Datasheet

Datasheet VT-80 V

Version / Date
2020-09-16
Version / Date
2020-09-16
Document language
pdf - 1 MB
pdf - 1 MB

Documentation

Documentation

User Manual 6230T0003

6230V63000 Precision linear stage with stepper drive for vacuum applications (1 E-6 hPa)
Version / Date
2020-05-08
Document language English
Request download link
Documentation

User Manual 6230T0001

6230V61000 Precision linear stage with stepper drive for vacuum applications (1 E-6 hPa)
Version / Date
2020-06-29
Document language English
Request download link
Documentation

User Manual VT-80

Linear Stage
Version / Date
2019-12-04
Version / Date
2019-12-05
Document language
Request download link
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
1.5.0 October 2017
pdf - 395 KB

3-D Models

3-D Models

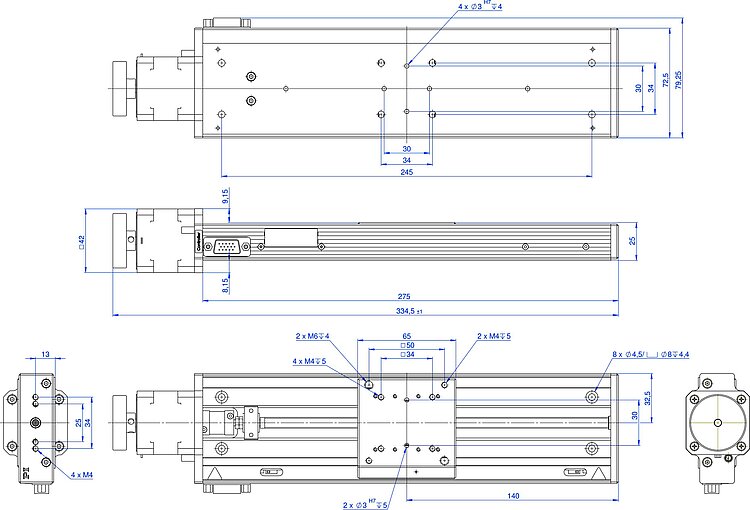

3-D model VT-80 V6

Version / Date
2020-03-30
Document language English
Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Adapter brackets

Separate connection cable required for motor and sensor connection respectively.
