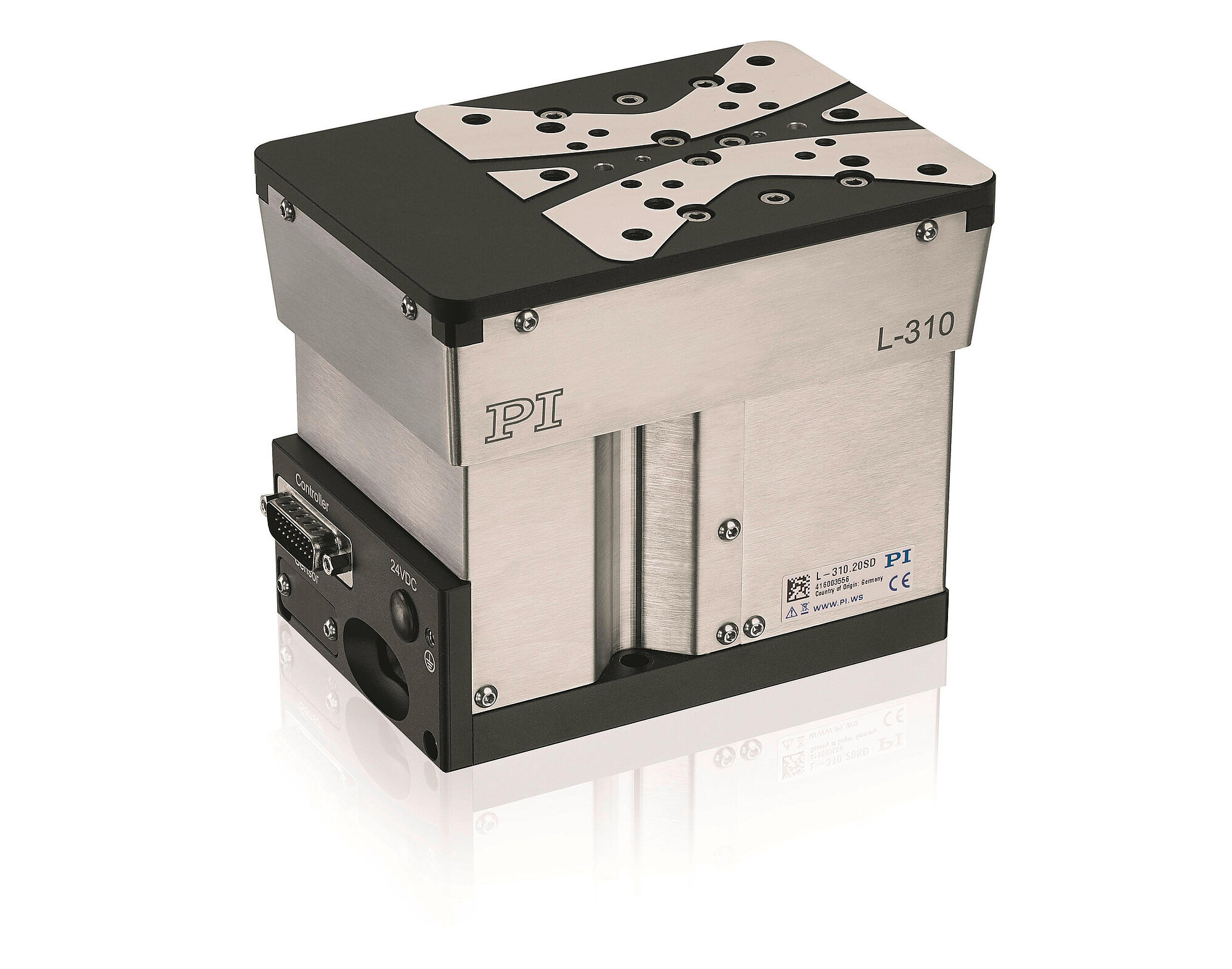

L-310 Precision Z Stage

Compact Multi-Axis Combinations with Linear and Rotation Stages

L-310 Precision Z Stage
Product Description Specifications Downloads Quote / Order
  • Travel range 26 mm (1")
  • High-resolution encoder
  • DC, BLDC, and stepper motors
  • Zero-play ball screw
  • MTBF 10000 h
  • Load capacity to 10 kg

Precision-class Z stage

High guiding accuracy and stiffness due to ball screws and crossed roller guides. Stress-relieved aluminum base for highest stability. Vacuum versions available on request. Noncontact limit and reference point switches (Hall effect). Reference point switch with direction sensing in the middle of the travel range.

Drive types

  • .xxSD variant: 2-phase stepper motor for high torque even at low velocities and high resolution.
  • .xxAD variant: ActiveDrive DC motor for high velocity: Control via pulse-width-modulated (PWM) signals, the operating voltage is attained via an amplifier integrated in the motor housing.
  • .023xxx variant: DC servo motor
  • .025xxx variant: Brushless DC motor (BLDC) for high rotational velocity. Smooth running and low wear, therefore higher lifetime.

Position measurement

  • Versions with DC motor: Rotary encoder
  • Optional: Integrated linear encoder, installed centrically.

Highly accurate position measuring with incremental encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Minimum incremental motion and slow motion

In conjunction with the SMC Hydra controller, versions with stepper motor and integrated linear encoder (L-310.xASD) achieve repeatable minimum incremental motion in the range of the sensor resolution. The same configuration achieves constant low velocities of a few sensor increments per second.

Application fields

Precision positioning in industry and research, high duty cycles.

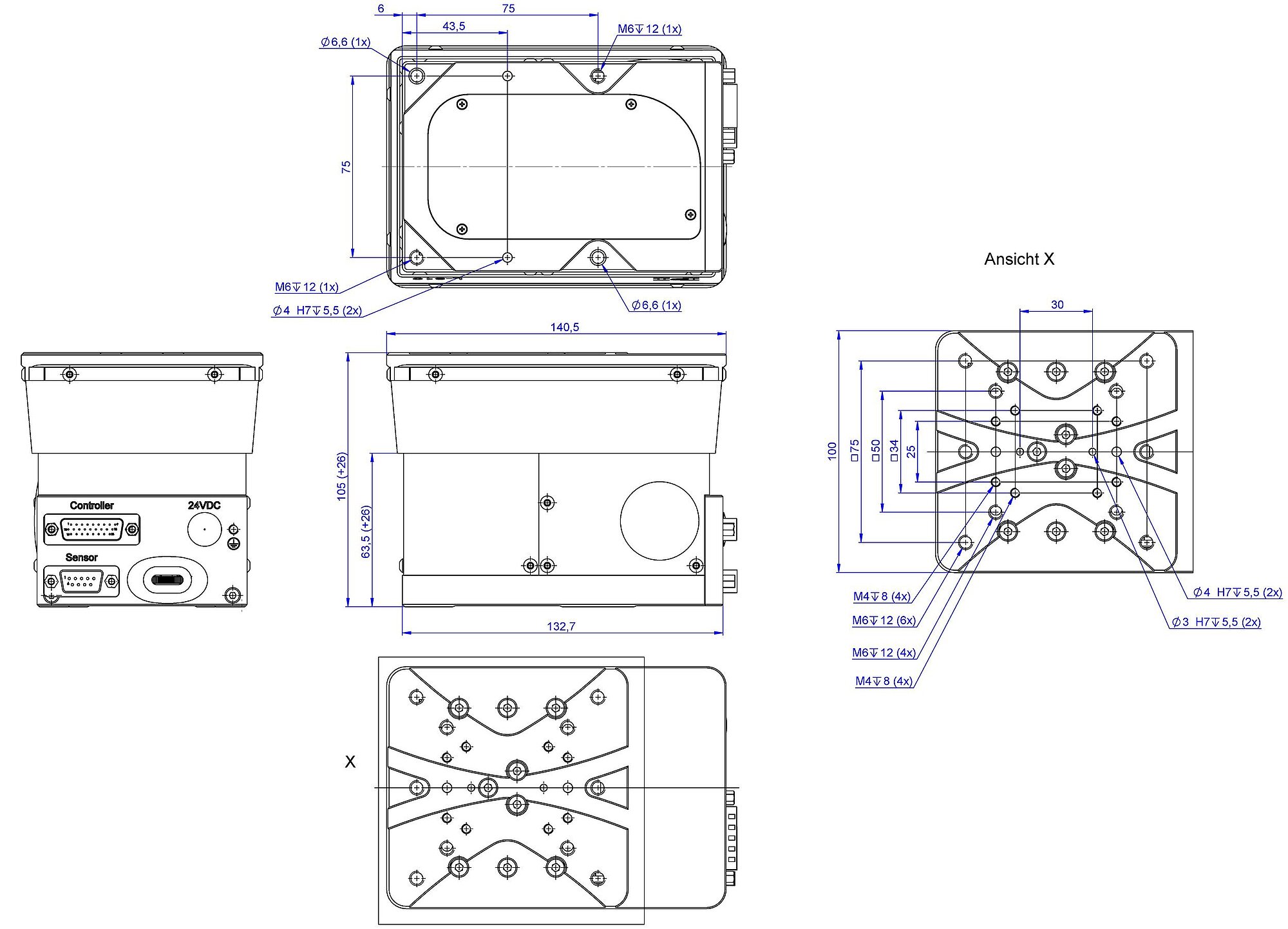

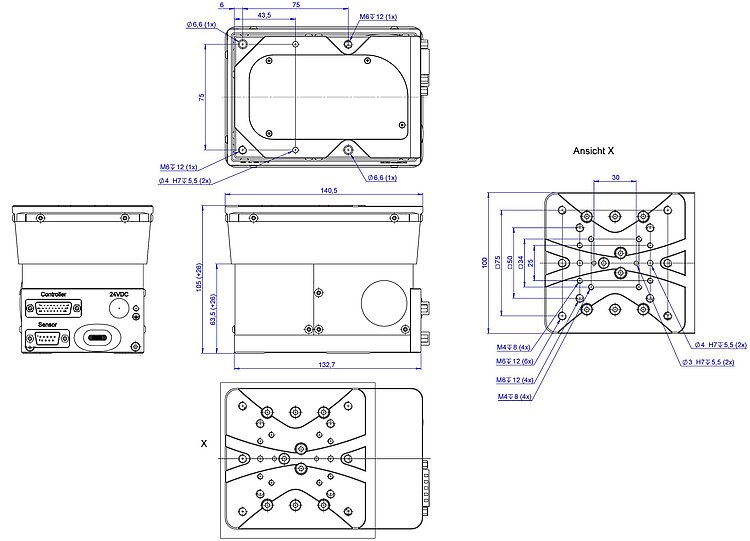

Specifications

Datasheet L-310

Version / Date
2018-09-18
Version / Date
2018-09-18
Version / Date
2018-10-16
Version / Date
2018-12-12
Document language
pdf - 704 KB
pdf - 706 KB
pdf - 801 KB
pdf - 755 KB

Downloads

Datasheet

Datasheet L-310

Version / Date
2018-09-18
Version / Date
2018-09-18
Version / Date
2018-10-16
Version / Date
2018-12-12
Document language
pdf - 704 KB
pdf - 706 KB
pdf - 801 KB
pdf - 755 KB

Documentation

User Manual MP157

L-310 Precision Z Stage
Version / Date
1.1.0 2018-07-16
Version / Date
1.1.0 2018-07-16
Document language
pdf - 1 MB
pdf - 1 MB

3-D Models

L-310 3-D model

Version / Date
2017-01-10

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

L-310.2ASD
precision Z stage, 26 mm travel range, 55 N load capacity, stepper motor, linear encoder with sin/cos signal transmission, 20 µm sensor signal period , including 3 m cable set
L-310.023211
precision Z stage, 26 mm travel range, 100 N load capacity, DC motor, linear encoder with sin/cos signal transmission, 20 µm sensor signal period , including 3 m cable set
L-310.023212
precision Z stage, 26 mm travel range, 100 N load capacity, DC motor, linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution , including 3 m cable set
L-310.025212
precision Z stage, 26 mm travel range, 100 N load capacity, brushless DC motor, linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution , including 3 m cable set
L-310.24AD
precision Z stage, 26 mm travel range, 30 N load capacity, ActiveDrive DC motor, linear encoder with A/B quadrature signal transmission, 50 nm sensor resolution , including 3 m cable set
