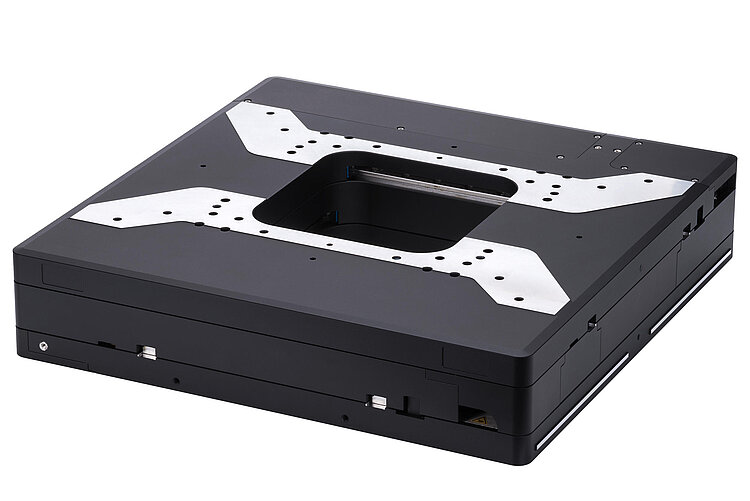

L-738 Precision XY Stage

Clear Aperture, High Travel Accuracy, and Stability

  • Travel range 102 mm × 102 mm (4")
  • Large aperture, 150 mm × 150 mm
  • Unidirectional repeatability to 0.05 µm
  • Velocity to 90 mm/s
  • 2-phase stepper motors, DC‑motors
  • Incremental linear encoder with 1 nm resolution
L-738 Precision XY Stage
Product Description Specifications Downloads Quote / Order

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Optical reference and limit switches.

Recirculating ball bearings

When carefully assembled, recirculating ball bearings are distinguished by a beneficial combination of high load capacity, lifetime, maintenance-free operation, and guiding accuracy. The moving part of the stages is supported by four preloaded linear ball bearing units which run on two guide rails. Each bearing unit is made up of two independent rows of circulating ball bearings.

Drive types

  • 2-phase stepper motor for high torque even at low velocities and higher resolution
  • DC motor for high velocity constancy, low vibration, and high velocities

Application fields

Medical industry. Laser cutting. Biotechnology. Metrology. Microscopy.

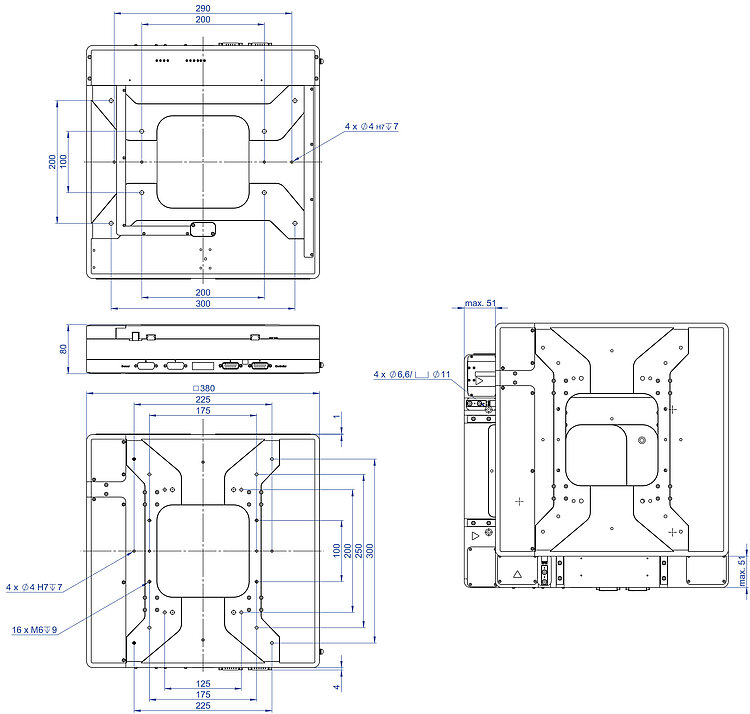

Specifications

Datasheet

Datasheet L-738

Version / Date
2020-09-16
pdf - 2 MB
Version / Date
2020-09-16
pdf - 2 MB
Version / Date
2018-10-23
pdf - 799 KB
Version / Date
2019-01-08
pdf - 770 KB

Downloads

Datasheet

Datasheet

Datasheet L-738

Version / Date
2020-09-16
pdf - 2 MB
Version / Date
2020-09-16
pdf - 2 MB
Version / Date
2018-10-23
pdf - 799 KB
Version / Date
2019-01-08
pdf - 770 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
2.0.0 01/2020
pdf - 736 KB
Version / Date
2.0.0 01/2020
pdf - 749 KB
Documentation

User Manual MP183

L-738 / V-738 Precision XY Stage

Version / Date
1.1.3 2020-06-30
pdf - 915 KB
Version / Date
1.1.3 2020-06-30
pdf - 924 KB

3-D Models

3-D Models

3-D model L-738

Version / Date
2018-07-16
zip - 9 MB
Separate connection cable required for motor and sensor connection respectively.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

L-738.051111
Precision XY stage, 380 mm × 380 mm width, 102 × 102 mm travel range, 150 × 150 mm clear aperture, stepper motor , incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period
