A-82x PIglide Motion Controller for 4, 6 or 8 Axes

For Stages with Direct Drive and High Power Requirements, TCP/IP Interface

  • 4, 6 or 8 high-performance motion axes
  • Fully integrated closed-loop servo control, amplifier module, and power supplies
  • For voice coil drives, DC motors, and brushless 3-phase motors
  • Quiet PWM drives. Optional: NanoPWM high-performance drive module
  • Encoder inputs support incremental (analog sine/cosine and RS-422) and absolute (BiSS-C, EnDat 2.1/2.2) encoder
  • 10 A continuous current / 20 A peak output current per axis
A-82x PIglide Motion Controller for 4, 6 or 8 Axes
Product Description Specifications Downloads Quote / Order

Overview

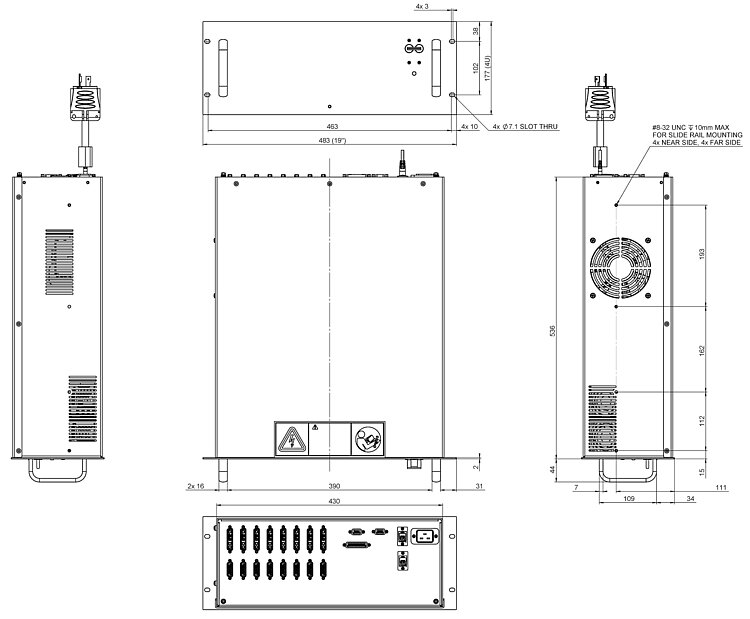

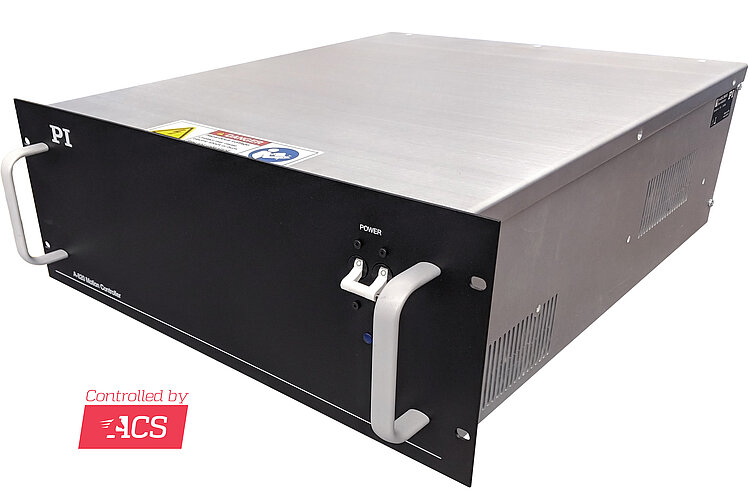

The A-82x motion controller series from PI offers a fully integrated electronics solution with controller, drives, and power supplies in a compact 4-U-high 19-inch rack unit. The A-82x controllers are designed and optimized for PIglide air bearing stages that are equipped with direct drive linear and rotation servo motors, and high-resolution encoders. The A-82x motion controller features the state-of-the-art ACS SPiiPlusEC motion controller and EtherCAT master.

Standard options include inputs for incremental sine/cosine and absolute encoders that use the BiSS-C data protocol. Support for sine/cosine encoders has an integrated interpolation factor of 16384x. All controllers feature integrated flash memory for stored motion programs and parameters.

The A-82x controllers can be operated in stand-alone mode running stored programs, or controlled via an external PC. A PC is required for programming and startup. All software is supplied with the controller.

If the controller is purchased together with a PIglide air bearing stage or positioning system, PI will perform the servo tuning, startup of the controller, and error calibration, and supply a complete ready-to-use positioning system.

The NanoPWM technology from ACS is integrated into the A-824.2Nx00 models. They offer the best possible solution for demanding positioning applications: Subnanometer position holding, tracking errors limited to a few nanometers, optimal velocity constancy. NanoPWM are a genuine alternative to linear drives: Comparable performance at a lower price with less space required for the overall system.

Options and Upgrades

  • Absolute encoders or incremental encoders (can be combined according to customer specifications for all axes of the controller)
  • G-Code programming
  • Input shaping
  • ServoBoostTM upgrade. Provides better, more consistent servo performance that is insensitive to noise or changes in the system.
  • ServoBoostTM PLUS upgrade. Provides higher position stability and velocity constancy.
  • Additional control axes for external drives via EtherCAT
  • Alternative customized packaging for OEM setups

Specifications

Datasheet

Datasheet A-82x

Version / Date
2023-06-26
pdf - 603 KB
Version / Date
2023-06-26
pdf - 603 KB
Version / Date
2019-01-14
pdf - 770 KB

Downloads

Datasheet

Datasheet

Datasheet A-82x

Version / Date
2023-06-26
pdf - 603 KB
Version / Date
2023-06-26
pdf - 603 KB
Version / Date
2019-01-14
pdf - 770 KB

Documentation

Documentation

User Manual A824D001

A-824.21xxx 4-Axis High-Power Motion Controller

Version / Date
V 2.1 2020-09-10
pdf - 2 MB
English
Documentation

User Manual A824D002

A-824.2NXXX 4-Axis High-Power NanoPWM Motion Controller.

Version / Date
V 1.2 2021-08-23
pdf - 2 MB
English
Documentation

User Manual A826D002

A-826.21xxx 6-Axis High-Power Motion Controller

Version / Date
V 0.0 2020-12-04
pdf - 1 MB
Documentation

User Manual A828D002

A-828.21xxx 8-Axis High-Power Motion Controller

Version / Date
V 0.0 2020-12-10
pdf - 2 MB

3-D Models

3-D Models

A-82x 3-D model

Version / Date
2018-10-01
zip - 5 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Four axes

Six axes

Eight axes

Optional

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Products Related Controllers
