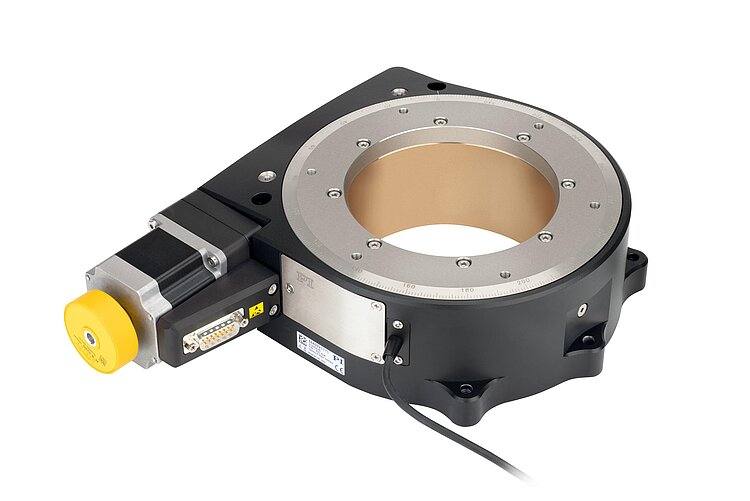

PRS-200 Precision Rotation Stage

Large Aperture, High Travel Accuracy

  • Unlimited travel range
  • Repeatability to 5 µrad
  • Load capacity to 50 kg
  • Option: Direct position measurement with angle measuring system
PRS-200 Precision Rotation Stage
Product Description Specifications Downloads Quote / Order

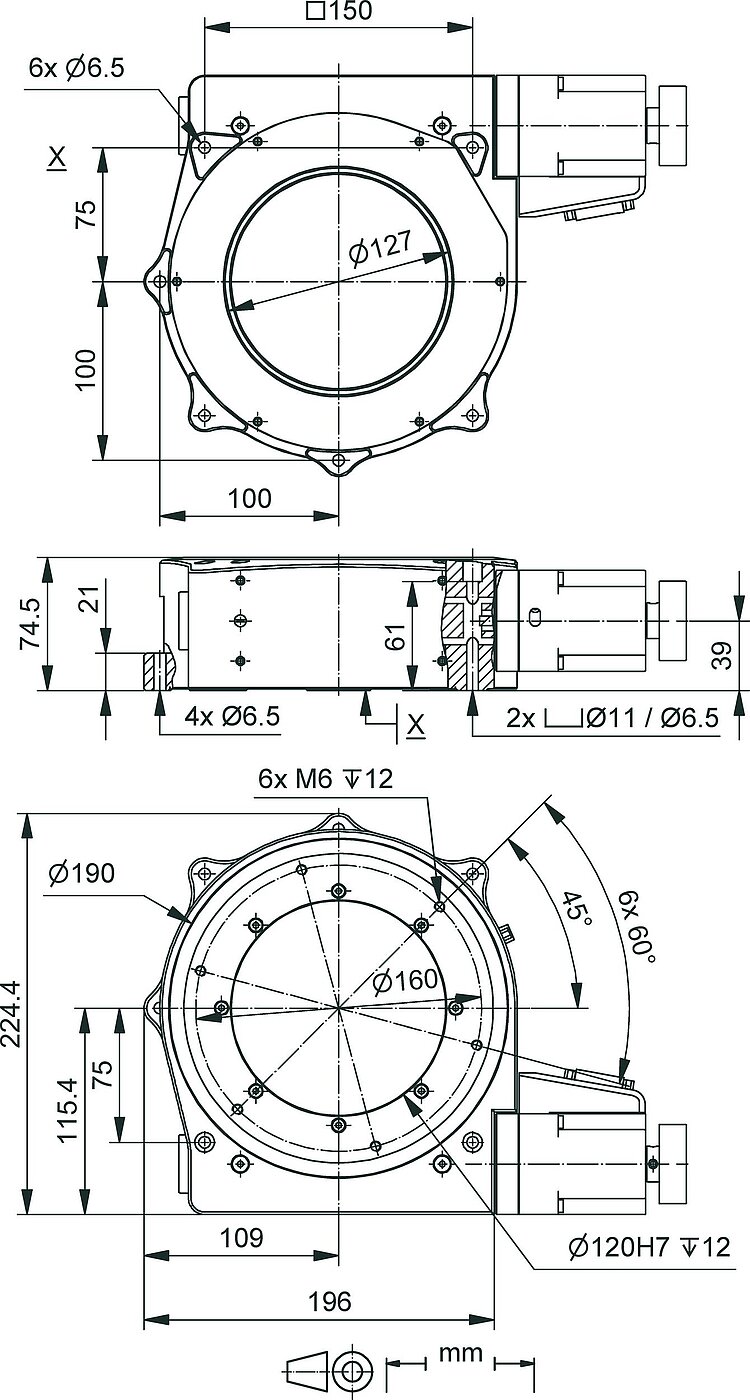

Reference-class rotation stage

Worm drive with high gear ratio for precision positioning. Excellent flatness and concentricity due to preloaded crossed roller bearings. Large aperture with 120 mm Ø. Two adjustable limit switches.

Versions

  • DC servo motor with rotary encoder on the motor shaft
  • Stepper motor
  • Option: High-resolution optical angle measuring system for direct position measuring

Option: Measurement of the travel accuracy and positioning accuracy

Individual measurement logs available on request for wobble, axial, and radial creep. Please specify when ordering.

Application fields

Medical industry. Sample inspection. Precision microassembly. Measuring technology. Photonics.
